STAND FOOTREST 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

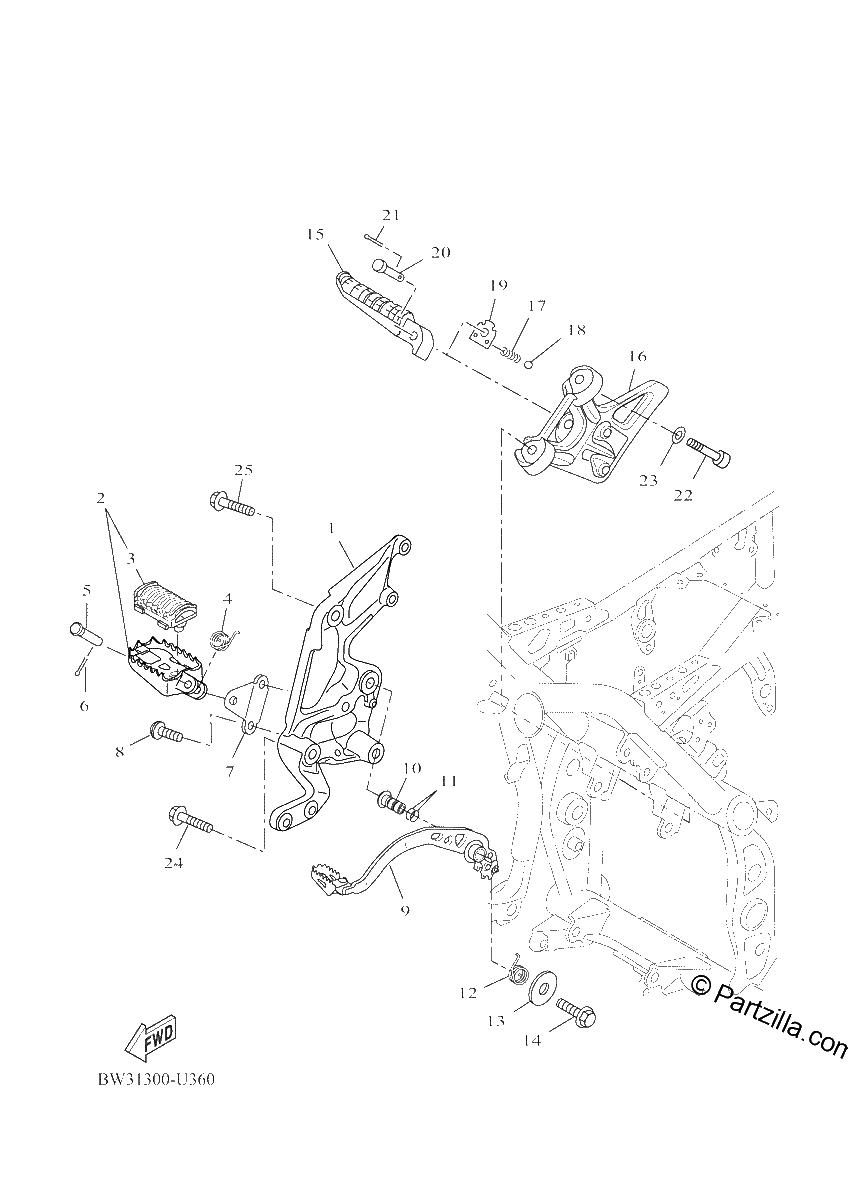

Diagrama de STAND FOOTREST 2

Repuestos

#1
BW3-F7443-00-00
BRACKET 3
$223.74¢111 872
1
#2
BW3-F7404-00-00
FOOTREST ASSY 2
$111.78¢55 890
1
#3
BW3-F7413-00-00
. .COVER, FOOTREST
$27.58¢13 789
1
#4
90508-20080-00
SPRING, TORSION
$2.53¢1 265
1
#5
91702-10045-00
PIN, CLEVIS
$5.42¢2 708
1
#6
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#7
3D7-21447-00-00
BRACKET, FOOTREST
$17.50¢8 752
1
#8
90149-10031-00
SCREW
$5.97¢2 984
1
#9
BW3-27200-01-00
PEDAL, BRAKE
$129.18¢64 590
1
#10
5YK-F7213-00-00
COLLAR
$9.68¢4 842
1
#11
93210-15414-00
O-RING
$6.32¢3 162
1
#12
5EL-27216-00-00
SPRING, RETURN
$7.23¢3 617
1
#13
90201-10028-00
WASHER, PLATE
$6.49¢3 243
1
#14
90105-10292-00
BOLT, FLANGE
$6.09¢3 048
1
#15
B5C-27441-00-00
FOOTREST, REAR 2
$15.21¢7 607
1
#16
BW3-F742L-00-00
BRACKET 5
$153.50¢76 751
1
#17
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#18
93501-04011-00
BALL
$6.87¢3 433
1
#19
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#20
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#21
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#22
91312-08040-00
. BOLT, HEXAGON SOCKET HEAD
$5.75¢2 875
1
#23
92902-08600-00
WASHER, plate
$2.54¢1 271
1
#24
95024-10045-00
BOLT, FLANGE
$7.44¢3 720
1
#25
90105-08063-00
BOLT, FLANGE
$7.59¢3 795
1
