REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

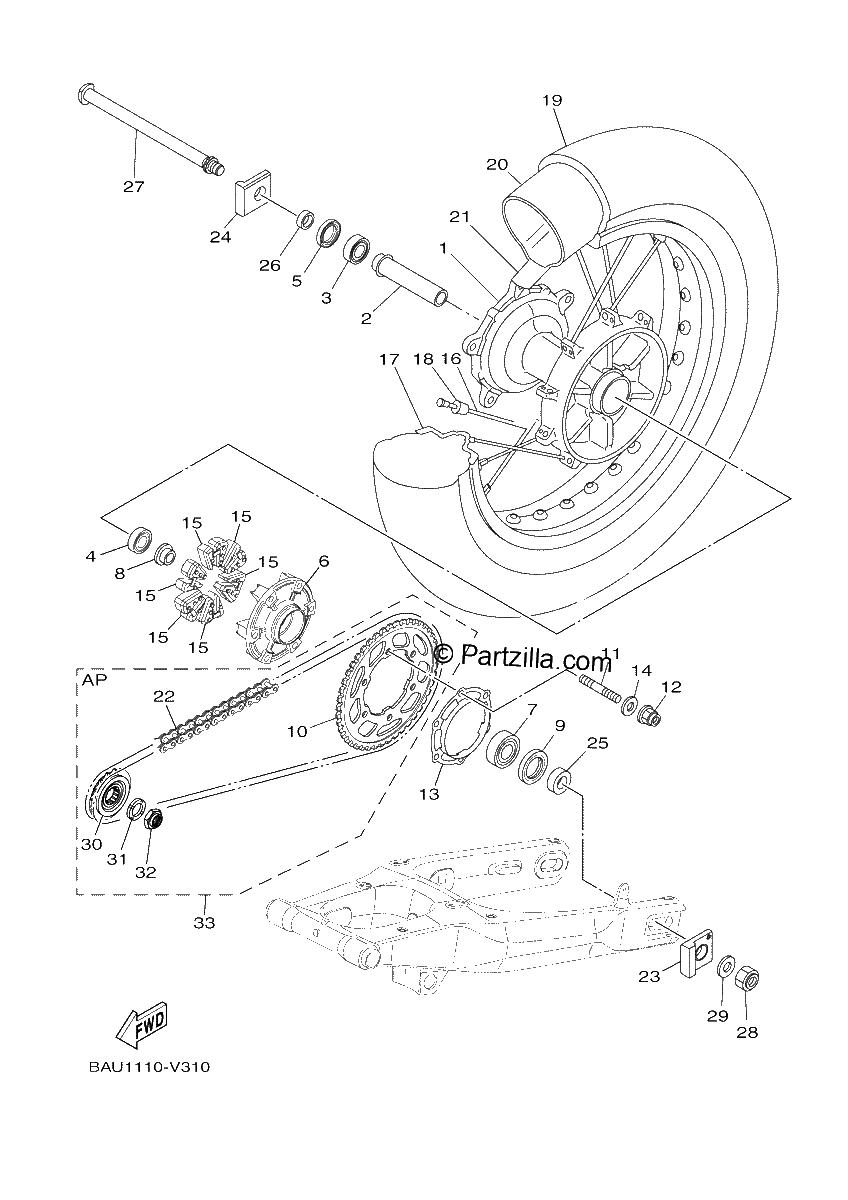

Diagrama de REAR WHEEL

Repuestos

#1
BW3-25311-00-00
HUB, REAR
$801.24¢400 619
1
#2
BW3-25317-00-00
SPACER, BEARING
$21.51¢10 756
1
#3
93306-20480-00
BEARING
$46.33¢23 163
1
#4
93306-00416-00
BEARING (B6004RS)
$43.72¢21 862
1
#5
93102-28022-00
OIL SEAL
$15.05¢7 525
1
#6
5JJ-25366-00-00
CLUTCH, HUB
$618.86¢309 431
1
#7
93306-205B5-00
BEARING
$42.19¢21 094
1
#8
1RC-25383-00-00
COLLAR, WHEEL
$33.49¢16 744
1
#9
93106-40013-00
OIL SEAL
$14.36¢7 181
1
#10
BW3-F5446-00-00
SPROCKET, DRIVEN (46T)
$179.01¢89 506
1
#11
90116-10048-00
BOLT, STUD
$27.17¢13 587
1
#12
90185-10011-00
NUT, SELF-LOCKING
$4.68¢2 338
1
#13
1WS-2537W-00-00
BRACKET 1
$22.69¢11 344
1
#14
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#15
5SL-25364-00-00
DAMPER
$43.49¢21 744
1
#16
BW3-F5304-00-00
SPOKE SET, REAR
$256.80¢128 400
1
#17
94440-18002-00
RIM
$867.43¢433 713
1
#18
BW3-25398-00-00
BALANCER, WHEEL
$7.50¢3 750
1
#21
94315-18X00-00
BAND, RIM (18-19)
$74.89¢37 444
1
#22
94582-49122-00
CHAIN (DID525V11 122LE)
$288.15¢144 075
1
#23
3SP-25388-00-00
PULLER, CHAIN 1
$60.88¢30 438
1
#24
1RC-25389-00-00
PULLER, CHAIN 2
$82.49¢41 244
1
#25
90387-20036-00
COLLAR
$23.52¢11 763
1
#26
90387-20035-00
COLLAR
$15.55¢7 775
1
#27
4FN-22141-00-00
SHAFT, PIVOT
$104.03¢52 013
1
#28
90185-18009-00
NUT, SELF-LOCKING
$18.90¢9 450
1
#29
90201-18013-00
WASHER, PLATE
$7.39¢3 694
1
#30
BW3-17460-00-00
SPROCKET, DRIVE (15T)
$79.19¢39 594
1
#31
90208-22002-00
WASHER, CONICAL SPRING
$19.99¢9 994
1
#32
90179-22018-00
NUT
$28.44¢14 219
1
#33
BAU-W001A-00-00
CHAIN & SPROCKET KIT
$495.26¢247 631
1
