INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

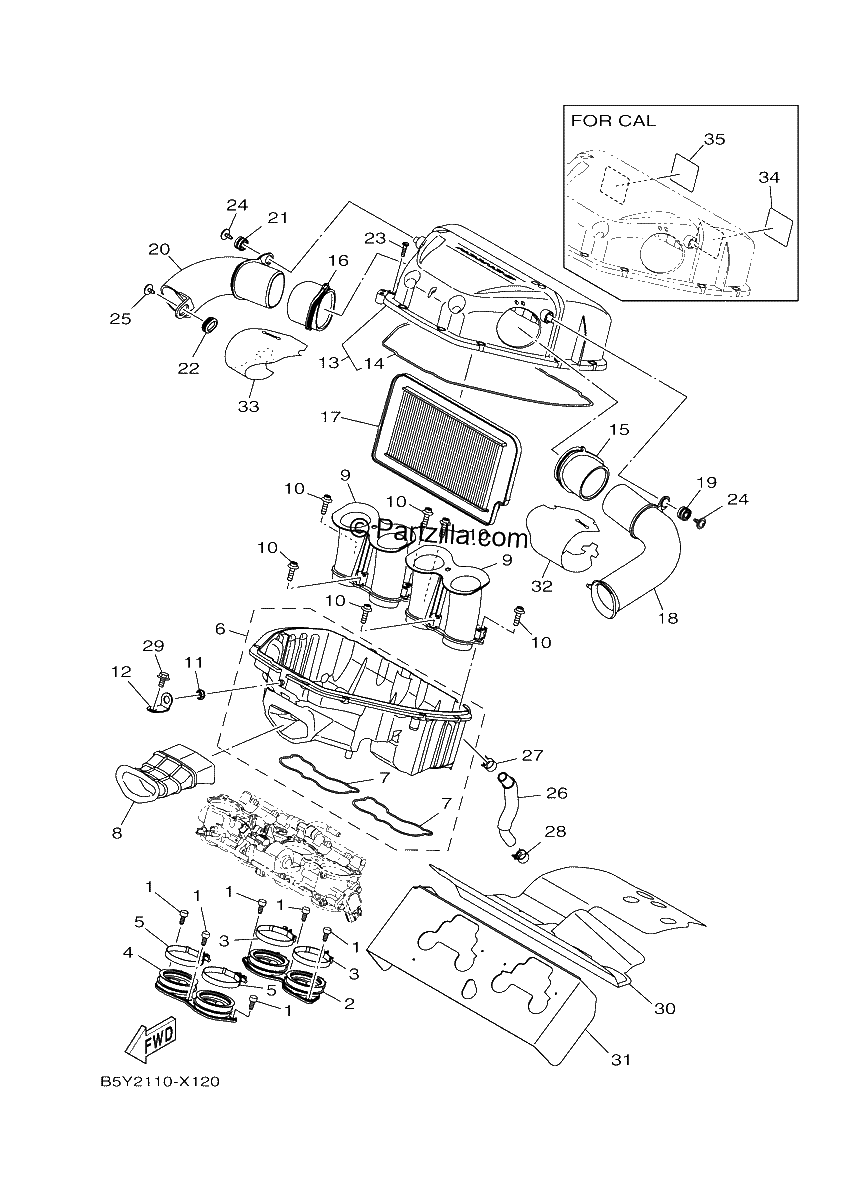

Diagrama de INTAKE

Repuestos

#1
90110-06168-00
BOLT, HEXAGON SOCKET HEAD
$5.20¢2 599
1
#2
2CR-13635-00-00
JOINT, INTAKE 1
$57.71¢28 853
1
#3
90450-60004-00
HOSE CLAMP ASSY
$16.09¢8 044
1
#4
2CR-13636-00-00
JOINT, INTAKE 2
$57.71¢28 853
1
#5
90450-60004-00
HOSE CLAMP ASSY
$16.09¢8 044
1
#6
B5Y-14411-00-00
CASE, AIR CLEANER 1
$127.79¢63 894
1
#7
2CR-14457-00-00
SEAL
$6.75¢3 375
1
#8
B5Y-1443L-00-00
DUCT, AIR
$61.28¢30 642
1
#9
B67-14469-01-00
FUNNEL, AIR
$51.31¢25 656
1
#10
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#11
90480-12010-00
GROMMET
$5.91¢2 956
1
#12
B67-14498-00-00
STAY 1
$6.64¢3 318
1
#13
B5Y-14421-00-00
CASE, AIR CLEANER 2
$136.25¢68 126
1
#14
B5Y-14452-00-00
SEAL
$21.47¢10 735
1
#15
B5Y-14453-00-00
JOINT, AIR CLEANER 1
$32.03¢16 014
1
#16
B5Y-14463-00-00
JOINT, AIR CLEANER 2
$32.07¢16 037
1
#17
B5Y-14451-00-00
ELEMENT, AIR CLEANER
$71.36¢35 679
1
#18
B5Y-14437-00-00
DUCT
$113.75¢56 873
1
#19
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#20
B5Y-1443A-00-00
DUCT
$80.66¢40 331
1
#21
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#22
B5Y-14435-00-00
GROMMET
$8.76¢4 382
1
#23
98907-05020-00
SCREW, BIND
$6.76¢3 381
1
#24
90167-05020-00
SCREW, TAPPING
$2.64¢1 322
1
#25
90164-05001-00
SCREW, TAPPING
$6.88¢3 439
1
#26
2CR-15393-00-00
PIPE, BREATHER 2
$14.78¢7 389
1
#27
90467-15001-00
CLIP
$6.49¢3 243
1
#28
90467-160A6-00
CLIP
$3.29¢1 644
1
#29
90119-06051-00
BOLT, WITH WASHER
$6.89¢3 444
1
#30
B5Y-12682-00-00
PROTECTOR, HEAT
$70.53¢35 265
1
#31
B3L-12683-00-00
PROTECTOR, HEAT
$38.93¢19 464
1
#32
B5Y-14417-00-00
COVER 1
$10.33¢5 164
1
#33
B5Y-14418-00-00
COVER 2
$11.67¢5 836
1
#34
14B-21684-01-00
PLATE, ROUTING *{FOR CAL}*
$2.53¢1 265
1
#35
B5Y-21686-00-00
PLATE, ROUTING 2 *{FOR CAL}*
$30.64¢15 318
1
