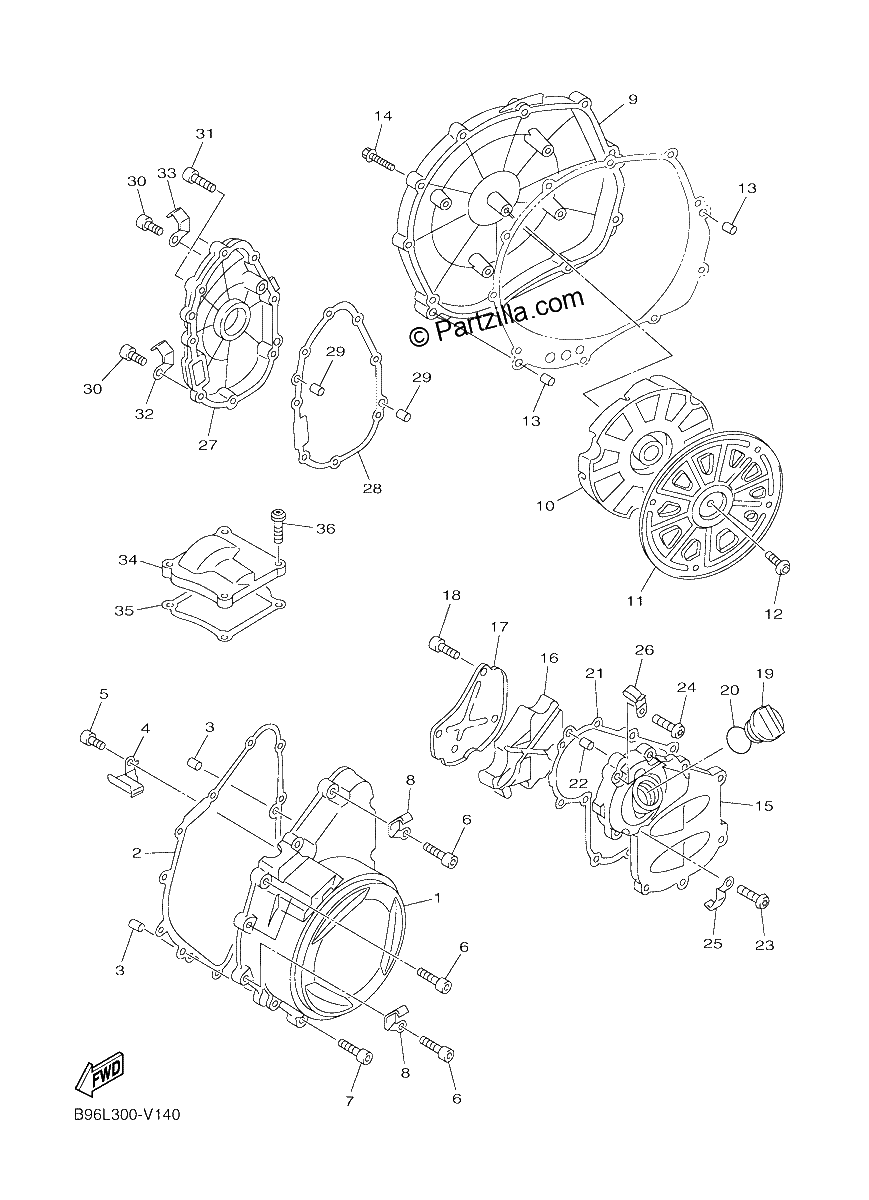

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$240.06¢120 031
#2
GASKET, CRANKCASE COVER 1
$30.18¢15 088
#3
PIN, DOWEL
$6.25¢3 125
#4
CLAMP 2
$13.39¢6 694
#5
BOLT, HEXAGON SOCKET HEAD
$8.24¢4 119
#6
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#7
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#8
CLAMP
$6.47¢3 238
#9
COVER, CRANKCASE 2
$103.80¢51 900
#10
DAMPER 2
$77.24¢38 619
#11
COVER
$46.57¢23 287
#12
BOLT,HEX. SOCKET BUTTON
$7.35¢3 675
#13
PIN, DOWEL
$2.03¢1 013
#14
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
#15
COVER, CRANKCASE 3
$102.44¢51 219
#16
DAMPER 1
$46.84¢23 419
#17
COVER, AIR CLEANER
$15.25¢7 625
#18
BOLT
$7.34¢3 669
#19
PLUG, OIL LEVEL
$22.93¢11 463
#20
O-Ring
$8.21¢4 106
#21
GASKET, CRANKCASE COVER 3
$11.70¢5 850
#22
PIN, DOWEL
$6.25¢3 125
#23
SCREW
$3.26¢1 631
#24
Screw
$3.26¢1 631
#25
CLAMP
$6.47¢3 238
#26
Clamp
$11.61¢5 806
#27
COVER, OIL PUMP
$163.45¢81 725
#28
GASKET, OIL PUMP COVER 1
$23.70¢11 850
#29
PIN, DOWEL
$6.25¢3 125
#30
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#31
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#32
CLAMP
$6.47¢3 238
#33
CLAMP
$5.06¢2 531
#34
COVER, GENERATOR 2
$12.76¢6 381
#35
GASKET, 2
$9.34¢4 669
#36
SCREW
$3.26¢1 631
