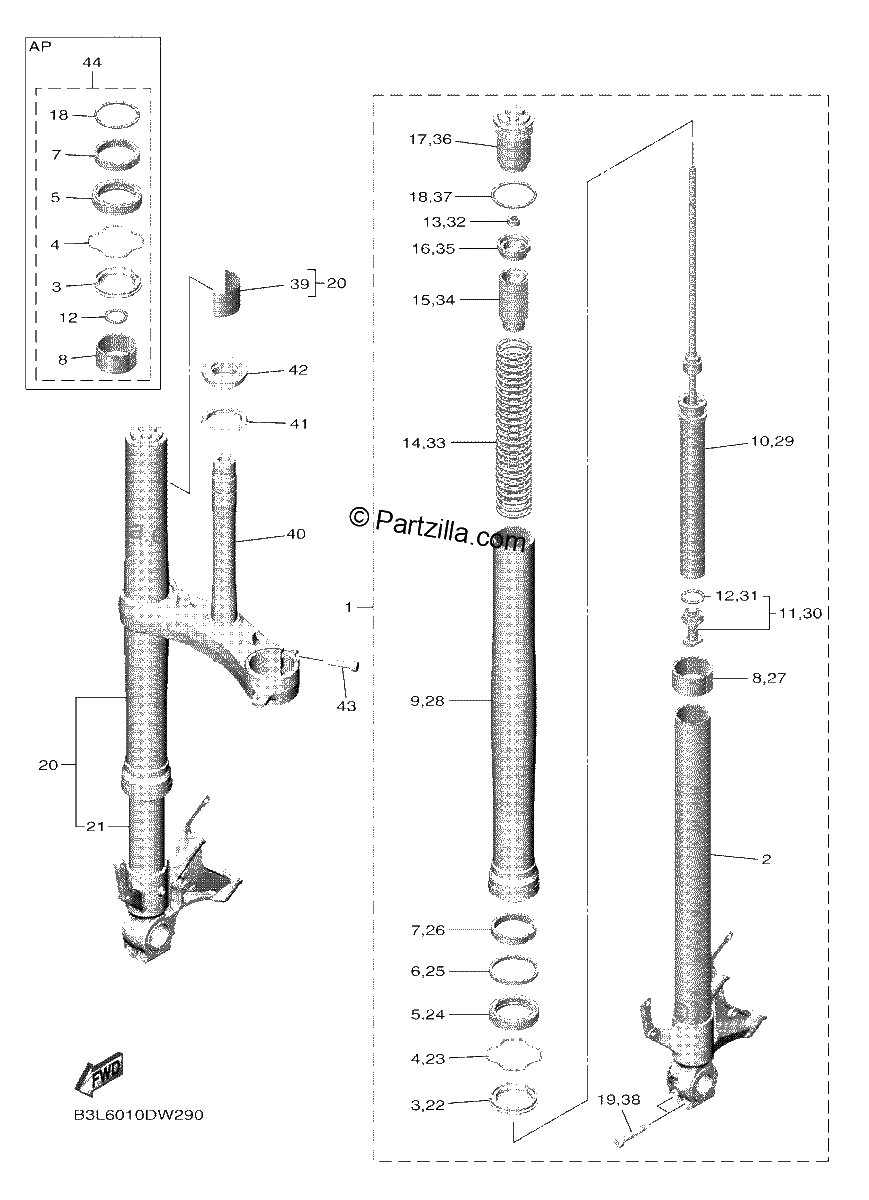

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1431.24¢715 619
#2
INNER TUBE COMP1
$501.44¢250 719
#3
SEAL, DUST
$24.02¢12 013
#4
RING, SNAP | (KYB)
$10.31¢5 156
#5
OIL SEAL
$24.99¢12 494
#6
WASHER, OIL SEAL
$18.90¢9 450
#7
METAL, SLIDE 1
$11.39¢5 694
#8
PISTON, FRONT FORK
$27.70¢13 850
#9
TUBE, OUTER 2 | UR FOR DPBMC
$353.70¢176 850
#10
CYLINDER COMP., front fork
$415.99¢207 994
#11
VALVE COMP.
$217.84¢108 919
#12
. . O-Ring
$2.97¢1 487
#13
NUT
$7.91¢3 956
#14
SPRING, FRONT FORK
$34.13¢17 063
#15
SPACER
$12.72¢6 363
#16
GUIDE, SPRING
$13.13¢6 563
#17
BOLT, cap
$365.74¢182 869
#18
O-RING
$8.21¢4 106
#19
BOLT (3JP)
$6.25¢3 125
#20
FRONT FORK ASSY (R.H)
$1431.24¢715 619
#21
INNER TUBE COMP2
$501.44¢250 719
#22
SEAL, DUST
$24.02¢12 013
#23
RING, SNAP | (KYB)
$10.31¢5 156
#24
OIL SEAL
$24.99¢12 494
#25
WASHER, OIL SEAL
$18.90¢9 450
#26
METAL, SLIDE 1
$11.39¢5 694
#27
PISTON, FRONT FORK
$27.70¢13 850
#28
TUBE, OUTER 2 | UR FOR DPBMC
$353.70¢176 850
#29
CYLINDER COMP., front fork
$415.99¢207 994
#30
VALVE COMP.
$217.84¢108 919
#31
. . O-Ring
$2.97¢1 487
#32
NUT
$7.91¢3 956
#33
SPRING, FRONT FORK
$34.13¢17 063
#34
SPACER
$12.72¢6 363
#35
GUIDE, SPRING
$13.13¢6 563
#36
BOLT, cap
$365.74¢182 869
#37
O-RING
$8.21¢4 106
#38
BOLT (3JP)
$6.25¢3 125
#39
PROTECTOR
$14.59¢7 294
#40
UNDER BRACKET COMP.
$690.02¢345 013
#41
SEAL, STEERING
$25.53¢12 763
#42
BEARING
$72.81¢36 406
#43
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#44
FORK SEAL KIT
$68.89¢34 444
