ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

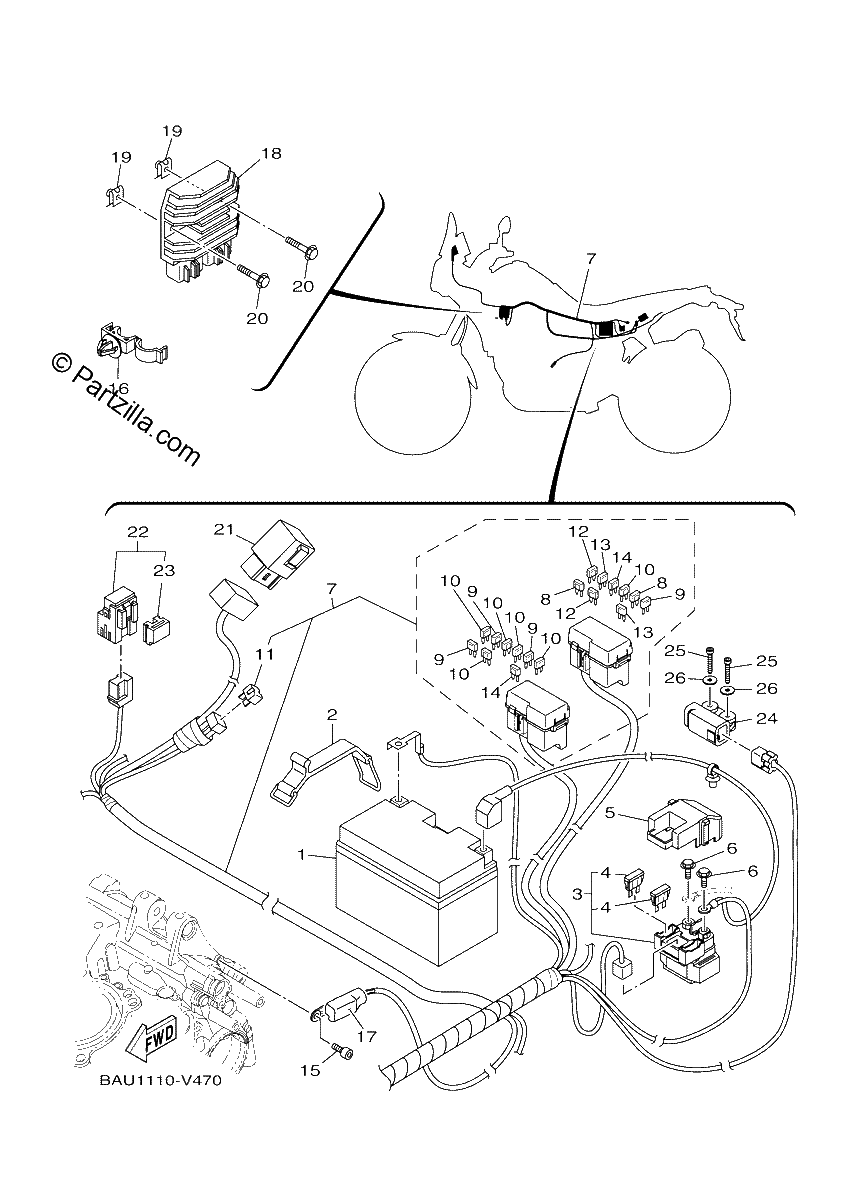

Diagrama de ELECTRICAL 1

Repuestos

#1
5VY-82100-01-00
BATTERY ASSY (YUASA YTZ10S)
$297.68¢148 839
1
#2
4BP-82131-00-00
BAND,BATTERY
$17.63¢8 815
1
#3
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$62.64¢31 320
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#5
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#6
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#7
BEH-82590-10-00
WIRE HARNESS ASSY
$1363.89¢681 944
1
#8
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#9
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#10
5JJ-82151-30-00
. FUSE (10A-BL)
$7.58¢3 789
1
#11
3WP-81980-00-00
RECTIFIER 2
$20.65¢10 327
1
#12
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#13
5JJ-82151-60-00
FUSE (30A-BL)
$7.01¢3 507
1
#14
5JJ-82151-10-00
. FUSE (15A-BL)
$4.08¢2 041
1
#15
91380-06012-00
BOLT
$2.05¢1 023
1
#16
90464-17003-00
Clamp
$3.39¢1 696
1
#17
1WS-81916-00-00
COVER, TERMINAL
$4.80¢2 398
1
#18
1D7-81960-10-00
RECTIFIER & REGULATOR ASSY
$239.15¢119 577
1
#19
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#20
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#21
5VK-81950-31-00
RELAY ASSY (replaces 5VK-81950-30-00)
$58.82¢29 411
1
#22
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#23
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#24
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#25
91312-04025-00
BOLT
$1.69¢845
1
#26
90201-04030-00
WASHER, PLATE
$1.66¢828
1
