COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

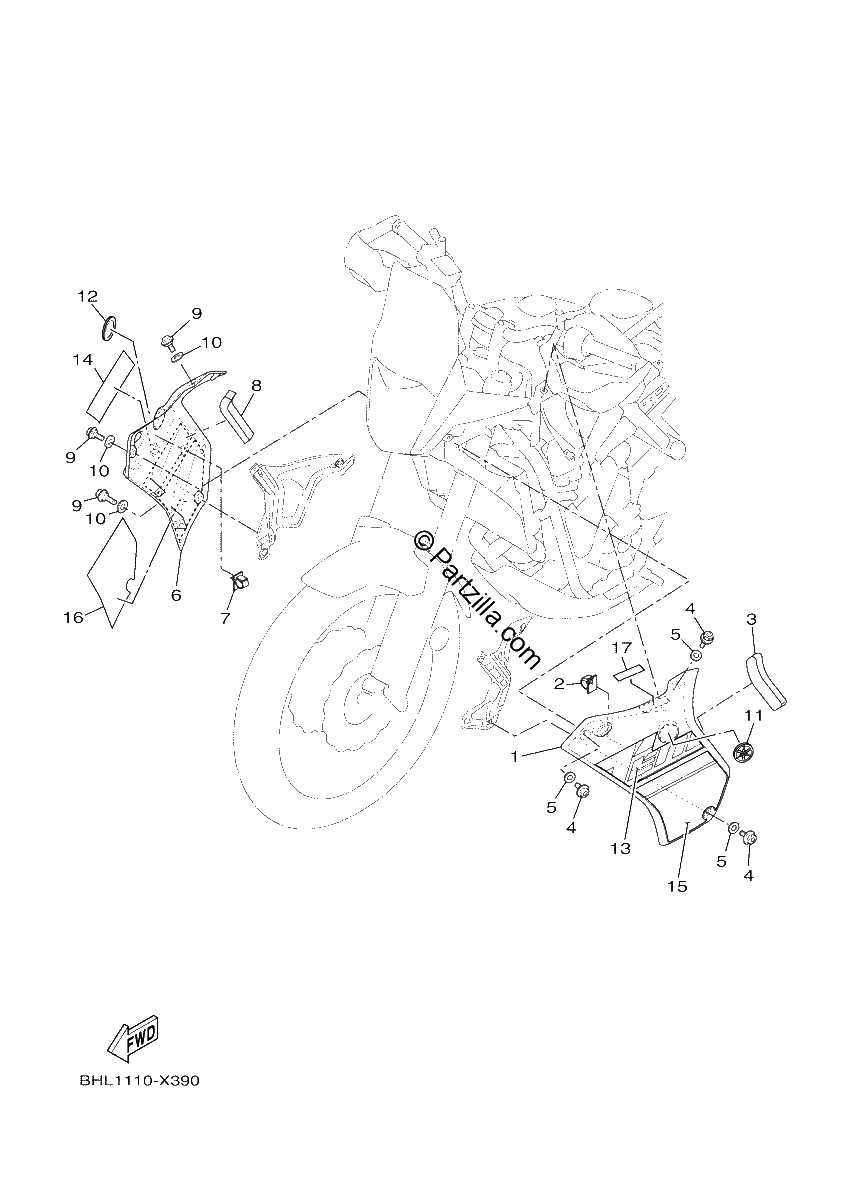

Diagrama de COWLING 2

Repuestos

#1
BAU-2835U-00-P4
PANEL 1 (DEEP PURPLISH BLUE METALLIC C)
$401.41¢200 704
1
#2
90464-62085-00
CLAMP
$6.59¢3 295
1
#3
90520-15X01-00
DAMPER, PLATE
$12.14¢6 072
1
#4
90149-05042-00
SCREW
$3.06¢1 529
1
#5
90202-08006-00
WASHER, PLATE
$1.91¢954
1
#6
BAU-2835V-00-P4
PANEL 2 (DEEP PURPLISH BLUE METALLIC C)
$310.62¢155 308
1
#7
90464-62085-00
CLAMP
$6.59¢3 295
1
#8
90520-15X01-00
DAMPER, PLATE
$12.14¢6 072
1
#9
90149-05042-00
SCREW
$3.06¢1 529
1
#10
90202-08006-00
WASHER, PLATE
$1.91¢954
1
#11
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#12
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#13
BHL-28391-00-00
GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
$59.03¢29 515
1
#14
BHL-28392-00-00
GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
$48.40¢24 202
1
#15
BHL-28393-00-00
GRAPHIC 3 (DEEP PURPLISH BLUE METALLIC C)
$93.89¢46 943
1
#16
BHL-28394-00-00
GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C)
$60.89¢30 446
1
#17
8ET-2815K-01-00
LABEL, NOTICE WINDSHIELD 1
$7.06¢3 530
1
