STEERING HANDLE CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

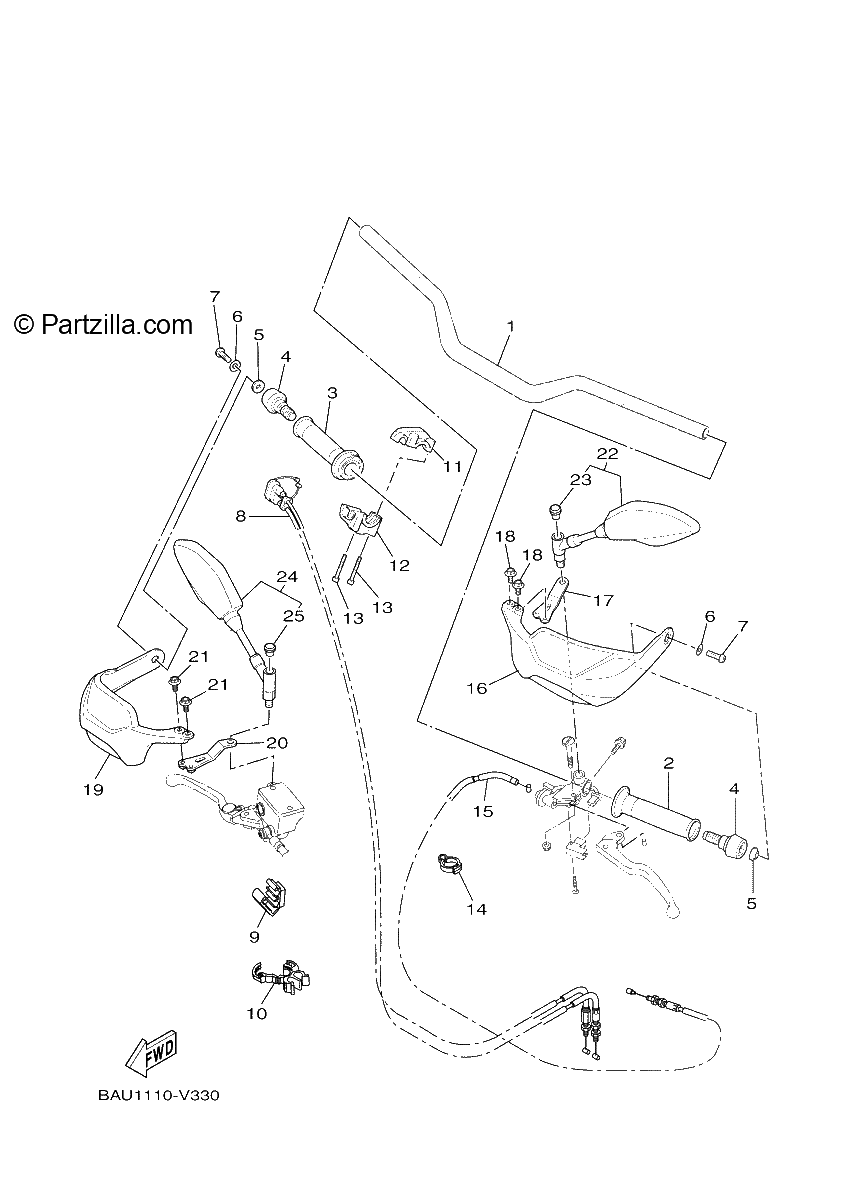

Diagrama de STEERING HANDLE CABLE

Repuestos

#1
BW3-F6111-00-00
HANDLEBAR
$181.84¢90 919
1
#2
BEH-F6241-00-00
GRIP
$27.47¢13 737
1
#3
BEH-F6240-00-00
GRIP ASSY
$48.14¢24 069
1
#4
2BS-26246-00-00
END, GRIP
$76.14¢38 071
1
#5
90387-08089-00
COLLAR
$7.38¢3 691
1
#6
90201-086P8-00
WASHER, plate
$4.77¢2 386
1
#7
92012-08025-00
BOLT, BUTTON HEAD
$6.30¢3 151
1
#8
BW3-F6301-00-00
THROTTLE CABLE ASSY
$53.41¢26 703
1
#9
39P-2627E-00-00
CLAMP,WIRE
$5.06¢2 530
1
#10
90464-16023-00
CLAMP
$3.24¢1 621
1
#11
1WS-26281-00-00
CAP, GRIP UPPER
$11.38¢5 693
1
#12
1WS-26282-00-00
CAP, GRIP UNDER
$13.48¢6 739
1
#13
91317-05040-00
bolt
$2.14¢1 070
1
#14
90464-18004-00
Clamp
$4.80¢2 398
1
#15
BW3-F6335-00-00
WIRE, CLUTCH
$50.40¢25 202
1
#16
BW3-F6141-00-00
GUARD, BRUSH 1
$27.58¢13 789
1
#17
BW3-F6223-00-00
BRACKET, HANDLE 1
$29.70¢14 852
1
#18
90149-05045-00
SCREW
$4.81¢2 403
1
#19
BW3-F6142-00-00
GUARD, BRUSH 2
$27.58¢13 789
1
#20
BW3-F622A-00-00
BRACKET, HANDLE 3
$34.19¢17 095
1
#21
90149-05045-00
SCREW
$4.81¢2 403
1
#22
BHL-26280-00-00
REAR VIEW MIRROR ASSY (LEFT)
$93.12¢46 558
1
#23
5PS-26133-20-00
CAP
$5.86¢2 932
1
#24
BHL-26290-00-00
REAR VIEW MIRROR ASSY (RIGHT)
$93.12¢46 558
1
#25
5PS-26133-20-00
CAP
$5.86¢2 932
1
