TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

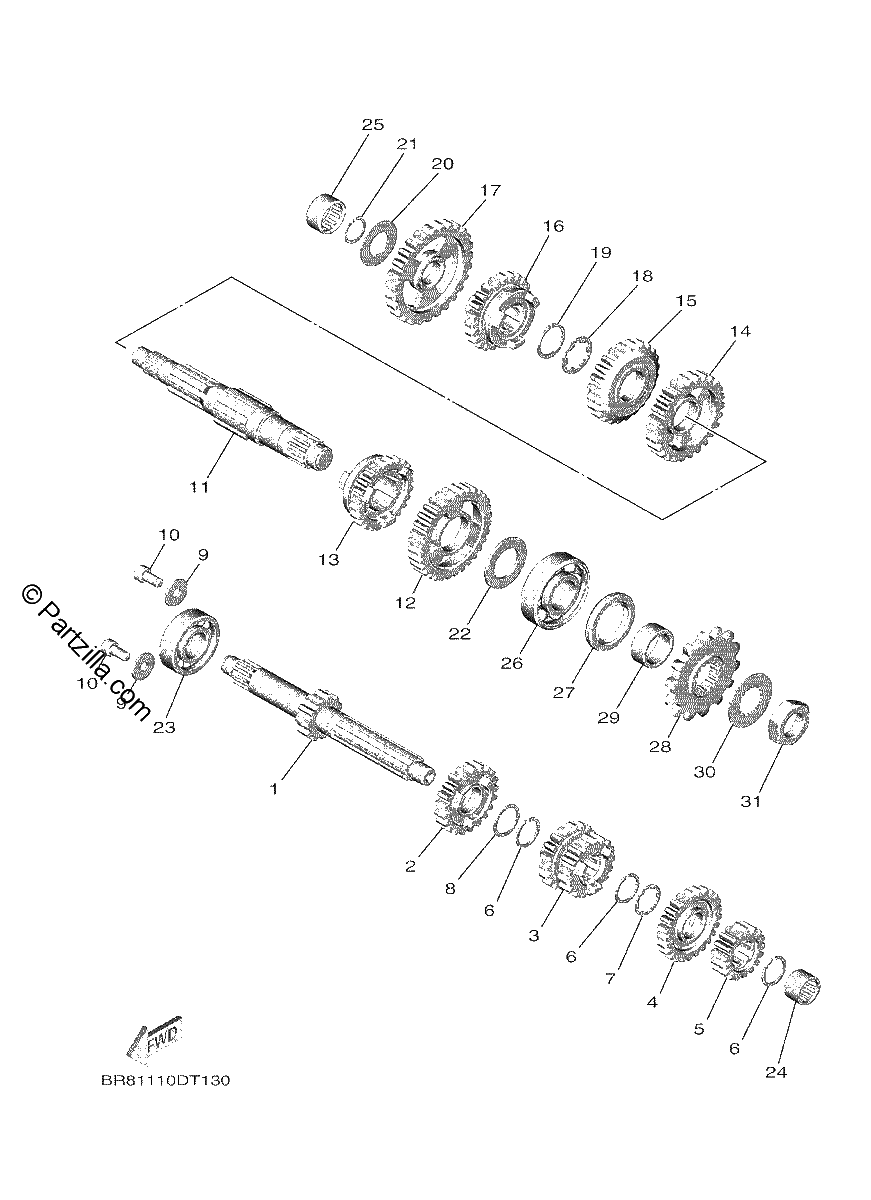

Diagrama de TRANSMISSION

Repuestos

#1
5PA-17411-00-00
AXLE, MAIN (11T)
$200.70¢100 350
1
#2
BR8-17151-00-00
GEAR, 5TH PINION (21T)
$56.57¢28 287
1
#3
BR8-17131-00-00
GEAR, 3RD PINION (17T)
$174.53¢87 263
1
#4
BR8-17161-00-00
GEAR, 6TH PINION (25T)
$57.86¢28 931
1
#5
4ES-17121-01-00
GEAR, 2ND PINION (17T)
$49.79¢24 894
1
#6
93440-17064-00
CIRCLIP
$7.60¢3 800
1
#7
90209-14008-00
WASHER
$5.21¢2 606
1
#8
90201-17545-00
WASHER, PLATE
$7.94¢3 969
1
#9
90201-06060-00
WASHER, PLATE
$7.48¢3 738
1
#10
90110-06182-00
BOLT
$7.34¢3 669
1
#11
BR8-17421-00-00
Axle, Drive
$153.01¢76 506
1
#12
1SN-17221-00-00
GEAR, 2ND WHEEL (32T)
$91.25¢45 625
1
#13
BR8-17261-00-00
GEAR, 6TH WHEEL (24T)
$64.47¢32 237
1
#14
4ES-17231-20-00
GEAR, 3RD WHEEL (26T)
$55.77¢27 888
1
#15
BR8-17241-00-00
GEAR, 4TH WHEEL (24T)
$52.33¢26 163
1
#16
BR8-17251-00-00
GEAR, 5TH WHEEL (23T)
$52.06¢26 031
1
#17
BR8-17211-00-00
GEAR, 1ST WHEEL (27T)
$59.60¢29 800
1
#18
90209-16209-00
WASHER
$7.39¢3 694
1
#19
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#20
164-17427-00-06
SHIM 1 (T=0.6) | UR
$6.35¢3 175
1
#20
164-17427-00-08
SHIM 1 (T=0.8) | UR
$7.79¢3 894
1
#20
164-17427-00-10
SHIM 1 (T=1.0) | UR
$6.52¢3 262
1
#21
93440-15012-00
CIRCLIP
$7.34¢3 669
1
#22
90201-20611-00
WASHER, PLATE
$8.69¢4 344
1
#23
93306-20333-00
BEARING
$38.75¢19 375
1
#24
93317-11245-00
BEARING
$35.09¢17 544
1
#25
93315-31502-00
BEARING
$37.81¢18 906
1
#26
93306-20401-00
BEARING
$40.93¢20 463
1
#27
93102-26042-00
OIL SEAL
$5.01¢2 506
1
#28
9381A-14243-00
SPROCKET, DRIVE (14T)
$51.88¢25 938
1
#29
90387-202A0-00
COLLAR
$22.13¢11 063
1
#30
90215-20261-00
WASHER, LOCK
$7.88¢3 938
1
#31
90179-16016-00
Nut
$16.38¢8 188
1
