3 MAINTENANCE PARTS KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

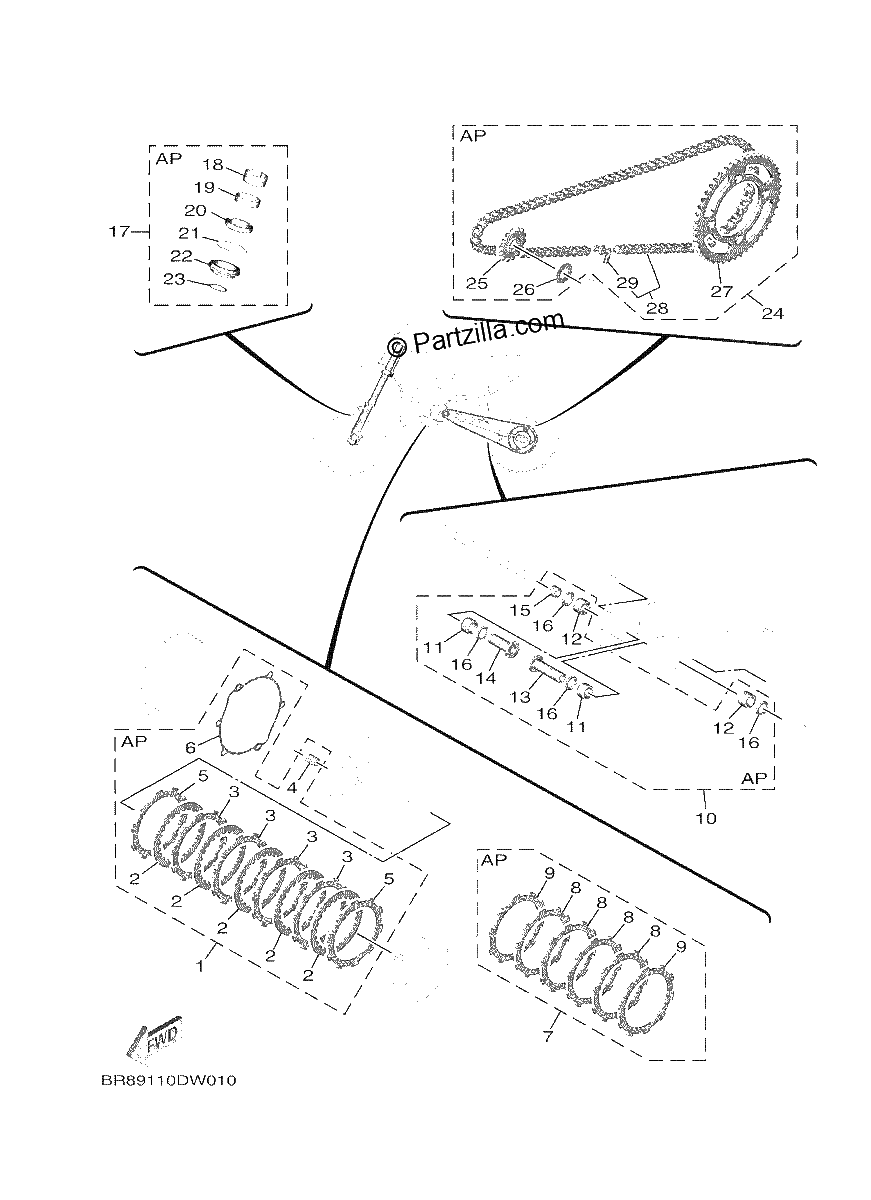

Diagrama de 3 MAINTENANCE PARTS KIT

Repuestos

#1
BR8-W001G-00-00
Clutch Plate Kit
$154.89¢77 444
1
#2
131-16324-00-00
PLATE, CLUTCH 1
$22.59¢11 294
1
#3
4ES-16321-00-00
PLATE, FRICTION
$18.90¢9 450
1
#4
90501-204A0-00
SPRING, COMPRESSION
$7.34¢3 669
1
#5
21V-16321-00-00
. PLATE, FRICTION
$20.60¢10 300
1
#6
5PA-15463-00-00
GASKET, 2
$13.27¢6 637
1
#7
BR8-W001M-00-00
FRICTION PLATE KIT
$80.84¢40 419
1
#8
4ES-16321-00-00
PLATE, FRICTION
$18.90¢9 450
1
#9
21V-16321-00-00
. PLATE, FRICTION
$20.60¢10 300
1
#10
1SN-W002C-00-00
SWING ARM PIVOT BEARING KIT
$125.26¢62 631
1
#11
90385-17042-00
BUSH
$22.69¢11 344
1
#12
93317-21746-00
BEARING
$35.45¢17 725
1
#13
90387-127J8-00
COLLAR
$37.91¢18 956
1
#14
90387-127J7-00
COLLAR
$32.20¢16 100
1
#15
90387-1200U-00
COLLAR
$19.64¢9 819
1
#16
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#17
BR8-W003B-00-00
FORK SEALS KIT
$63.74¢31 869
1
#18
5PA-23171-00-00
PISTON, FRONT FORK
$32.14¢16 069
1
#19
5PA-23125-00-00
METAL, SLIDE 1
$15.11¢7 556
1
#20
4ES-23145-00-00
OIL SEAL
$22.13¢11 063
1
#21
4A1-23156-00-00
RING, SNAP
$5.66¢2 831
1
#22
4ES-23144-00-00
SEAL, DUST
$23.24¢11 619
1
#23
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#24
BR8-W001A-10-00
CHAIN & SPROCKET KIT
$219.63¢109 813
1
#25
9381A-14243-00
SPROCKET, DRIVE (14T)
$51.88¢25 938
1
#26
90215-20261-00
WASHER, LOCK
$7.88¢3 938
1
#27
BR8-25447-00-00
SPROCKET, DRIVEN (47T)
$97.49¢48 744
1
#28
9Y582-48113-00
CHAIN
$63.27¢31 638
1
#29
94682-48001-00
JOINT, CHAIN
$4.92¢2 463
1
