INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

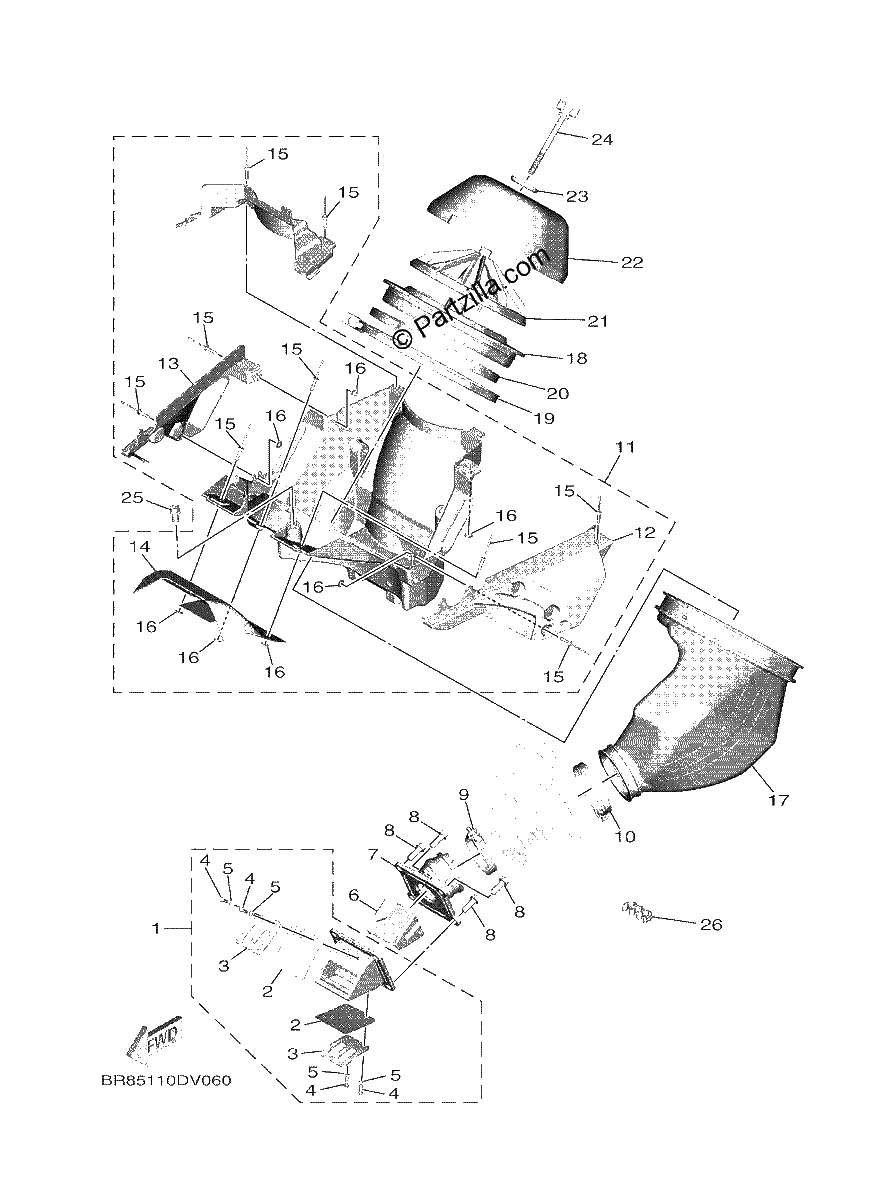

Diagrama de INTAKE

Repuestos

#1
BR8-13610-00-00
Reed Valve Assy
$101.84¢50 922
1
#2
BR8-13613-00-00
REED, VALVE
$10.45¢5 227
1
#3
4ES-13616-00-00
STOPPER, REED VALVE
$13.82¢6 911
1
#4
98502-03006-00
. SCREW, PAN HEAD
$7.58¢3 789
1
#5
92902-03100-00
. WASHER
$6.75¢3 375
1
#6
BR8-13625-00-00
SPACER, REED VALVE
$14.81¢7 406
1
#7
BR8-13565-00-00
JOINT, carburetor
$50.60¢25 300
1
#8
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.75¢374
1
#9
4TR-13474-02-00
BAND (replaces 4TR-13474-01-00)
$10.44¢5 221
1
#10
90450-56004-00
HOSE CLAMP ASSY
$16.18¢8 090
1
#11
BR8-14401-01-00
AIR CLEANER CASE ASSY
$75.35¢37 674
1
#12
BR8-1441A-00-00
COVER, CLEANER CASE 1
$10.95¢5 474
1
#13
BR8-1441E-00-00
COVER, CLEANER CASE 2
$6.46¢3 231
1
#14
BR8-14417-01-00
. .COVER 1
$11.29¢5 647
1
#15
90267-32196-00
Rivet, Blind
$0.98¢489
1
#16
90201-03313-00
WASHER, PLATE
$7.01¢3 507
1
#17
BR8-14453-01-00
JOINT, AIR CLEANER 1
$81.07¢40 537
1
#18
BR8-14459-00-00
Holder, Guide
$19.52¢9 758
1
#19
BR8-14455-00-00
BAND
$36.96¢18 481
1
#20
BR8-14442-00-00
SPACER
$6.19¢3 093
1
#21
BR8-14458-00-00
Guide
$12.07¢6 038
1
#22
BR8-14451-01-00
ELEMENT, AIR CLEANER
$43.11¢21 557
1
#23
90209-06096-00
WASHER
$7.19¢3 594
1
#24
90122-06005-00
BOLT, WING
$7.53¢3 766
1
#25
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$0.99¢494
1
#26
90464-07M05-00
CLAMP
$3.29¢1 644
1
