ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

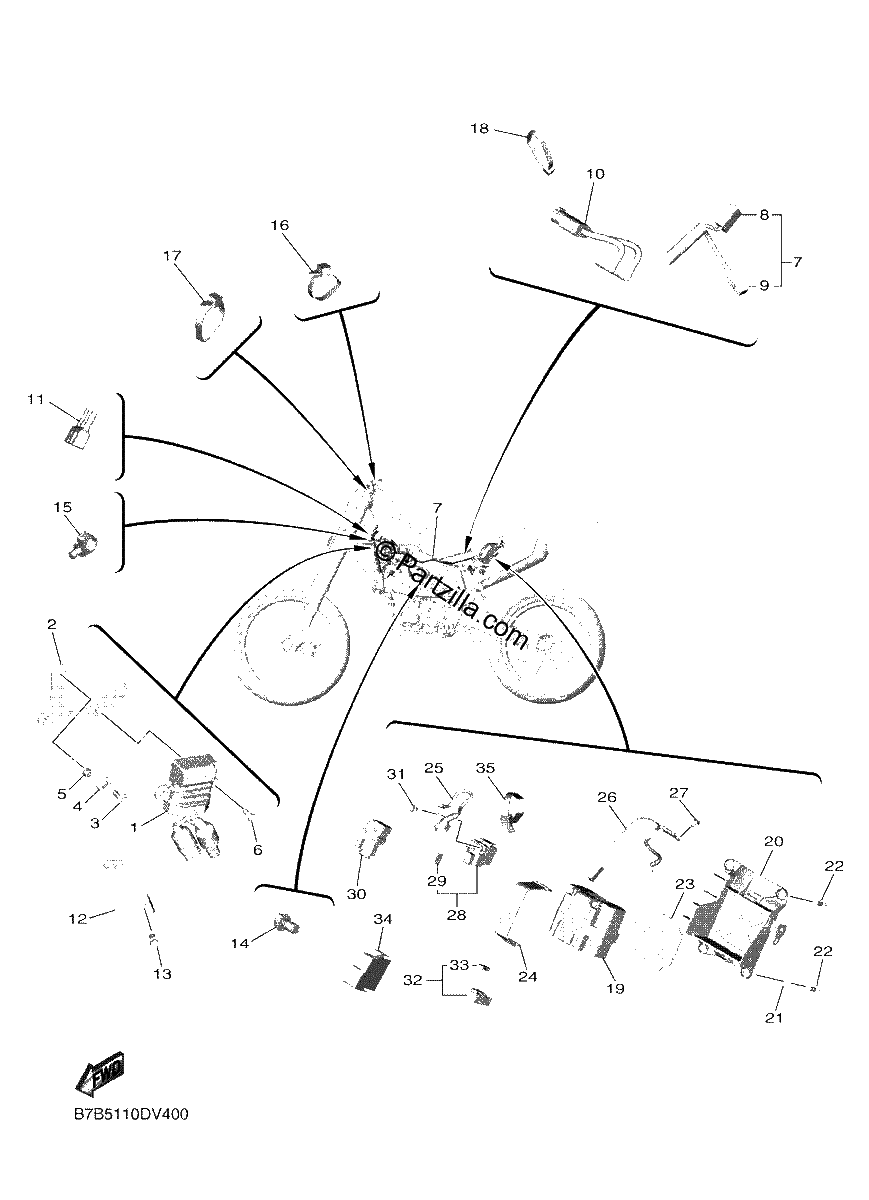

Diagrama de ELECTRICAL 2

Repuestos

#1
B7B-81960-00-00
RECTIFIER & REGULATOR ASSY
$147.90¢73 951
1
#2
B7B-21287-00-00
BRACKET, REGULATOR
$13.42¢6 710
1
#3
90105-06219-00
Bolt, Flange
$1.99¢995
1
#4
90480-13025-00
Grommet
$3.48¢1 742
1
#5
90387-066J9-00
COLLAR
$8.18¢4 088
1
#6
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#7
B7B-82590-20-00
WIRE HARNESS ASSY
$416.17¢208 087
1
#8
4WA-81980-00-00
DIODE ASSY
$28.45¢14 225
1
#9
3WP-81980-00-00
RECTIFIER 2
$20.65¢10 327
1
#10
1SL-82309-00-00
WIRE, SUB LEAD
$28.22¢14 110
1
#11
33D-82378-00-00
Connector
$17.01¢8 504
1
#12
B7B-82388-00-00
PLATE
$8.96¢4 479
1
#13
90105-06110-00
Bolt, Flange
$6.87¢3 433
1
#14
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#15
90464-17003-00
Clamp
$3.39¢1 696
1
#16
90464-13077-00
CLAMP
$7.30¢3 651
1
#17
90464-13073-00
Clamp
$3.04¢1 518
1
#18
1UA-82591-00-00
BAND
$4.52¢2 260
1
#19
BR9-82100-49-00
BATTERY ASSY (replaces BR9-82100-00-00)
No Disponible
1
#20
BR9-82128-00-00
BRACKET, BATTERY
$62.99¢31 493
1
#21
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#22
90119-06133-00
BOLT, WITH WASHER
$5.16¢2 582
1
#23
BR9-82176-00-00
Damper
$5.45¢2 726
1
#24
8CY-82131-00-00
BAND, BATTERY
$11.24¢5 618
1
#25
BR9-82115-00-00
WIRE, plus lead
$27.57¢13 783
1
#26
BR9-82116-00-00
WIRE, MINUS LEAD
$20.67¢10 333
1
#27
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#28
2GB-81940-00-00
STARTER RELAY ASSY (RC19-102B)
$49.59¢24 794
1
#29
36Y-82151-00-00
Fuse (15 Amp)
$4.45¢2 225
1
#30
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#31
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#32
1ST-81950-00-00
RELAY ASSY (1ST-00)
$16.38¢8 188
1
#33
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#34
B7R-8246B-00-00
COVER 1
$23.94¢11 971
1
#35
90465-10098-00
CLAMP
$2.55¢1 277
1
