ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

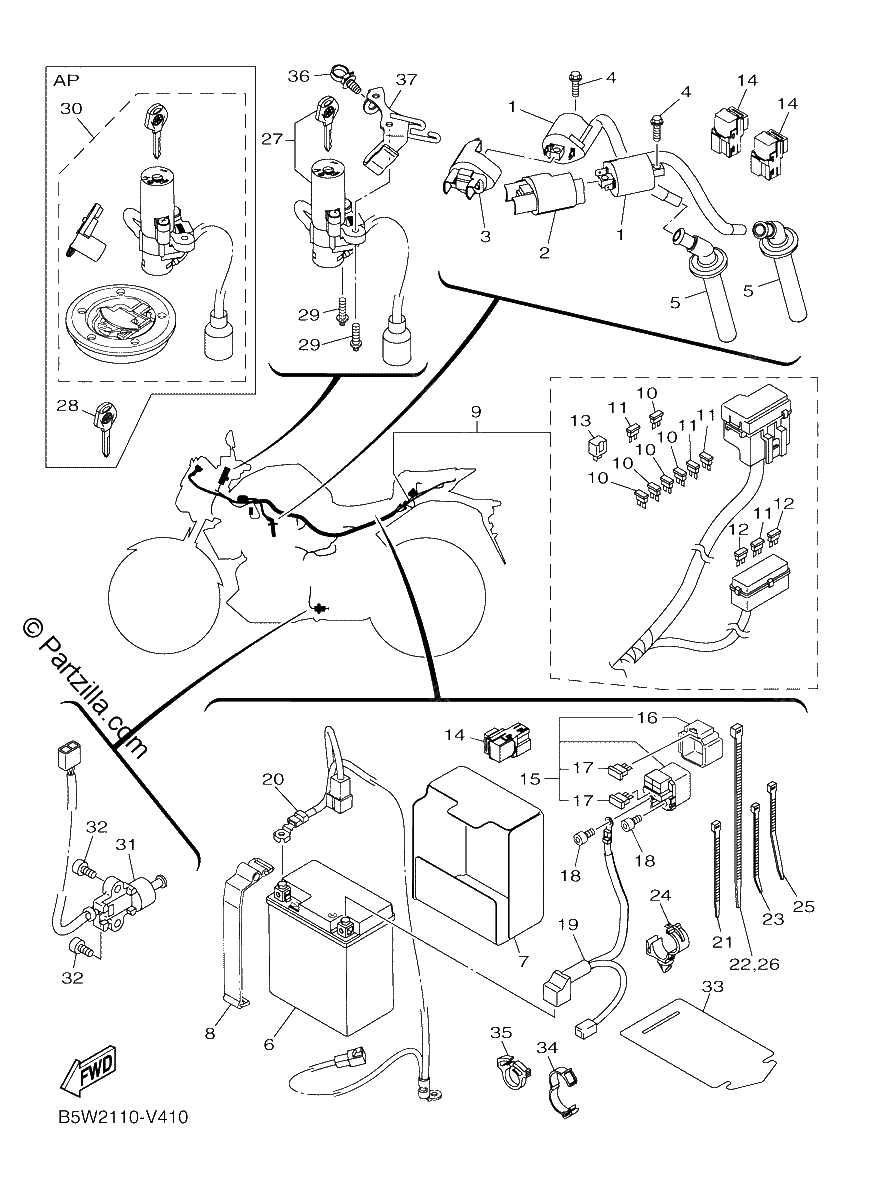

Diagrama de ELECTRICAL 1

Repuestos

#1
1WD-H2310-00-00
IGNITION COIL ASSY
$27.73¢13 863
1
#2
B9T-H2314-00-00
COVER, IGNITION CO
$4.16¢2 081
1
#3
B9T-H2314-10-00
COVER, IGNITION CO
$4.16¢2 081
1
#4
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#5
1WD-H2370-00-00
PLUG CAP ASSY
$49.16¢24 581
1
#6
GTZ-8V000-00-00
BATTERY (GSGTZ8V) in.
$113.47¢56 738
1
#7
1WD-H2121-00-00
PAD, BATTERY
$12.24¢6 119
1
#8
1WD-H2131-00-00
BAND, BATTERY
$9.31¢4 656
1
#9
B5W-H2590-10-00
WIRE HARNESS ASSY
$521.84¢260 919
1
#10
1WD-H2151-20-00
FUSE (7.5A BL)
No Disponible
1
#11
1WD-H2151-10-00
FUSE (15A-BL)
$12.24¢6 119
1
#12
1WD-H2151-30-00
Fuse
$3.16¢1 581
1
#13
4B4-H1980-00-00
DIODE ASSY
$41.95¢20 975
1
#14
1WD-H1950-00-00
RELAY ASSY
$57.53¢28 763
1
#15
1WD-H1940-00-00
STARTER RELAY ASSY
$35.92¢17 963
1
#16
1WD-H2155-00-00
BAND
$2.42¢1 213
1
#17
1WD-H2151-01-00
FUSE (30A-BL) (replaces 1WD-H2151-00-00)
$0.84¢419
1
#18
91312-05008-00
BOLT
$6.19¢3 094
1
#19
2WD-H2115-00-00
WIRE, plus lead
$18.54¢9 269
1
#20
B5W-H2116-00-00
WIRE, MINUS LEAD
$28.30¢14 150
1
#21
90464-36800-00
CLAMP
$4.91¢2 456
1
#22
90464-70800-00
CLAMP
$1.06¢531
1
#23
90464-22800-00
CLAMP
$0.65¢325
1
#24
90464-20010-00
CLAMP
$2.58¢1 288
1
#25
90464-36005-00
CLAMP
$1.20¢600
1
#26
90464-70800-00
CLAMP
$1.06¢531
1
#27
B9T-H2501-00-00
MAIN SWITCH STEERI
$96.45¢48 225
1
#28
1WD-H2511-09-00
BLANK KEY | AP
$18.43¢9 213
1
#29
90109-060G4-00
BOLT
$4.05¢2 025
1
#30
B9T-XH250-00-00
MAIN SW. STRG. LOC
$152.27¢76 137
1
#31
1WD-H2566-01-00
SWITCH, SIDE STAND
$43.75¢21 875
1
#32
90110-05809-00
BOLT, HEXAGON SOCKET HEAD
$1.29¢644
1
#33
1WD-H2591-00-00
BAND
$3.02¢1 513
1
#34
90464-26001-00
Clamp
$1.85¢925
1
#35
90464-08009-00
Clamp
$1.98¢988
1
#36
90464-30009-00
CLAMP
$3.89¢1 944
1
#37
B9T-F8358-00-00
STAY 3
$11.81¢5 906
1
