SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

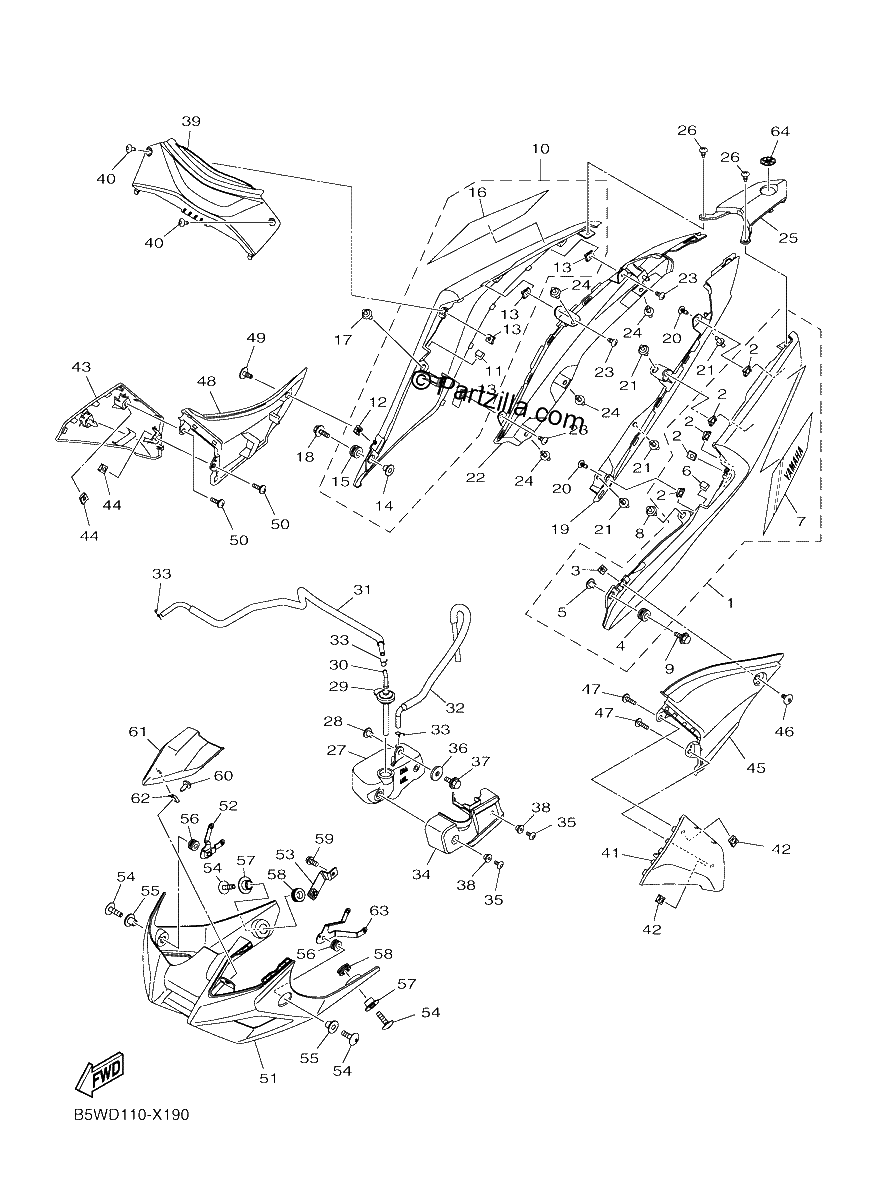

Diagrama de SIDE COVER

Repuestos

#1
1WD-XF171-00-3E
COVER, SIDE 1 (PASTEL DARK GRAY)
$39.62¢19 809
1
#2
90183-05807-00
NUT, SPRING
$1.15¢575
1
#3
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#4
90480-12808-00
GROMMET
$2.71¢1 357
1
#5
90387-06899-00
COLLAR
$2.70¢1 351
1
#6
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#7
BEV-F173E-10-00
GRAPHIC 1 (PASTEL DARK GRAY) *{UR FOR PGD}*
$5.69¢2 846
1
#8
90269-06816-00
RIVET
$1.58¢788
1
#9
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#10
1WD-XF172-00-3E
COVER, SIDE 2 (PASTEL DARK GRAY)
$44.15¢22 074
1
#11
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#12
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#13
90183-05807-00
NUT, SPRING
$1.15¢575
1
#14
90387-06899-00
COLLAR
$2.70¢1 351
1
#15
90480-12808-00
GROMMET
$2.71¢1 357
1
#16
BEV-F173F-10-00
GRAPHIC 2 (PASTEL DARK GRAY) *{UR FOR PGD}*
$5.69¢2 846
1
#17
90269-06816-00
RIVET
$1.58¢788
1
#18
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#19
1WD-F171L-00-00
MOLE, SIDE COVER 1
$4.30¢2 151
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#21
90269-06816-00
RIVET
$1.58¢788
1
#22
1WD-F171M-00-00
MOLE, SIDE COVER 2
$16.09¢8 044
1
#23
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#24
90269-06816-00
RIVET
$1.58¢788
1
#25
1WD-F171N-00-00
MOLE, SIDE COVER 3
$11.73¢5 865
1
#26
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#27
1WD-F1871-01-00
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$23.01¢11 506
1
#28
90387-06857-00
COLLAR
$1.18¢592
1
#29
1WD-F1875-01-00
CAP
$3.30¢1 650
1
#30
3C1-F1828-00-00
ELBOW
$24.05¢12 023
1
#31
1WD-F1816-02-00
PIPE 1
$10.28¢5 140
1
#32
1WD-F1817-01-00
PIPE 2
$6.49¢3 243
1
#33
90467-08003-00
CLIP
$6.90¢3 450
1
#34
BS7-F172W-00-00
Cover
$18.50¢9 252
1
#35
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#36
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#37
95807-06014-00
BOLT, FLANGE
$2.44¢1 219
1
#38
90560-06244-00
SPACER
$7.30¢3 651
1
#39
1WD-F1731-00-3E
COVER, SIDE 3 (PASTEL DARK GRAY) *{UR FOR PGD}*
$11.88¢5 940
1
#40
90160-05810-00
SCREW, ROUND TAPPING
$1.74¢868
1
#41
B9T-F171E-00-3E
COVER, SIDE 5 (PASTEL DARK GRAY)
$23.77¢11 885
1
#42
90183-05807-00
NUT, SPRING
$1.15¢575
1
#43
B9T-F171X-00-3E
COVER, SIDE 6 (PASTEL DARK GRAY)
$23.77¢11 885
1
#44
90183-05807-00
NUT, SPRING
$1.15¢575
1
#45
B9T-F1716-00-00
LID, SIDE COVER
$12.55¢6 273
1
#46
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#47
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#48
B9T-F1726-00-00
LID, SIDE COVER 2
$9.12¢4 560
1
#49
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#50
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#51
B6W-F8385-00-P1
COVER, UNDER
$116.43¢58 213
1
#52
B04-F833F-00-00
BRACKET 9
$5.49¢2 743
1
#53
B04-F833G-00-00
BRACKET 10
$5.08¢2 541
1
#54
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#55
90387-06899-00
COLLAR
$2.70¢1 351
1
#56
90480-12808-00
GROMMET
$2.71¢1 357
1
#57
90387-09801-00
COLLAR
$9.94¢4 968
1
#58
90480-18418-00
GROMMET
$7.58¢3 789
1
#59
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#60
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#61
B08-F842M-00-00
COVER 1
$18.50¢9 252
1
#62
90183-05807-00
NUT, SPRING
$1.15¢575
1
#63
B04-F833E-00-00
BRACKET 8
$7.28¢3 640
1
#64
1PA-F836B-01-00
TUNING FORK MARK
$31.65¢15 824
1
