TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

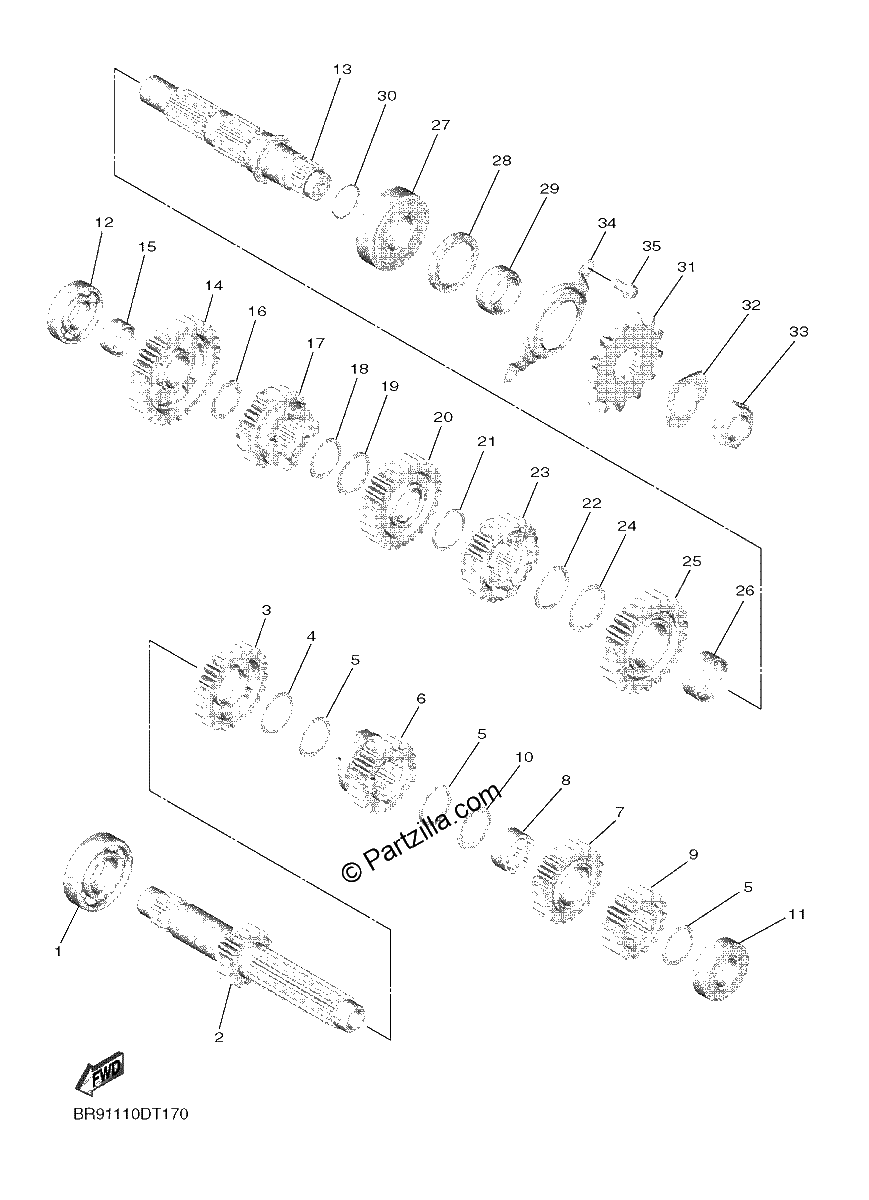

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$63.16¢31 579
1
#2
B3J-17411-00-00
Axle, Main
$124.81¢62 405
1
#3
5TJ-17151-21-00
GEAR, 5TH PINION (replaces 5TJ-17151-20-00)
$60.06¢30 032
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#5
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#6
BEX-17131-00-00
GEAR, 3RD PINION(16T)
$214.64¢107 318
1
#7
5TJ-17141-30-00
GEAR, 4TH PINION (20T)
$71.28¢35 638
1
#8
90387-21005-00
Collar
$27.43¢13 714
1
#9
5TJ-17121-30-00
GEAR, 2ND PINION (replaces 5TJ-17121-20-00)
$65.17¢32 585
1
#10
90209-21332-00
WASHER
$7.38¢3 691
1
#11
93306-00447-00
BEARING
$39.15¢19 573
1
#12
93306-00426-00
BEARING
$40.11¢20 056
1
#13
BR9-17402-00-00
Drive axle assy
$167.96¢83 979
1
#14
5TJ-17211-20-00
GEAR, 1ST WHEEL
$111.22¢55 608
1
#15
90387-20028-00
Collar
$22.29¢11 143
1
#16
90201-203E7-00
WASHER,PLATE
$7.91¢3 956
1
#17
B3J-17251-00-00
GEAR, 5TH WHEEL
$113.62¢56 810
1
#18
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#19
90209-22008-00
WASHER
$5.65¢2 823
1
#20
B3J-17231-10-00
GEAR, 3RD WHEEL(21T)
$66.16¢33 080
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#23
B3J-17241-10-00
GEAR, 4TH WHEEL(21T)
$143.35¢71 674
1
#24
90209-26348-00
WASHER
$10.57¢5 284
1
#25
5TJ-17221-30-00
GEAR, 2ND WHEEL (replaces 5TJ-17221-20-00)
$79.50¢39 750
1
#26
90387-28012-00
Collar
$29.50¢14 749
1
#27
93306-205A5-00
BEARING
$58.28¢29 141
1
#28
93102-32014-00
Oil Seal
$30.77¢15 387
1
#29
90387-25037-00
Collar
$26.82¢13 409
1
#30
93210-22164-00
O-RING
$7.19¢3 594
1
#31
9383E-13233-00
SPROCKET, DRIVE (13T)
$21.75¢10 873
1
#32
90215-21003-00
Washer, Lock
$5.90¢2 950
1
#33
90179-20001-00
Nut
$15.11¢7 555
1
#34
1SL-17471-00-00
PLATE, COVER
$13.36¢6 681
1
#35
90105-06226-00
Bolt, Flange
$0.99¢494
1
