RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

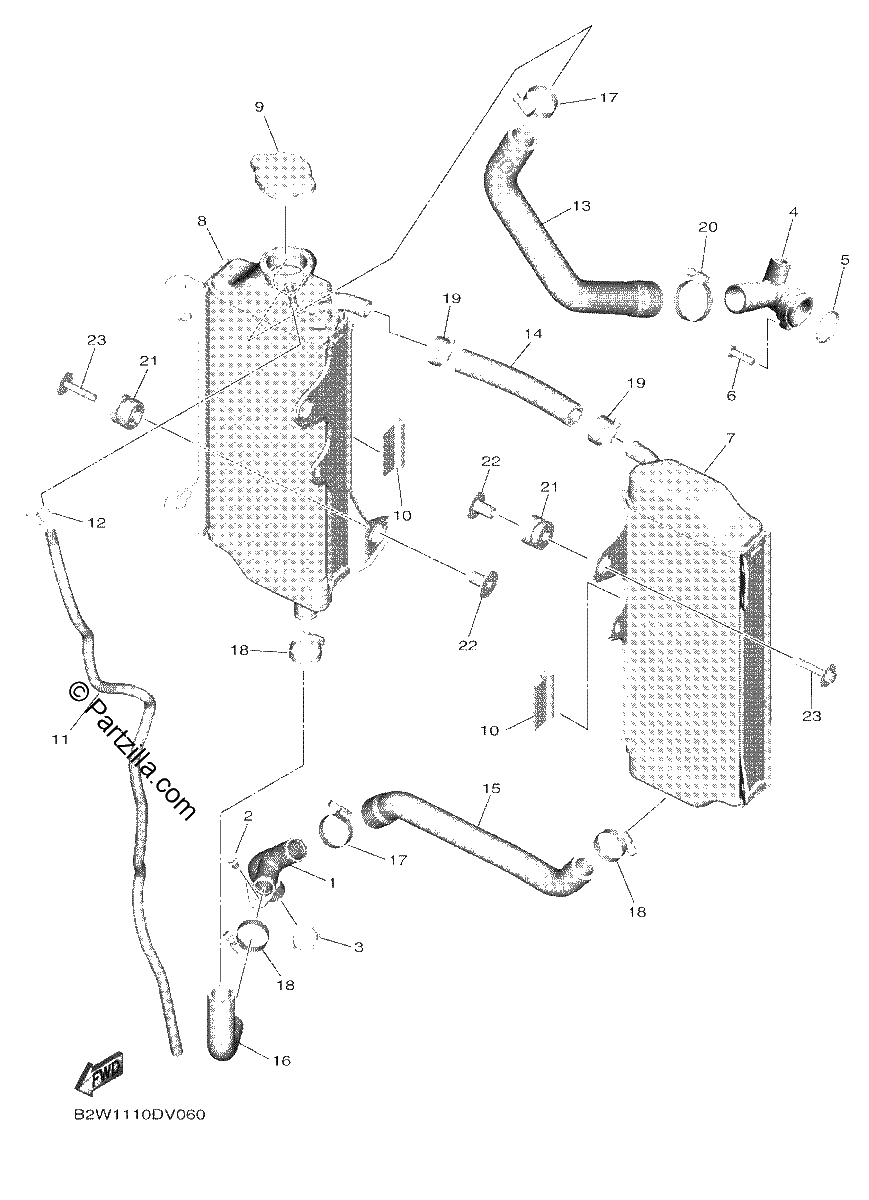

Diagrama de RADIATOR HOSE

Repuestos

#1
BR9-12482-00-00
PIPE 2
$82.65¢41 325
1
#2
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#3
93210-16500-00
O-RING
$5.85¢2 925
1
#4
B2W-12446-00-00
JOINT
$60.77¢30 388
1
#5
93210-24253-00
O-RING | INCL. IN BOTTOM END GASKET KIT
$5.93¢2 963
1
#6
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#7
BR9-1240A-00-00
Radiator Assy
$240.21¢120 106
1
#8
B3J-12461-00-00
RADIATOR COMP
$374.99¢187 494
1
#9
5SL-12462-00-00
CAP, RADIATOR
$37.52¢18 763
1
#10
33D-12465-00-00
DAMPER, RADIATOR
$13.14¢6 569
1
#11
91A20-05065-00
TUBE, FLEXIBLE VINYL
$14.98¢7 488
1
#12
90467-090A2-00
Clip
$2.97¢1 487
1
#13
B3J-12576-00-00
HOSE 1
$24.47¢12 237
1
#14
BR9-12577-00-00
HOSE 2
$6.11¢3 056
1
#15
BR9-12578-00-00
HOSE 3
$17.56¢8 781
1
#16
B3J-12579-00-00
HOSE 4
$18.49¢9 244
1
#17
90450-28001-00
HOSE CLAMP ASSY
$14.94¢7 469
1
#18
90450-25001-00
HOSE CLAMP ASSY
$9.70¢4 850
1
#19
90450-22001-00
HOSE CLAMP ASSY
$12.54¢6 269
1
#20
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#21
90480-15012-00
GROMMET
$6.81¢3 406
1
#22
90387-06065-00
COLLAR
$11.39¢5 694
1
#23
90119-06262-00
BOLT, WITH WASHER
$7.48¢3 738
1
