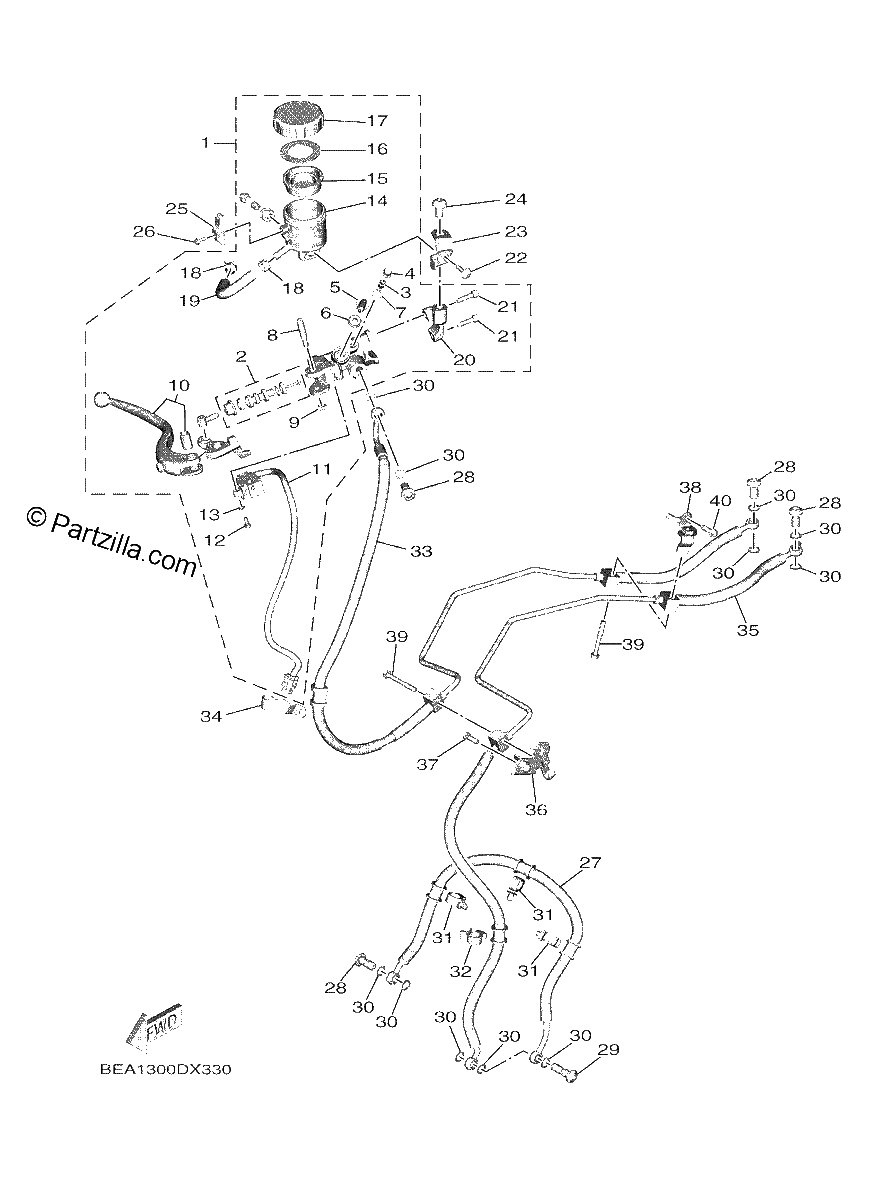

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$375.00¢187 500
#2
. CYLINDER KIT, MASTER
$43.60¢21 800
#3
SCREW, BLEED
$8.97¢4 488
#4
CAP
$13.90¢6 950
#5
JOINT
$4.41¢2 206
#6
O-RING
$11.39¢5 694
#7
SEAL 1
$1.93¢963
#8
BOLT, LEVER
$7.48¢3 738
#9
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#10
LEVER SET
$55.79¢27 894
#11
FRONT STOP SWITCH ASSY
$139.70¢69 850
#12
SCREW, PAN HEAD
$3.33¢1 663
#13
WASHER, PLATE
$1.20¢600
#14
TANK, RESERVOIR
$66.19¢33 094
#15
DIAPHRAGM, RESERVOIR
$33.59¢16 794
#16
BUSH, DIAPHRAGM
$4.49¢2 244
#17
CAP, RESERVOIR
$18.90¢9 450
#18
CLIP
$6.99¢3 494
#19
HOSE, RESERVOIR
$18.94¢9 469
#20
BRACKET, MASTER CYLINDER
$52.00¢26 000
#21
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#22
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
#23
STAY
$22.69¢11 344
#24
BOLT, HEXAGON SOCKET BUTTON
$5.00¢2 500
#25
HOLDER
$8.92¢4 462
#26
SCREW
$7.60¢3 800
#27
HOSE, BRAKE 1
$56.46¢28 231
#28
BOLT, UNION
$4.41¢2 206
#29
BOLT, UNION
$18.96¢9 481
#30
GASKET
$8.39¢4 194
#31
CLAMP
$8.25¢4 125
#32
CLAMP
$3.50¢1 750
#33
BRAKE HOSE ASSY
$203.71¢101 856
#34
HOLDER, BRAKE HOSE 1
$8.77¢4 387
#35
HOSE, BRAKE
$147.14¢73 569
#36
BRACKET, REFLECTOR 1
$17.25¢8 625
#37
BOLT, FLANGE
$3.96¢1 981
#38
BRACKET
$16.99¢8 494
#39
BOLT, FLANGE
$2.95¢1 475
#40
BOLT, FLANGE
$3.96¢1 981
