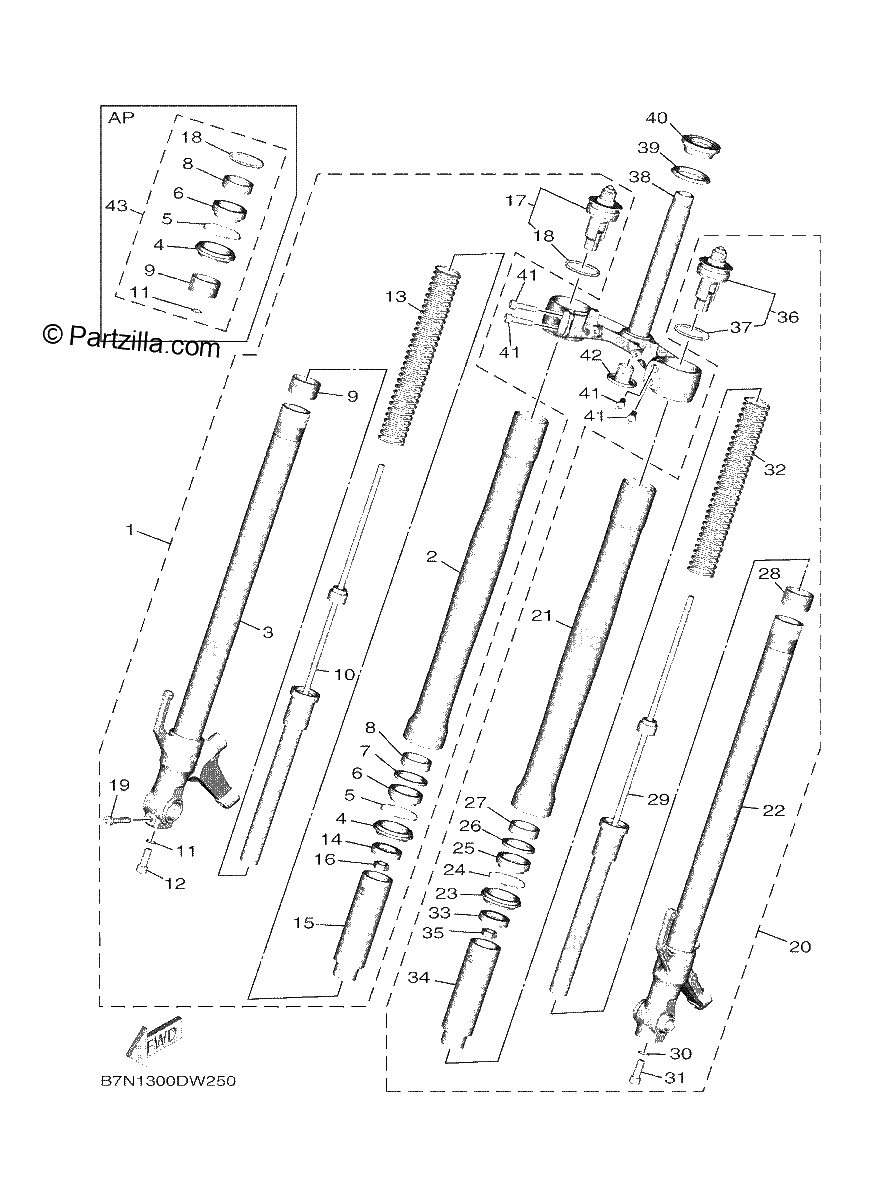

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY. (R)
$1450.19¢725 094
#2
. TUBE, OUTER (LH)
$472.52¢236 263
#3
INNER TUBE COMP2
$463.65¢231 825
#4
SEAL, DUST
$23.21¢11 606
#5
RING, SNAP
$7.88¢3 938
#6
OIL SEAL
$28.90¢14 450
#7
WASHER, OIL SEAL
$26.29¢13 144
#8
METAL, SLIDE 1
$14.75¢7 375
#9
METAL, SLIDE
$24.28¢12 138
#10
CYLINDER COMP, FRONT FORK
$366.27¢183 138
#11
GASKET | (KYB)
$17.09¢8 544
#12
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#13
SPRING, FRONT FORK
$112.27¢56 137
#14
WASHER
$12.75¢6 375
#15
SPACER
$64.85¢32 425
#16
NUT
$7.91¢3 956
#17
BOLT, CAP
$396.81¢198 406
#18
O-RING
$4.90¢2 450
#19
BOLT (3JP)
$6.25¢3 125
#20
DAMPER ASSY. (L)
$1450.19¢725 094
#21
. TUBE, OUTER (LH)
$472.52¢236 263
#22
INNER TUBE COMP1
$554.51¢277 256
#23
SEAL, DUST
$23.21¢11 606
#24
RING, SNAP
$7.88¢3 938
#25
OIL SEAL
$28.90¢14 450
#26
WASHER, OIL SEAL
$26.29¢13 144
#27
METAL, SLIDE 1
$14.75¢7 375
#28
METAL, SLIDE
$24.28¢12 138
#29
CYLINDER COMP, FRONT FORK
$366.27¢183 138
#30
GASKET | (KYB)
$17.09¢8 544
#31
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#32
SPRING, FRONT FORK
$112.27¢56 137
#33
WASHER
$12.75¢6 375
#34
SPACER
$64.85¢32 425
#35
NUT
$7.91¢3 956
#36
BOLT, CAP
$396.81¢198 406
#37
O-RING
$4.90¢2 450
#38
UNDER BRACKET COMP.
$488.94¢244 469
#39
SEAL, STEERING
$25.53¢12 763
#40
BEARING
$72.81¢36 406
#41
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#42
COVER, UNDER 1
$14.65¢7 325
#43
FORK SEALS KIT *{AP}*
$69.86¢34 931
