FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

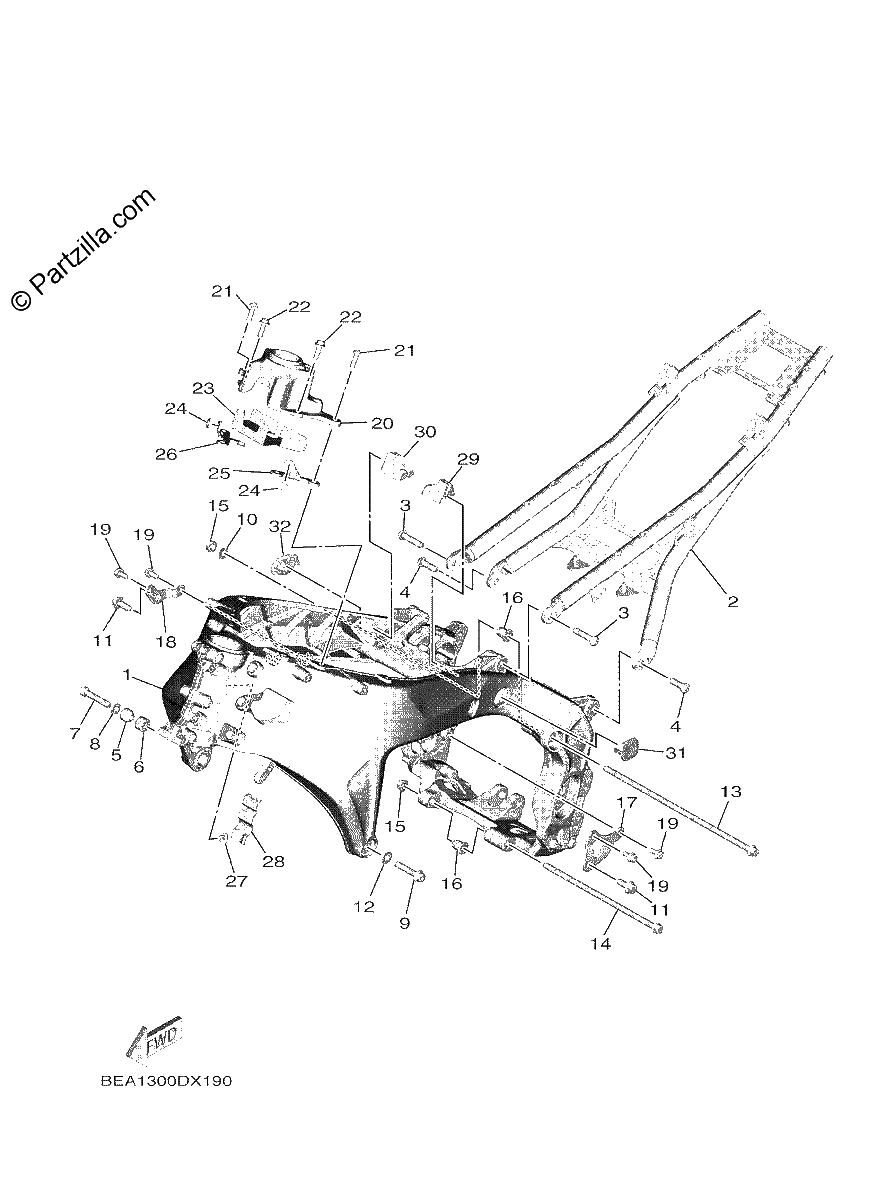

Diagrama de FRAME

Repuestos

#1
BEA-2111B-09-00
FRAME SUB COMP.
$2392.49¢1 196 244
1
#2
BEA-21190-09-00
REAR FRAME COMP.
$1386.24¢693 119
1
#3
90149-10076-00
SCREW
$4.40¢2 200
1
#4
90149-10074-00
SCREW
$7.69¢3 844
1
#5
2C0-21414-00-00
BOSS, ENGINE MOUNT
$27.43¢13 713
1
#6
5VY-21424-00-00
BOSS, ENGINE MOUNT
$32.09¢16 044
1
#7
91314-10050-00
BOLT, HEXAGON SOCKET HEAD
$4.84¢2 419
1
#8
90201-10013-00
WASHER, PLATE
$7.46¢3 731
1
#9
90110-10043-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#10
90201-10084-00
WASHER, PLATE
$2.50¢1 250
1
#11
95D37-10025-00
BOLT, FLANGE (replaces 90105-10475-00)
$2.04¢1 019
1
#12
90201-10075-00
WASHER, PLATE
$2.97¢1 487
1
#13
90105-10487-00
BOLT, FLANGE
$35.76¢17 881
1
#14
90105-10488-00
BOLT, FLANGE
$19.71¢9 856
1
#15
90179-10247-00
NUT
$9.22¢4 613
1
#16
4C8-21495-00-00
BOLT, ENGINE ADJUSTING
$22.63¢11 313
1
#17
BEA-21315-00-00
STAY, ENGINE 1
$12.09¢6 044
1
#18
B7N-21316-01-00
STAY, ENGINE 2
$7.76¢3 881
1
#19
90109-085E2-00
bolt
$7.13¢3 563
1
#20
B7N-2137F-00-00
STAY 1
$93.61¢46 806
1
#21
90109-08246-00
BOLT
$4.55¢2 275
1
#22
90110-08126-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#23
B7N-23892-00-00
SHIELD, HEAT
$15.26¢7 631
1
#24
BEA-28372-00-00
DAMPER
$1.84¢919
1
#25
BEA-2142G-00-00
STAY 1
$13.39¢6 694
1
#26
BEA-2142H-00-00
STAY 2
$12.72¢6 363
1
#27
5VX-21289-00-00
PLUG, BLIND
$4.66¢2 331
1
#28
34D-82176-00-00
DAMPER
$1.80¢900
1
#29
B7N-2117F-00-00
COVER
$6.63¢3 313
1
#30
B7N-2117M-00-00
COVER 2
$6.63¢3 313
1
#31
BEA-2117X-00-00
COVER 9
$12.75¢6 375
1
#32
BEA-2117Y-00-00
COVER 10
$12.75¢6 375
1
