WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

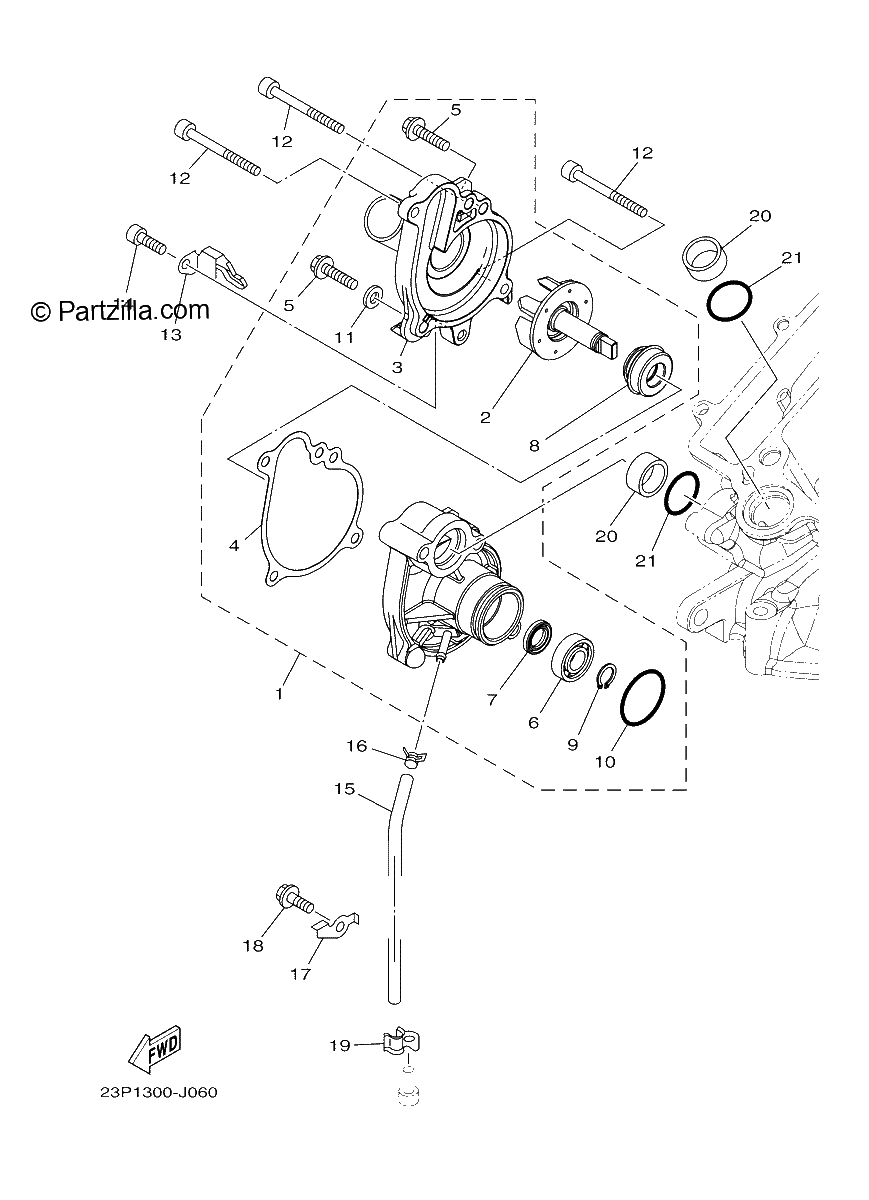

Diagrama de WATER PUMP

Repuestos

#1
23P-12420-01-00
WATER PUMP ASSY
$370.40¢185 200
1
#2
23P-12450-00-00
IMPELLER SHAFT ASSY
$64.45¢32 225
1
#3
23P-12422-01-00
COVER, HOUSING
$97.86¢48 931
1
#4
23P-12428-00-00
GASKET, HOUSING COVER 2
$20.30¢10 150
1
#5
95024-06025-00
Bolt, Flange
$3.06¢1 531
1
#6
93306-00106-00
. Bearing
$30.26¢15 131
1
#7
93101-12173-00
OIL SEAL
$13.46¢6 731
1
#8
5VK-12438-00-00
SEAL, MECHANICAL
$63.35¢31 675
1
#9
99009-12400-00
CIRCLIP
$3.66¢1 831
1
#10
93210-33133-00
O-RING
$3.59¢1 794
1
#11
90430-06014-00
GASKET
$8.25¢4 125
1
#12
90110-06351-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#13
90462-08095-00
CLAMP
$6.51¢3 256
1
#14
91314-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#15
90445-07030-00
HOSE
$3.01¢1 506
1
#16
90467-070A0-00
Clip
$7.69¢3 844
1
#17
90462-08084-00
CLAMP
$4.30¢2 150
1
#18
95824-06016-00
BOLT, FLANGE
$2.41¢1 206
1
#19
90462-10059-00
CLAMP
$8.77¢4 387
1
#20
23P-12564-00-00
PIPE, WATER
$6.59¢3 294
1
#21
93210-24001-00
O-RING
$6.67¢3 338
1
