REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

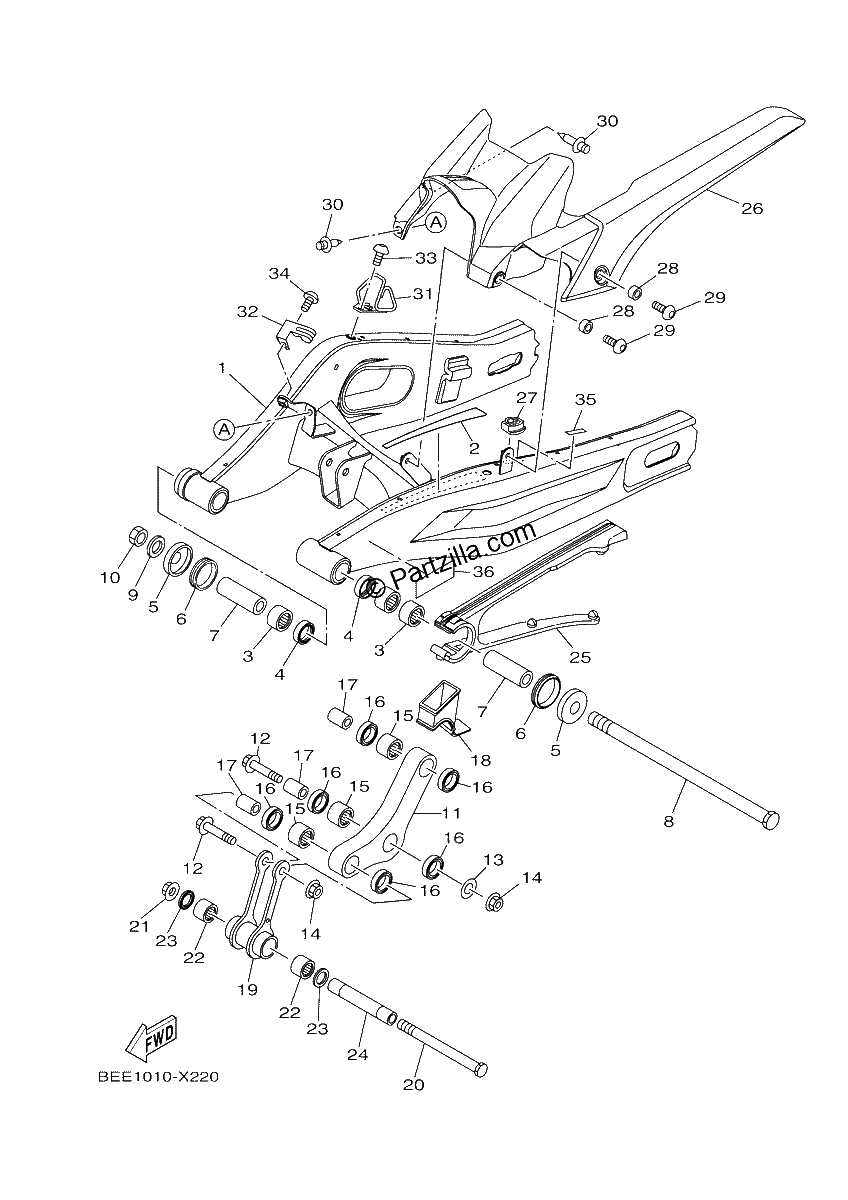

Diagrama de REAR ARM

Repuestos

#1
1WS-22110-10-00
REAR ARM COMP.
$831.44¢415 719
1
#2
BU2-22358-00-00
SEAL 1
$8.03¢4 013
1
#3
93317-22262-00
BEARING
$37.40¢18 699
1
#4
93106-22019-00
OIL SEAL,DD-TYPE
$10.23¢5 118
1
#5
30X-2219X-00-00
COVER
$15.65¢7 826
1
#6
93108-35004-00
OIL SEAL (35-41-8)
$13.78¢6 889
1
#7
90380-16158-00
BUSH,SOLID
$31.05¢15 525
1
#8
1UY-22141-10-00
Shaft, Pivot
$60.52¢30 262
1
#9
90201-164H4-00
WASHER,PLATE
$8.79¢4 393
1
#10
90185-16002-00
NUT, SELF-LOCKING
$16.56¢8 280
1
#11
1WS-2217A-00-00
ARM, RELAY
$103.70¢51 848
1
#12
90105-102A6-00
BOLT, FLANGE
$8.21¢4 105
1
#13
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#14
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#15
93315-31758-00
BEARING
$38.04¢19 021
1
#16
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#17
90387-1012A-00
COLLAR
$19.48¢9 741
1
#18
1WS-22189-00-00
Boot, Rubber
$7.91¢3 956
1
#19
1WS-2217F-00-00
ROD, CONNECTING 1
$65.58¢32 792
1
#20
90101-12049-00
bolt
$18.43¢9 217
1
#21
95602-12200-00
NUT, SELF-LOCKING
$4.19¢2 093
1
#22
93317-31771-00
BEARING
$34.84¢17 423
1
#23
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#24
1WS-22184-00-00
Bush
$22.67¢11 333
1
#25
BEB-22151-00-00
SEAL, GUARD
$46.94¢23 472
1
#26
B4C-21650-00-00
REAR FENDER COMP.
$56.91¢28 457
1
#27
B4C-22332-00-00
DAMPER, CHAIN CASE
$4.34¢2 168
1
#28
90387-06344-00
Collar
$2.31¢1 156
1
#29
90111-06119-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#30
90269-07007-00
RIVET
$3.68¢1 840
1
#31
BU2-25887-00-00
HOLDER, BRAKE HOSE (replaces 1WS-25887-00-00)
$23.95¢11 977
1
#32
1WS-2588F-00-00
HOLDER, BRAKE HOSE
$32.64¢16 318
1
#33
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#34
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#35
3P6-28228-00-00
SEAL 2
$10.19¢5 094
1
#36
1TP-21668-00-00
LABEL, TIRE
$2.02¢1 012
1
