ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

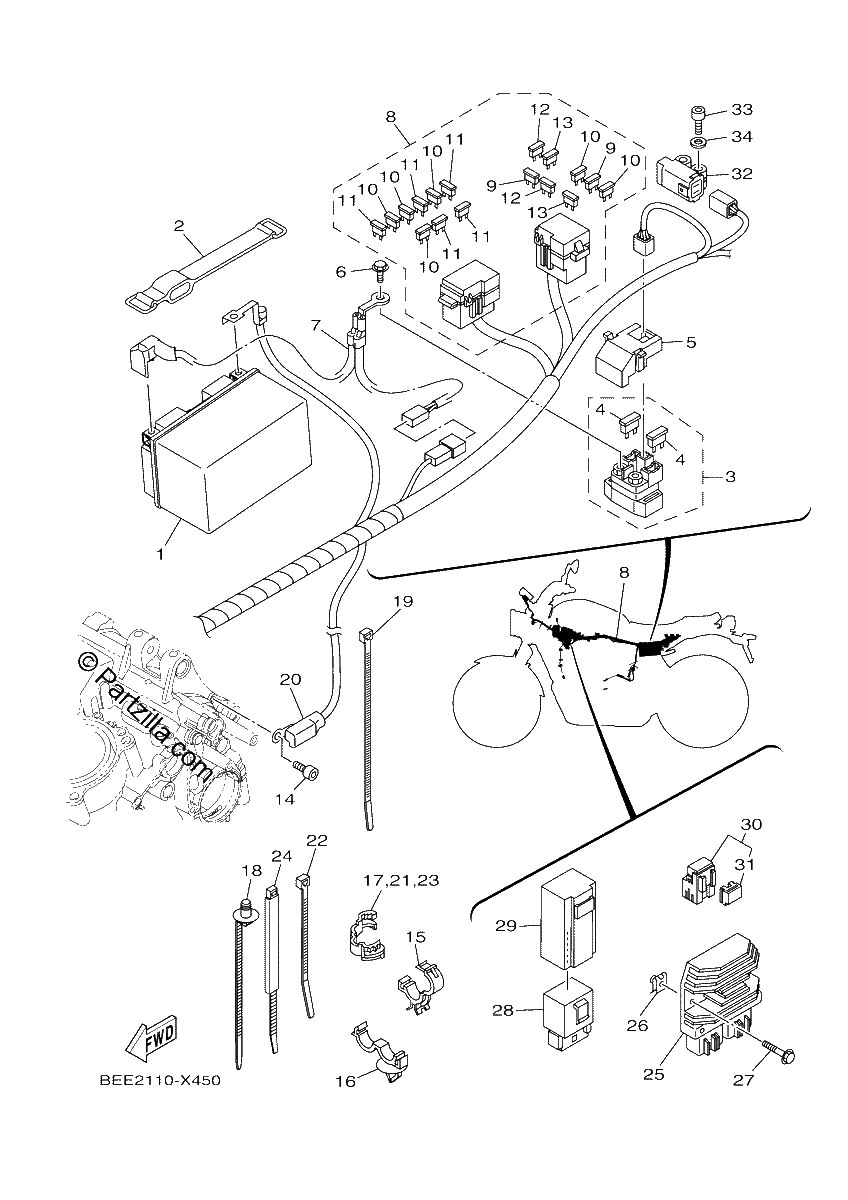

Diagrama de ELECTRICAL 1

Repuestos

#1
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#2
1WS-82131-00-00
BAND, BATTERY
$8.11¢4 054
1
#3
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$62.64¢31 320
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#5
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#6
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#7
1XB-82115-01-00
WIRE, plus lead
$24.21¢12 104
1
#8
BEE-82590-10-00
WIRE HARNESS ASSY
$1181.04¢590 519
1
#9
5JJ-82151-50-00
. FUSE (3A-BL)
$5.51¢2 754
1
#10
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#11
5JJ-82151-30-00
. FUSE (10A-BL)
$7.58¢3 789
1
#12
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#13
5JJ-82151-60-00
FUSE (30A-BL)
$7.01¢3 507
1
#14
91380-06012-00
BOLT
$2.05¢1 023
1
#15
90464-20191-00
Clamp
$8.06¢4 031
1
#16
90464-17003-00
Clamp
$3.39¢1 696
1
#17
90464-14010-00
CLAMP
$3.52¢1 759
1
#18
90464-30010-00
Clamp
$1.68¢839
1
#19
1UA-82591-00-00
BAND
$4.52¢2 260
1
#20
1WS-81916-00-00
COVER, TERMINAL
$4.80¢2 398
1
#21
90464-14010-00
CLAMP
$3.52¢1 759
1
#22
90464-36005-00
CLAMP
$1.10¢552
1
#23
90464-14010-00
CLAMP
$3.52¢1 759
1
#24
BAT-21646-00-00
BAND
$3.21¢1 604
1
#25
1D7-81960-10-00
RECTIFIER & REGULATOR ASSY
$239.15¢119 577
1
#26
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#27
95027-06020-00
BOLT, FLANGE
$1.13¢564
1
#28
5VK-81950-51-00
RELAY ASSY
$56.00¢28 002
1
#29
1WS-8246B-00-00
COVER 1
$8.96¢4 479
1
#30
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#31
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#32
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#33
91312-04025-00
BOLT
$1.69¢845
1
#34
90201-04030-00
WASHER, PLATE
$1.66¢828
1
