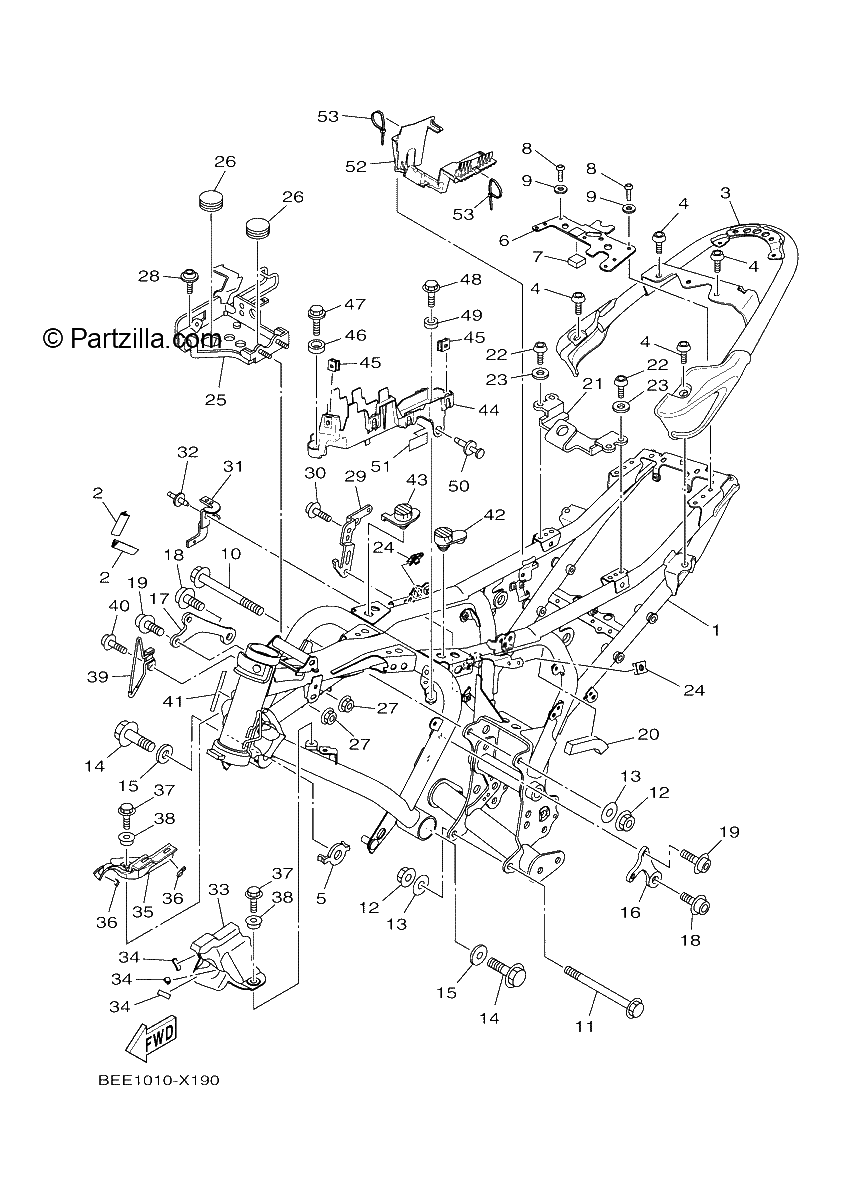

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP. *{MBL2}*
$1958.74¢979 369
#2
MOLE, SIDE COVER 1
$25.19¢12 594
#3
REAR FRAME COMP.
$1142.49¢571 244
#4
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
#5
PLATE 1
$18.85¢9 425
#6
Bracket, Seat
$51.17¢25 588
#7
DAMPER, locating 2
$3.73¢1 863
#8
BOLT, BUTTON HEAD
$3.33¢1 663
#9
WASHER, PLATE
$8.45¢4 225
#10
Bolt, Flange
$6.84¢3 419
#11
BOLT, FLANGE
$16.18¢8 088
#12
NUT
$10.46¢5 231
#13
WASHER, plate
$4.25¢2 125
#14
BOLT, FLANGE
$14.14¢7 069
#15
WASHER, PLATE
$3.61¢1 806
#16
STAY, ENGINE 1
$18.98¢9 488
#17
STAY, ENGINE 2
$18.98¢9 488
#18
BOLT, HEXAGON SOCKET HEAD
$4.91¢2 456
#19
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
#20
DAMPER, PLATE
$7.46¢3 731
#21
BRACKET, SEAT FITTING
$50.55¢25 275
#22
BOLT, BUTTON HEAD
$3.33¢1 663
#23
WASHER, PLATE
$8.45¢4 225
#24
Nut, Spring
$37.14¢18 569
#25
Bracket
$88.13¢44 063
#26
GROMMET
$11.35¢5 675
#27
NUT, FLANGE
$2.44¢1 219
#28
BOLT, HEX. SOCKET BUTTON
$5.22¢2 613
#29
BRACKET 8
$16.70¢8 350
#30
BOLT, BUTTON HEAD
$3.65¢1 825
#31
BRACKET 2
$10.81¢5 406
#32
RIVET
$8.25¢4 125
#33
COVER 4
$7.21¢3 606
#34
PLATE, DAMPER
$7.86¢3 931
#35
COVER 5
$5.80¢2 900
#36
PLATE, DAMPER
$7.86¢3 931
#37
BOLT, FLANGE
$1.79¢894
#38
COLLAR
$7.88¢3 938
#39
GUIDE, CABLE
$17.40¢8 700
#40
BOLT,FLANGE(4MY)
$2.95¢1 475
#41
PROTECTOR, FUEL TANK
$13.71¢6 856
#42
Stopper
$18.60¢9 300
#43
Stopper
$15.55¢7 775
#44
HOLDER, RELAY
$63.10¢31 550
#45
Nut, Spring
$37.14¢18 569
#46
COLLAR
$3.71¢1 856
#47
BOLT, WITH WASHER
$6.70¢3 350
#48
Bolt, Flange
$1.79¢894
#49
COLLAR
$6.45¢3 225
#50
RIVET
$7.34¢3 669
#51
DAMPER, HEADLIGHT STAY
$1.80¢900
#52
SEAL
$58.10¢29 050
#53
BAND
$8.35¢4 175
