TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

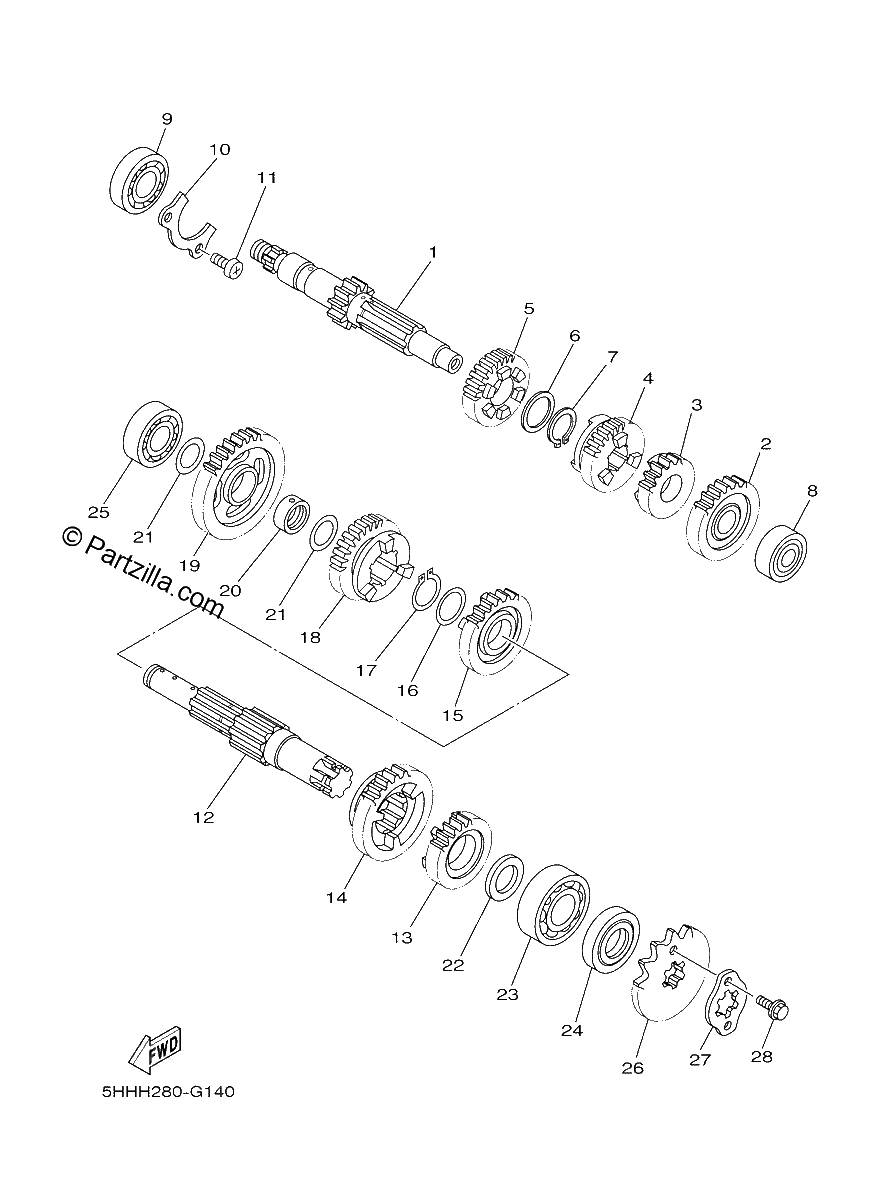

Diagrama de TRANSMISSION

Repuestos

#1
5HH-E7411-10-00
Axle, Main
$202.78¢101 390
1
#2
5HH-E7151-20-00
GEAR,5TH PINION
$52.49¢26 243
1
#3
5HH-E7121-20-00
GEAR, 2ND PINION (18T)
$109.66¢54 832
1
#4
5AP-E7131-00-00
GEAR,3RD PINION
$59.29¢29 647
1
#5
5HH-E7141-20-00
GEAR,4TH PINION
$136.68¢68 339
1
#6
90201-20266-00
WASHER, PLATE (T=1.0)
$8.99¢4 497
1
#7
93410-20809-00
CIRCLIP
$2.86¢1 432
1
#8
93306-201X3-00
BEARING
$17.69¢8 844
1
#9
93306-203YG-00
BEARING
$34.76¢17 382
1
#10
5HH-E7471-00-00
PLATE, COVER
$1.01¢506
1
#11
9851M-06014-00
SCREW, PAN HEAD
$0.52¢259
1
#12
5HH-E7402-30-00
DRIVE AXLE ASSY
$158.15¢79 074
1
#13
5HH-E7251-20-00
GEAR, 5TH WHEEL (21T)
$60.72¢30 360
1
#14
5HH-E7221-20-00
GEAR, 2ND WHEEL (32T)
$70.46¢35 230
1
#15
5LX-E7231-10-00
GEAR,3RD WHEEL
$105.63¢52 814
1
#16
90214-19002-00
Washer, Claw
$2.40¢1 202
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#18
5HH-E7241-00-00
GEAR, 4TH WHELL (23T)
$68.67¢34 333
1
#19
5HH-E7211-20-00
GEAR, 1ST WHEEL (37T)
$165.80¢82 898
1
#20
5LX-E7258-00-00
Collar 1
$16.65¢8 326
1
#21
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#22
90201-20272-00
WASHER,PLATE
$6.66¢3 329
1
#23
93306-204X8-00
BEARING
$15.21¢7 607
1
#24
93102-20143-00
OIL SEAL,SD-TYPE
$10.60¢5 302
1
#25
93306-203XD-00
BEARING
$36.08¢18 038
1
#26
93822-13213-00
SPROCKET, DRIVE
$21.54¢10 770
1
#27
1B2-E7456-00-00
HOLDER, SPROCKET
$1.77¢886
1
#28
9131M-05010-00
bolt
$1.13¢564
1
