CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

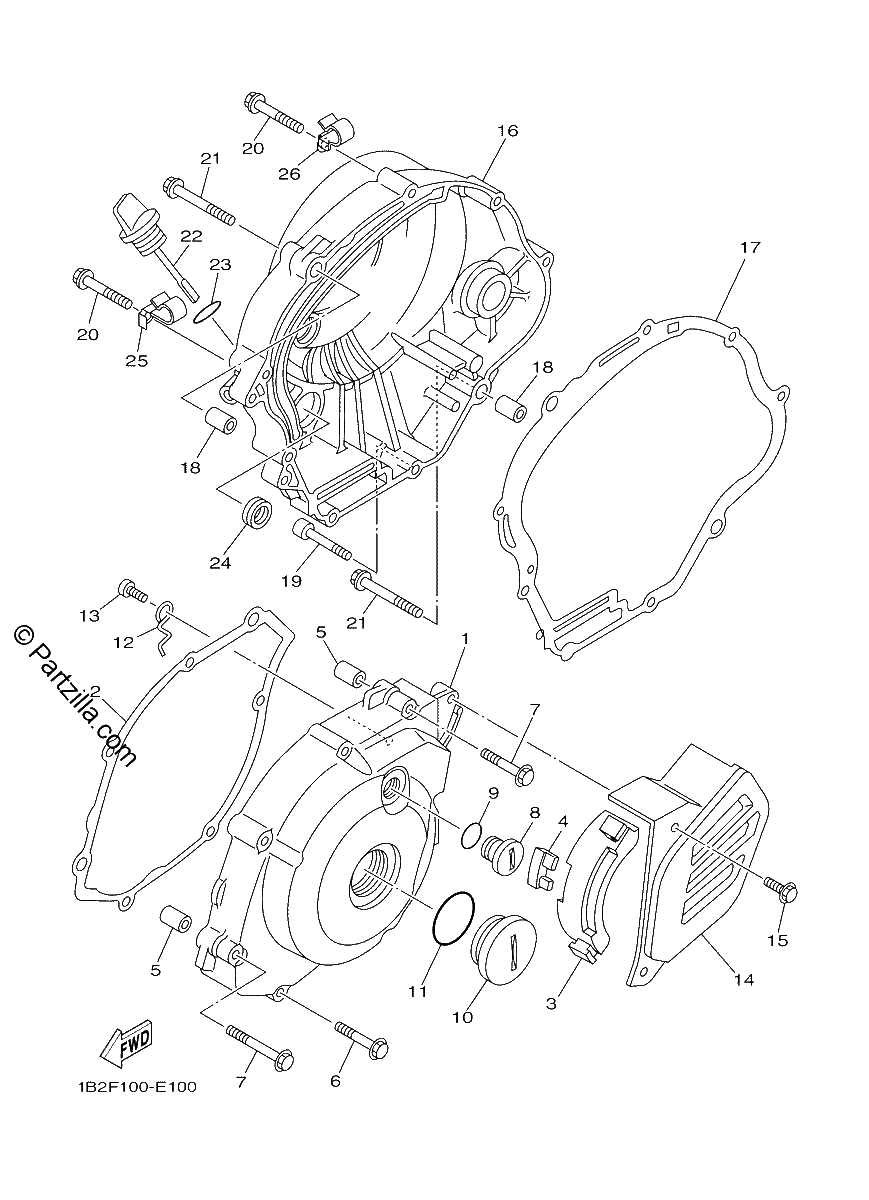

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1B2-E5411-00-WN
COVER, CRANKCASE 1 | CIS
$314.35¢157 175
1
#2
5HH-E5451-00-00
GASKET, CRANKCASE COVER 1
$4.06¢2 031
1
#3
1B2-E5377-00-00
GUIDE, INLET
$4.16¢2 081
1
#4
1B2-E5316-00-00
DAMPER 1
$1.38¢688
1
#5
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#6
9502M-06035-00
BOLT, FLANGE
$2.20¢1 100
1
#7
9502M-06045-00
BOLT, FLANGE
$2.95¢1 475
1
#8
90340-14W06-00
PLUG, STRAIGHT SCREW
$8.79¢4 394
1
#9
93210-14369-00
O-Ring
$6.91¢3 456
1
#10
90340-32W07-00
PLUG, STRAIGHT SCREW
$23.52¢11 763
1
#11
93210-32172-00
O-Ring
$6.88¢3 438
1
#12
5HH-E5191-00-00
PLATE
$0.95¢475
1
#13
9851M-06010-00
SCREW, PAN HEAD
$1.94¢969
1
#14
1B2-E5418-00-WN
COVER, CHAIN CASE | CIS
$28.82¢14 413
1
#15
9581M-06016-00
BOLT, FLANGE
$1.79¢894
1
#16
1B2-E5421-10-WN
COVER, CRANKCASE 2 | CIS
$66.08¢33 038
1
#17
5HH-E5461-00-00
GASKET, CRANKCASE COVER 2
$7.95¢3 975
1
#18
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#19
91380-06035-00
BOLT
$3.15¢1 575
1
#20
9502M-06035-00
BOLT, FLANGE
$2.20¢1 100
1
#21
9502M-06045-00
BOLT, FLANGE
$2.95¢1 475
1
#22
5HH-E5362-00-00
PLUG, OIL LEVEL
$6.72¢3 363
1
#23
93210-19123-00
O-Ring
$8.24¢4 119
1
#24
93101-10800-00
OIL SEAL
$7.31¢3 656
1
#25
90465-08043-00
CLAMP
$12.24¢6 119
1
#26
90465-08041-00
CLAMP
$12.50¢6 250
1
