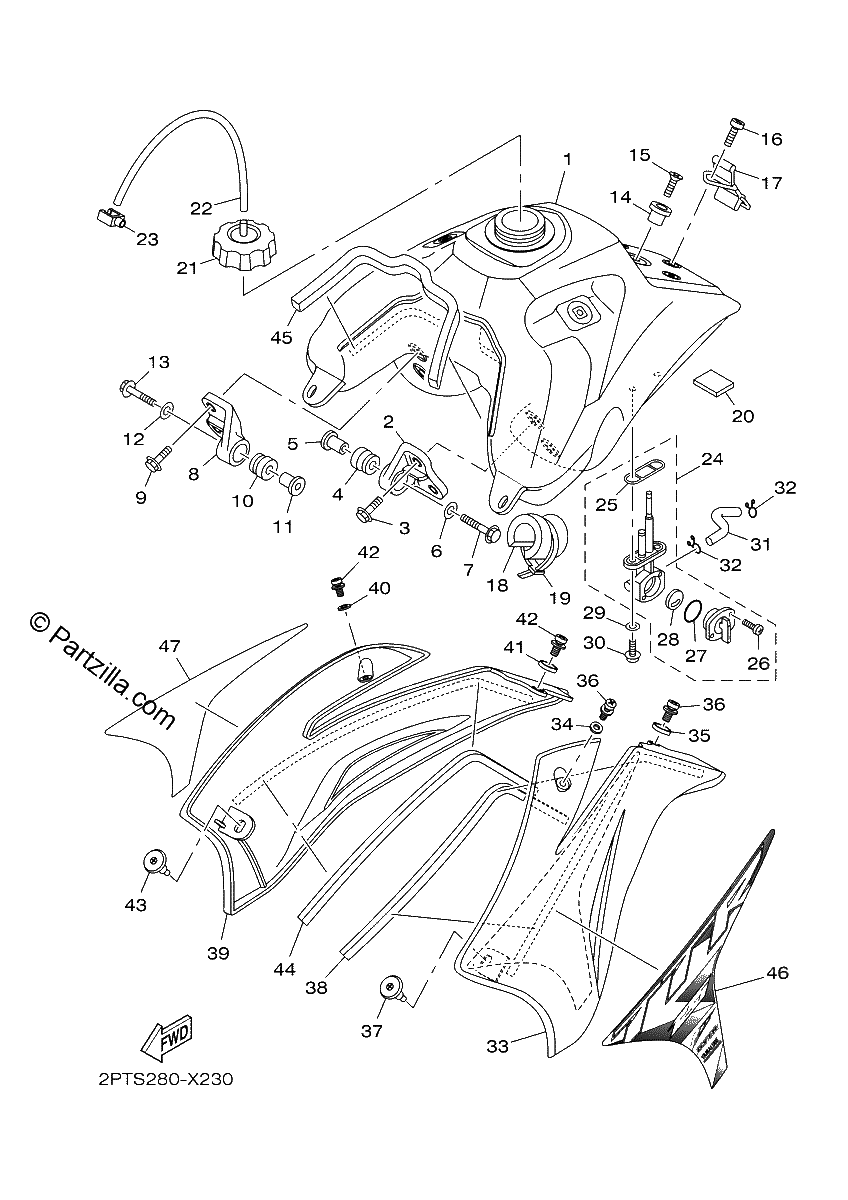

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. (replaces 1B2-24110-10-00)
$412.25¢206 126
#2
TANK BRACKET ASSY
$11.73¢5 865
#3
BOLT
$1.64¢822
#4
Grommet
$9.66¢4 830
#5
WASHER, SPECIAL
$12.09¢6 043
#6
WASHER, PLATE
$4.88¢2 438
#7
BOLT
$4.28¢2 139
#8
TANK BRACKET ASSY
$11.73¢5 865
#9
BOLT
$1.64¢822
#10
Grommet
$9.66¢4 830
#11
WASHER, SPECIAL
$12.09¢6 043
#12
WASHER, PLATE
$4.88¢2 438
#13
BOLT
$4.28¢2 139
#14
BRACKET, SEAT
$13.91¢6 958
#15
Screw, Flat Head
$7.31¢3 657
#16
SCREW, BIND
$7.81¢3 904
#17
BAND, TANK FITTING 1
$20.26¢10 131
#18
DAMPER, side cover
$1.32¢661
#19
CLAMP
$0.98¢489
#20
DAMPER 1
$0.31¢155
#21
CAP ASSY (replaces 2FJ-24610-10-00)
$67.76¢33 879
#22
Pipe, Breather
$10.38¢5 192
#23
Clamp
$7.13¢3 565
#24
FUEL COCK ASSY 1
$37.40¢18 699
#25
GASKET
$12.02¢6 009
#26
SCREW, PAN HEAD
$3.00¢1 501
#27
SEAL, COCK
$7.75¢3 875
#28
VALVE PACKING
$12.71¢6 354
#29
WASHER, PLATE
$1.45¢724
#30
SCREW,SPEC'L SHAPE
$1.79¢897
#31
HOSE (L110)
$4.13¢2 064
#32
CLIP
$2.74¢1 368
#33
SCOOP, AIR 1
$89.61¢44 804
#34
COLLAR
$9.41¢4 703
#35
Collar
$0.56¢282
#36
SCREW, WITH WASHER
$7.01¢3 507
#37
RIVET,SPEC'L SHAPE
$6.55¢3 278
#38
DAMPER, PLATE 1
$2.14¢1 070
#39
SCOOP, AIR 2
$89.61¢44 804
#40
COLLAR
$9.41¢4 703
#41
Collar
$0.56¢282
#42
SCREW, WITH WASHER
$7.01¢3 507
#43
RIVET,SPEC'L SHAPE
$6.55¢3 278
#44
DAMPER, PLATE 1
$2.14¢1 070
#45
DAMPER, PLATE 2
$10.75¢5 376
#46
GRAPHIC 1
$46.51¢23 253
#47
GRAPHIC 2
$58.20¢29 101
