FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

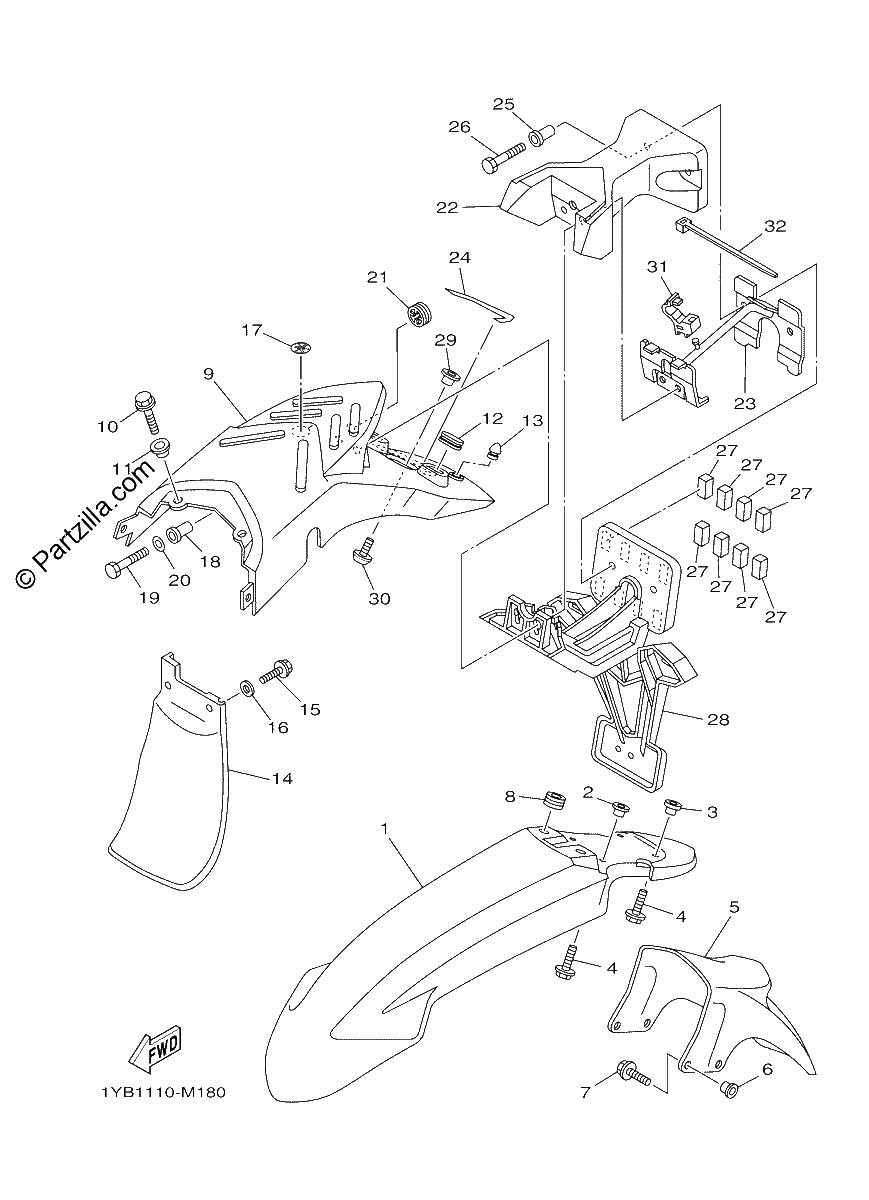

Diagrama de FENDER

Repuestos

#1
3C5-21511-70-00
FENDER, FRONT
$30.44¢15 220
1
#2
90387-06681-00
COLLAR
$7.24¢3 622
1
#3
90387-06117-00
COLLAR
$8.08¢4 042
1
#4
90119-06147-00
BOLT, WITH WASHER
$0.78¢391
1
#5
3C5-21556-00-00
FENDER, FRONT 2
$20.87¢10 436
1
#6
90387-06681-00
COLLAR
$7.24¢3 622
1
#7
90119-06147-00
BOLT, WITH WASHER
$0.78¢391
1
#8
90480-13398-00
GROMMET
$7.51¢3 755
1
#9
3C5-21611-00-00
Fender, rear
$50.13¢25 064
1
#10
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#11
90387-06107-00
COLLAR
$7.72¢3 858
1
#12
3C5-2163A-00-00
COVER, REAR FENDER 1
$7.57¢3 783
1
#13
90338-07018-00
PLUG
$6.36¢3 180
1
#14
5XT-21642-02-00
GUARD, FLAP
$41.38¢20 688
1
#15
95802-06016-00
Bolt, Flange
$1.64¢822
1
#16
90201-06055-00
WASHER, PLATE
$3.22¢1 610
1
#17
3C5-2411B-00-00
EMBLEM
$6.51¢3 254
1
#18
90387-0602Y-00
COLLAR
$8.42¢4 209
1
#19
97002-06030-00
BOLT
$3.29¢1 644
1
#20
92902-06600-00
WASHER, plate
$3.13¢1 564
1
#21
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#22
3C5-84527-10-00
DAMPER
$90.25¢45 126
1
#23
3C5-2161A-00-00
BRACKET 3
$147.43¢73 715
1
#24
3C5-21652-00-00
PROTECTOR
$13.52¢6 762
1
#25
90387-06M21-00
COLLAR
$8.53¢4 267
1
#26
97022-06030-00
BOLT, HEXAGON
$3.29¢1 644
1
#27
4D9-28415-00-00
DAMPER 1
$5.21¢2 605
1
#28
3C5-84551-00-00
BRACKET, LICENCE
$145.89¢72 944
1
#29
3C5-21634-00-00
COLLAR 2
$7.58¢3 789
1
#30
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#31
90464-05188-00
CLAMP
$3.36¢1 679
1
#32
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
