FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

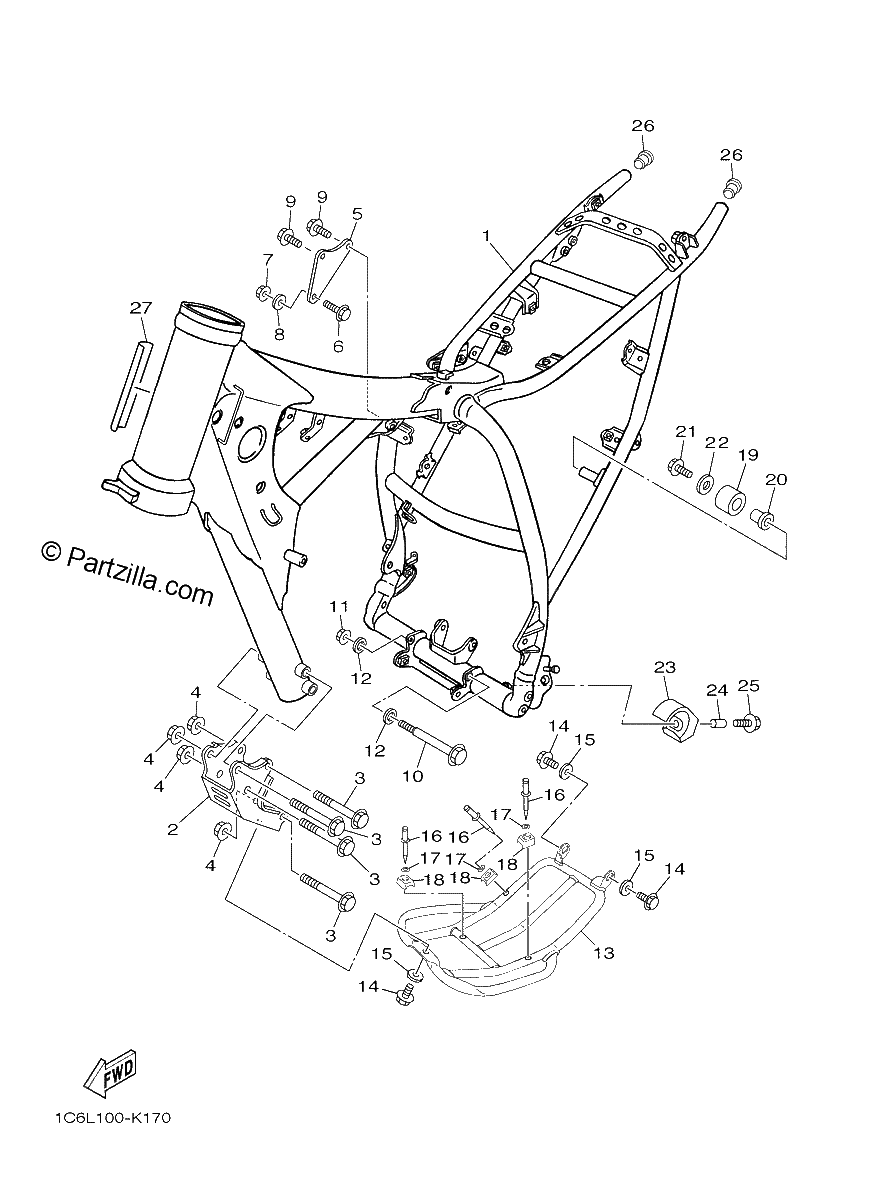

Diagrama de FRAME

Repuestos

#1
1C6-F1110-11-00
FRAME COMP.
$1400.69¢700 344
1
#2
1C6-F1316-10-00
STAY, ENGINE 2
$111.92¢55 959
1
#3
90105-08852-00
Bolt, Flange
$4.46¢2 231
1
#4
95607-08200-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#5
1C6-F1315-00-00
STAY, ENGINE 2
$2.14¢1 070
1
#6
9581M-08055-00
BOLT, FLANGE
$3.09¢1 547
1
#7
95607-08200-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#8
90201-09801-00
WASHER, plate
$2.56¢1 282
1
#9
90105-08846-00
BOLT, FLANGE
$3.44¢1 719
1
#10
90105-08856-00
Bolt, Flange
$5.34¢2 668
1
#11
95607-08200-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#12
90201-09801-00
WASHER, plate
$2.56¢1 282
1
#13
1C6-F1471-00-00
Protector, Engine
$104.91¢52 457
1
#14
9581M-10020-00
BOLT, FLANGE
$5.75¢2 875
1
#15
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#16
90267-40076-00
RIVET, BLIND
$6.75¢3 375
1
#17
90201-042E0-00
WASHER,PLATE
$7.23¢3 617
1
#18
1C6-F1485-00-00
DAMPER, RUBBER 1
$1.35¢673
1
#19
5RM-F2178-00-00
TENSIONER
$8.57¢4 284
1
#20
5RM-F2184-00-00
Bush
$1.60¢799
1
#21
9502M-08012-00
BOLT, FLANGE
$7.56¢3 778
1
#22
90201-08753-00
WASHER, PLATE
$6.92¢3 461
1
#23
1B2-F2178-00-00
TENSIONER
$18.78¢9 390
1
#24
90387-060A3-00
COLLAR
$7.91¢3 956
1
#25
90119-06118-00
BOLT, WITH WASHER
$6.75¢3 375
1
#26
90338-16148-00
PLUG,SPEC'L SHAPE
$10.87¢5 434
1
#27
30S-24141-00-00
PROTECTOR, FUEL TANK
$4.22¢2 110
1
