TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

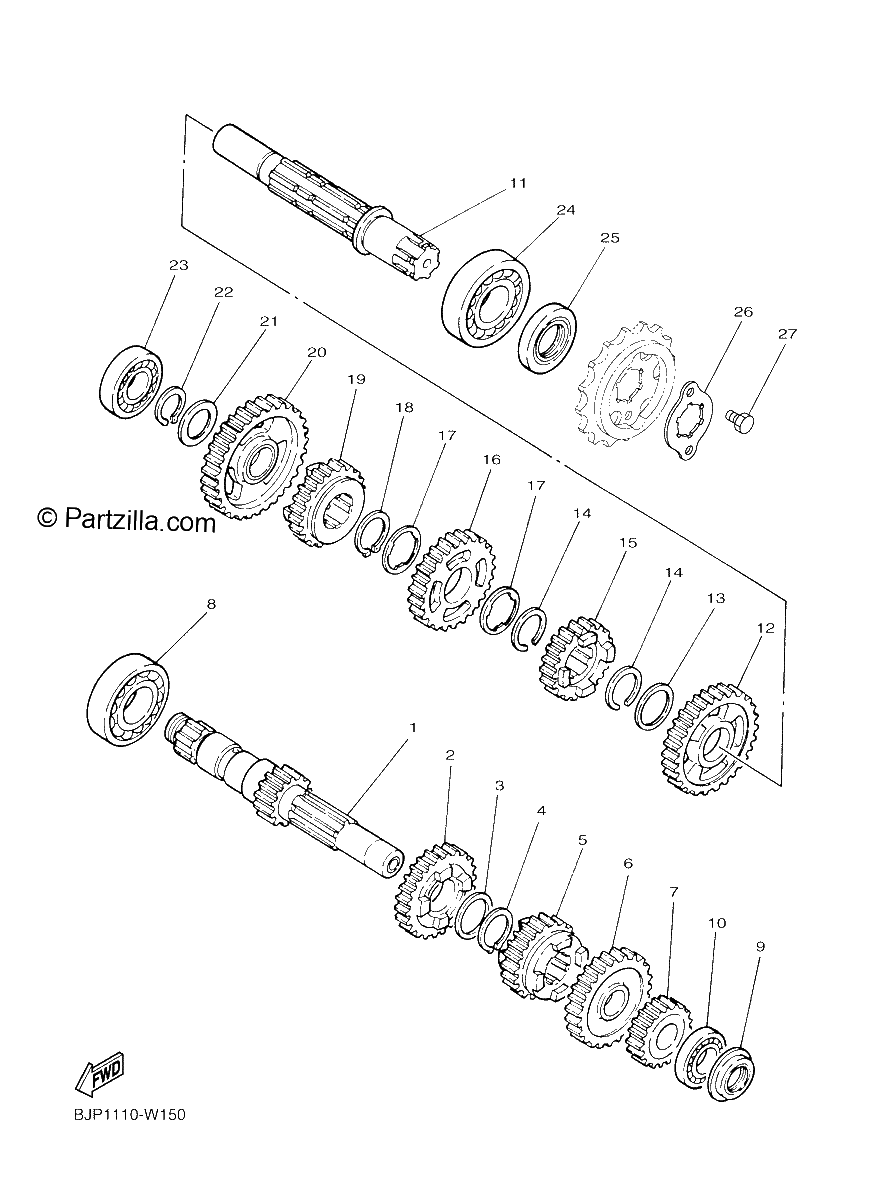

Diagrama de TRANSMISSION

Repuestos

#1
4DN-17411-00-00
AXLE, MAIN (14T)
$123.96¢61 979
1
#2
3Y1-17141-01-00
GEAR, 4TH PINION (26T)
$43.09¢21 545
1
#3
90201-22793-00
WASHER, PLATE
$6.52¢3 260
1
#4
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#5
3Y1-17131-01-00
GEAR, 3RD PINION (23T)
$60.58¢30 291
1
#6
3Y1-17151-01-00
GEAR, 5TH PINION (28T)
$49.65¢24 823
1
#7
3Y1-17121-01-YX
GEAR, 2ND PINION (19T)
$26.99¢13 495
1
#8
93306-20501-00
BEARING (B6205)
$37.35¢18 676
1
#9
93101-17093-00
OIL SEAL
$14.35¢7 176
1
#10
93306-00308-00
BEARING
$30.60¢15 301
1
#11
3Y1-17402-00-00
DRIVE AXLE ASSY
$206.15¢103 074
1
#12
3Y1-17221-02-00
GEAR, 2ND WHEEL (32T)
$59.56¢29 779
1
#13
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#14
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#15
3Y1-17251-01-00
GEAR, 5TH WHEEL
$58.99¢29 497
1
#16
3Y1-17231-02-00
GEAR, 3RD WHEEL (29T)
$74.78¢37 392
1
#17
90209-22191-00
WASHER
$6.36¢3 180
1
#18
99009-25400-00
CIRCLIP
$7.30¢3 651
1
#19
3Y1-17241-00-00
GEAR, 4TH WHEEL:nl: <span class="NLA">Not Available
No Disponible
1
#20
3Y1-17211-00-00
GEAR, 1ST WHEEL (37T)
$63.80¢31 901
1
#21
90201-20276-00
WASHER, PLATE (T=1.0)
$7.19¢3 594
1
#22
99009-20400-00
Circlip
$6.75¢3 375
1
#23
93306-00401-00
BEARING
$40.11¢20 056
1
#24
93306-30525-00
BEARING
$59.40¢29 699
1
#25
93102-25208-00
OIL SEAL
$12.65¢6 325
1
#26
3Y1-17456-00-00
HOLDER, SPROCKET
$6.99¢3 496
1
#27
97027-06010-00
BOLT(3JP)
$2.86¢1 432
1
