CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

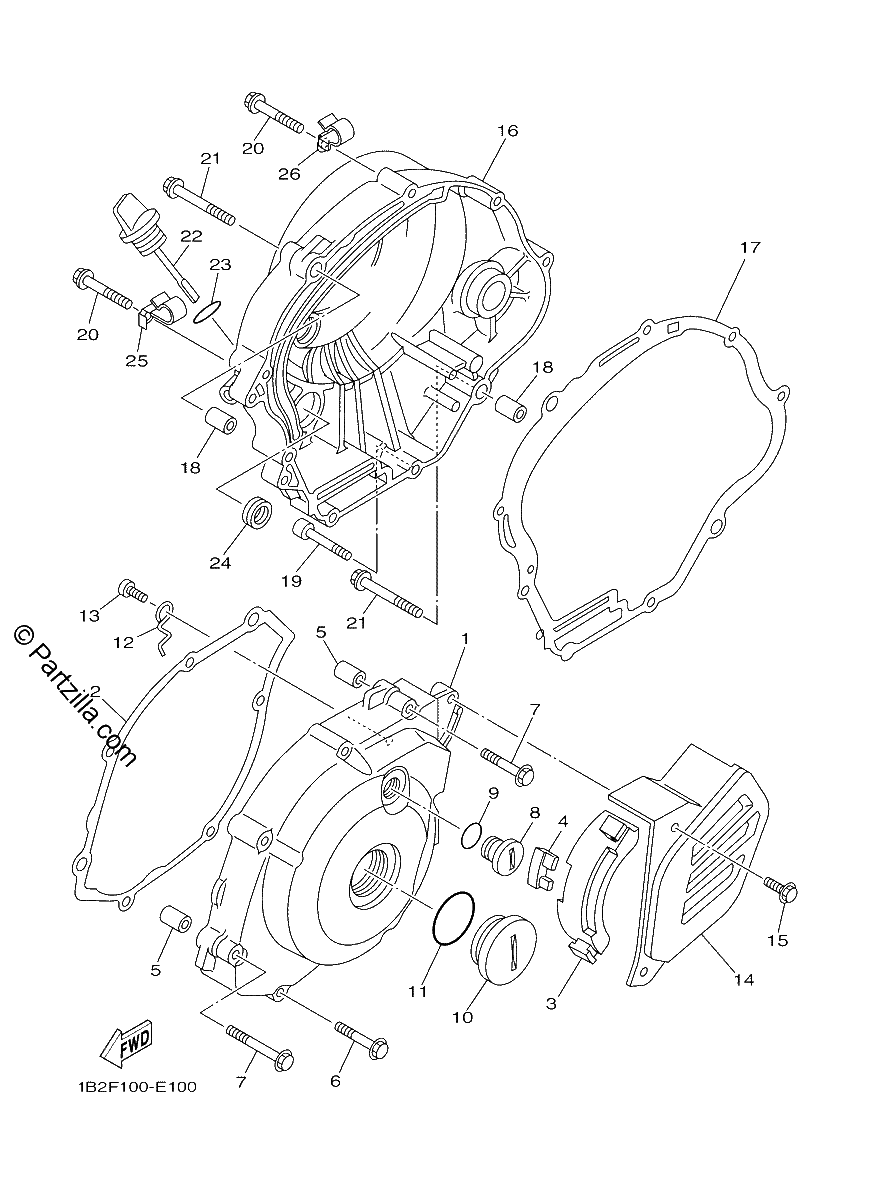

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1B2-E5411-00-WN
COVER, CRANKCASE 1 | CIS
$289.20¢144 601
1
#2
5HH-E5451-00-00
GASKET, CRANKCASE COVER 1
$3.74¢1 869
1
#3
1B2-E5377-00-00
GUIDE, INLET
$3.83¢1 915
1
#4
1B2-E5316-00-00
DAMPER 1
$1.26¢633
1
#5
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#6
9502M-06035-00
BOLT, FLANGE
$2.02¢1 012
1
#7
9502M-06045-00
BOLT, FLANGE
$2.71¢1 357
1
#8
90340-14W06-00
PLUG, STRAIGHT SCREW
$8.08¢4 042
1
#9
93210-14369-00
O-Ring
$6.36¢3 180
1
#10
90340-32W07-00
PLUG, STRAIGHT SCREW
$21.64¢10 821
1
#11
93210-32172-00
O-Ring
$6.32¢3 162
1
#12
5HH-E5191-00-00
PLATE
$0.87¢437
1
#13
9851M-06010-00
SCREW, PAN HEAD
$1.78¢891
1
#14
1B2-E5418-00-WN
COVER, CHAIN CASE | CIS
$26.52¢13 259
1
#15
9581M-06016-00
BOLT, FLANGE
$1.64¢822
1
#16
1B2-E5421-10-WN
COVER, CRANKCASE 2 | CIS
$60.79¢30 394
1
#17
5HH-E5461-00-00
GASKET, CRANKCASE COVER 2
$7.31¢3 657
1
#18
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#19
91380-06035-00
BOLT
$2.90¢1 449
1
#20
9502M-06035-00
BOLT, FLANGE
$2.02¢1 012
1
#21
9502M-06045-00
BOLT, FLANGE
$2.71¢1 357
1
#22
5HH-E5362-00-00
PLUG, OIL LEVEL
$6.19¢3 093
1
#23
93210-19123-00
O-Ring
$7.58¢3 789
1
#24
93101-10800-00
OIL SEAL
$6.73¢3 364
1
#25
90465-08043-00
CLAMP
$11.26¢5 629
1
#26
90465-08041-00
CLAMP
$11.50¢5 750
1
