TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

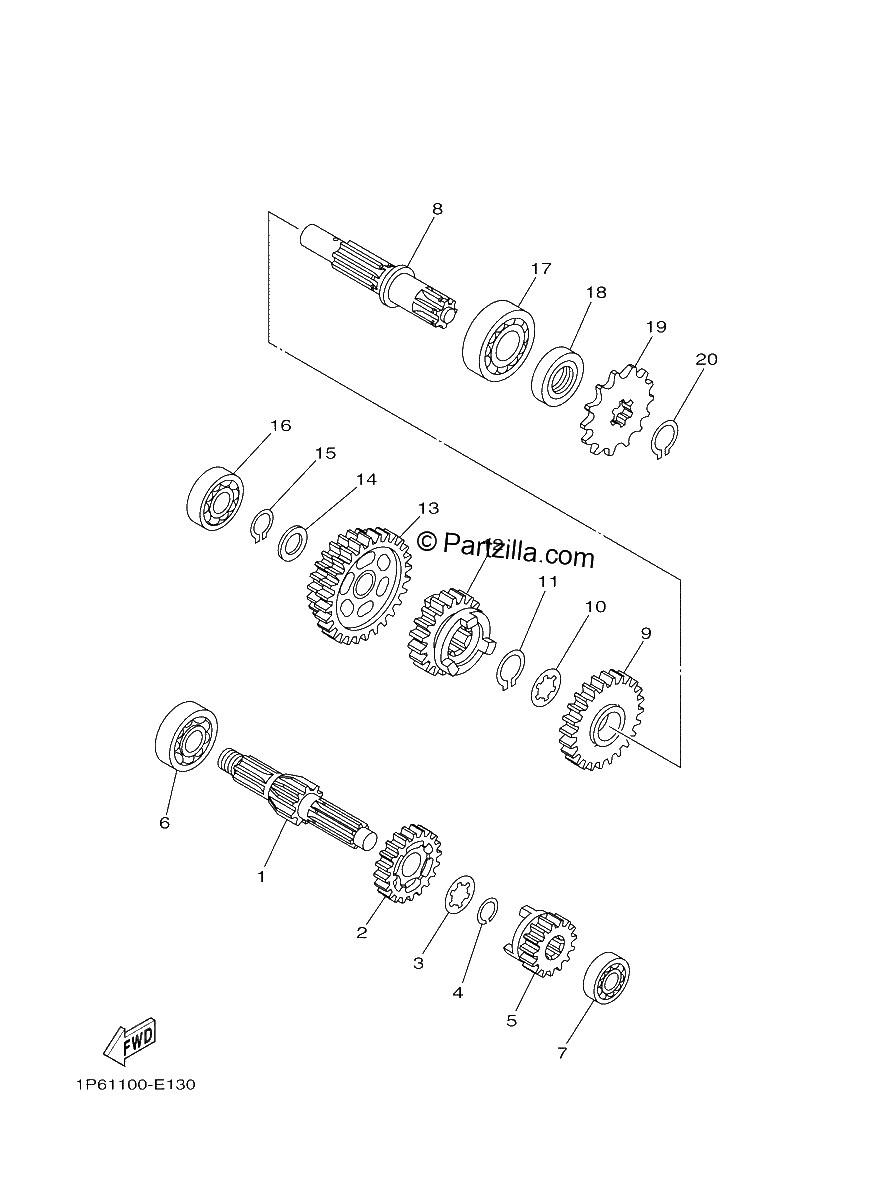

Diagrama de TRANSMISSION

Repuestos

#1
1P6-E7411-01-00
AXLE, MAIN (12T)
$79.54¢39 769
1
#2
1P6-E7131-20-00
GEAR, 3RD PINION (23T)
No Disponible
1
#3
1P6-E7648-00-00
WASHER
$5.88¢2 938
1
#4
1P6-E7217-00-00
CLIP, GEAR HOLD 1
$4.05¢2 025
1
#5
1P6-E7121-20-00
GEAR, 2ND PINION (19T)
$75.03¢37 513
1
#6
93306-253YJ-00
BEARING
$33.19¢16 594
1
#7
93306-001X3-00
BEARING
$31.11¢15 556
1
#8
1P6-E7421-01-00
AXLE, DRIVE
$102.24¢51 119
1
#9
1P6-E7221-20-00
GEAR, 2ND WHEEL (33T)
$96.24¢48 119
1
#10
1P6-E7658-00-00
WASHER, BELLEVILLE
$10.63¢5 313
1
#11
93410-20809-00
CIRCLIP
$3.11¢1 556
1
#12
1P6-E7231-20-00
GEAR, 3RD WHEEL (28T)
$94.60¢47 300
1
#13
1P6-E7211-20-00
GEAR, 1ST WHEEL (28T/39T)
$75.61¢37 806
1
#14
90201-15700-00
WASHER, PLATE (T=1.0)
$7.34¢3 669
1
#15
93440-15802-00
CIRCLIP
$7.34¢3 669
1
#16
93306-252Y6-00
BEARING
$30.56¢15 281
1
#17
93306-204YD-00
BEARING
$30.36¢15 181
1
#18
93102-20802-00
OIL SEAL
$10.86¢5 431
1
#19
93812-13812-00
SPROCKET, DRIVE (13T)
$22.69¢11 344
1
#20
93410-20809-00
CIRCLIP
$3.11¢1 556
1
