FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

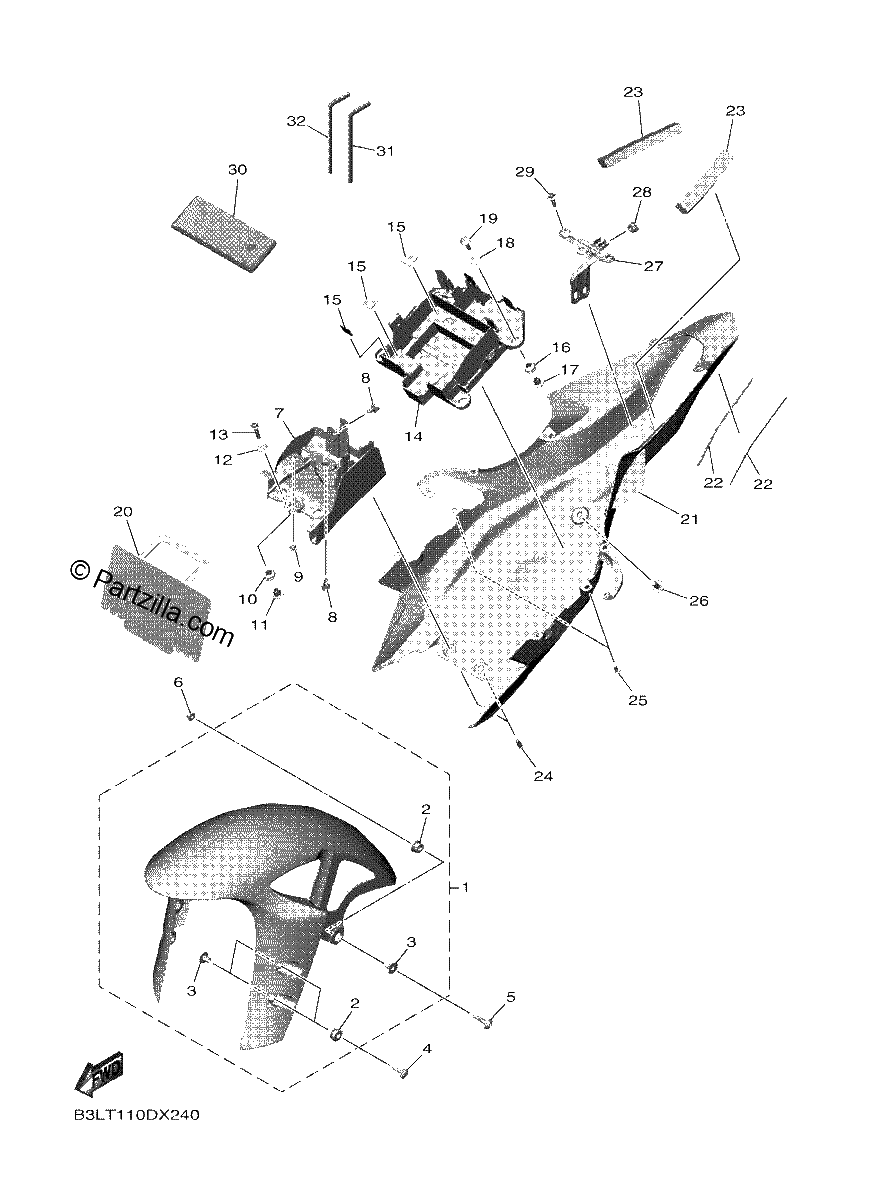

Diagrama de FENDER

Repuestos

#1
14B-Y2151-00-PH
FRONT FENDER ASSY
$192.46¢96 231
1
#2
90480-12072-00
GROMMET
$7.94¢3 969
1
#3
90387-065J6-00
Collar
$7.60¢3 800
1
#4
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
1
#6
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#7
B3L-8212B-00-00
BOX, BATTERY 1
$31.46¢15 731
1
#8
90105-06181-00
Bolt, Flange
$1.79¢894
1
#9
90338-07043-00
PLUG
$6.55¢3 275
1
#10
90480-13018-00
GROMMET
$7.43¢3 713
1
#11
90387-073M2-00
COLLAR
$8.70¢4 350
1
#12
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#13
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$9.70¢4 850
1
#14
2CR-8212C-00-00
BOX, BATTERY 2
$27.35¢13 675
1
#15
13S-21649-00-00
DAMPER
$7.86¢3 931
1
#16
90480-13018-00
GROMMET
$7.43¢3 713
1
#17
90387-073M2-00
COLLAR
$8.70¢4 350
1
#18
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#19
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$9.70¢4 850
1
#20
B3L-21652-00-00
Protector
$14.78¢7 388
1
#21
2CR-21611-01-00
FENDER, REAR
$44.70¢22 350
1
#22
3C5-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#23
90520-20003-00
DAMPER, PLATE
$7.46¢3 731
1
#24
90269-06008-00
RIVET
$8.80¢4 400
1
#25
90269-05005-00
RIVET
$3.57¢1 787
1
#26
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#27
2CR-2117E-01-00
BRACKET, TAILLIGHT
$25.79¢12 894
1
#28
90480-10003-00
GROMMET
$7.48¢3 738
1
#29
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#30
2CR-28100-01-00
TOOL KIT
$64.41¢32 206
1
#31
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#32
14B-28164-00-00
WRENCH, HEXAGON 8
$4.49¢2 244
1
