SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

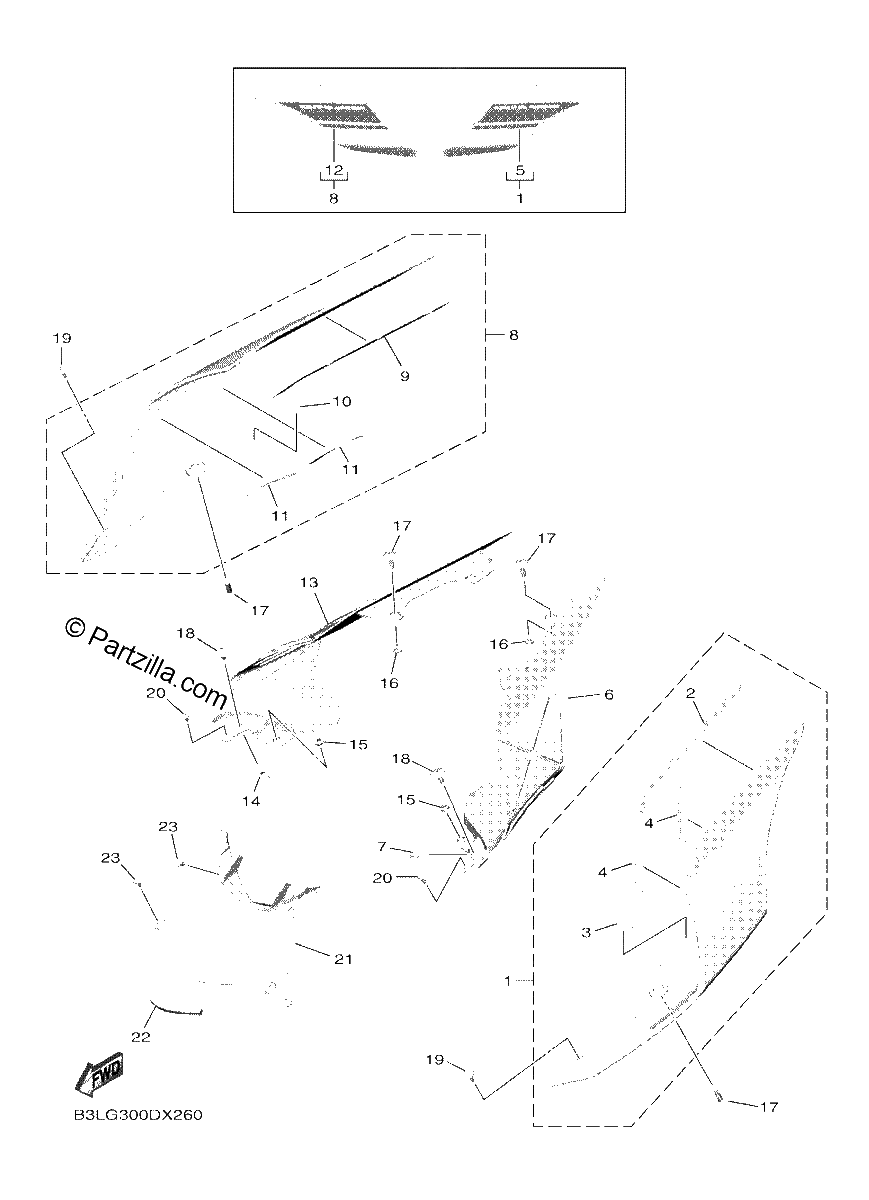

Diagrama de SIDE COVER

Repuestos

#1
2CR-W2171-F0-GE
COVER, SIDE 1 (SILKY WHITE)
$214.91¢107 456
1
#2
2CR-2173T-01-00
TAPE 1
$8.15¢4 077
1
#3
2CR-2173R-01-00
TAPE 3
$2.08¢1 041
1
#4
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#5
B3L-2173E-20-00
. GRAPHIC 1
$30.37¢15 186
1
#6
2CR-21731-00-00
COVER, SIDE 3
$28.69¢14 346
1
#7
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#8
2CR-W2172-F0-GE
SIDE COVER 2 (SILKY WHITE)
$238.90¢119 450
1
#9
2CR-2173U-01-00
TAPE 2
$10.59¢5 296
1
#10
2CR-2173R-01-00
TAPE 3
$2.08¢1 041
1
#11
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#12
B3L-2173F-20-00
. GRAPHIC 2
$34.64¢17 319
1
#13
2CR-21741-00-00
COVER, SIDE 4
$25.96¢12 978
1
#14
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#15
90387-06022-00
COLLAR
$5.93¢2 967
1
#16
90387-06069-00
COLLAR
$7.28¢3 640
1
#17
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.44¢2 720
1
#18
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#19
90269-06046-00
RIVET
$5.93¢2 967
1
#20
90269-05005-00
RIVET
$3.29¢1 644
1
#21
2CR-2171E-01-00
COVER, SIDE 5
$35.56¢17 779
1
#22
4C8-21747-00-00
DAMPER
$6.51¢3 254
1
#23
90269-05001-00
RIVET
$2.50¢1 248
1
