FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

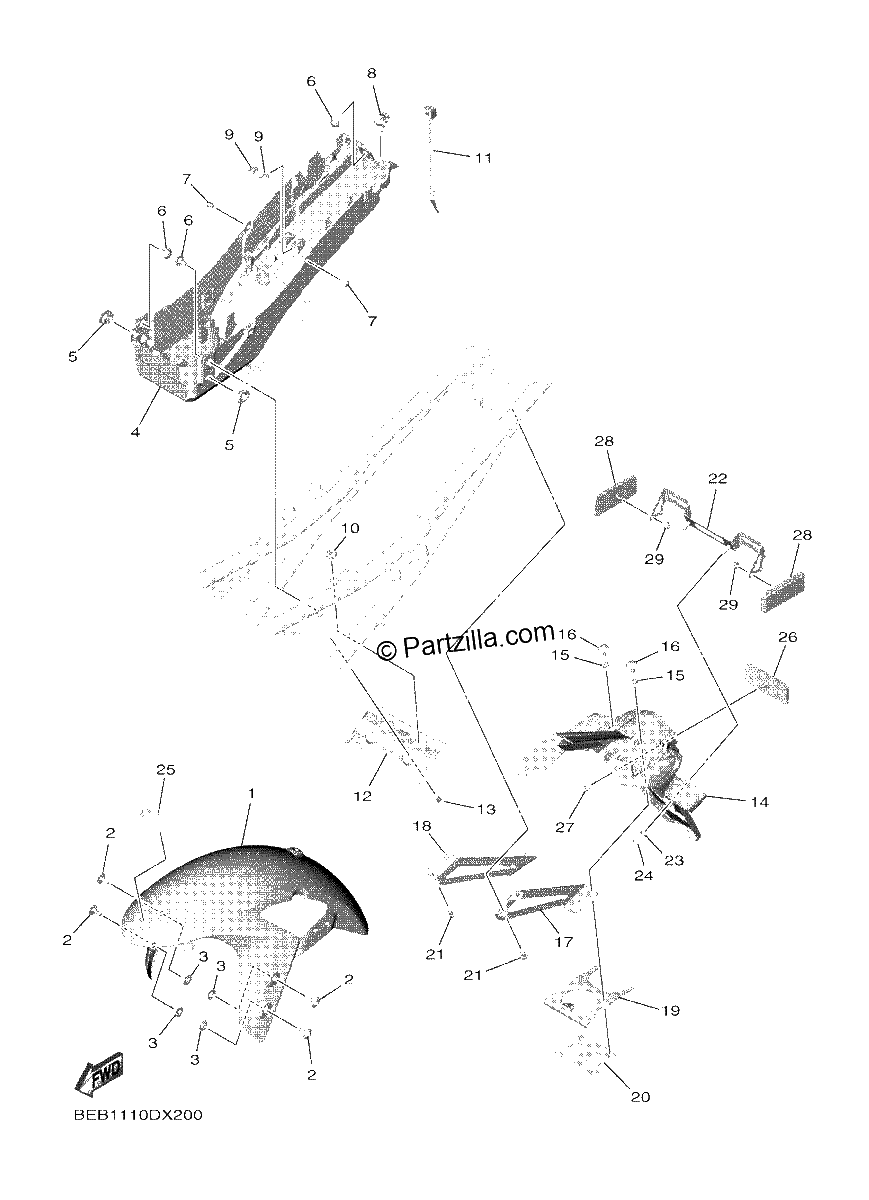

Diagrama de FENDER

Repuestos

#1
BEB-21511-00-P0
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$151.88¢75 938
1
#2
90111-06196-00
BOLT, HEXAGON SOCKET BUTTON
$2.07¢1 037
1
#3
90387-07717-00
COLLAR
$7.34¢3 669
1
#4
BEB-8212B-00-00
BOX, BATTERY 1
$48.86¢24 431
1
#5
90480-01559-00
Grommet
$5.72¢2 863
1
#6
90109-06202-00
BOLT
$3.24¢1 619
1
#7
90338-06018-00
PLUG
$6.76¢3 381
1
#8
90464-18002-00
CLAMP
$8.25¢4 125
1
#9
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#10
90480-14100-00
GROMMET
$7.69¢3 844
1
#11
90465-13275-00
CLAMP
$5.19¢2 594
1
#12
1WS-21642-01-00
GUARD, FLAP
$6.76¢3 381
1
#13
90269-06002-00
RIVET
$7.34¢3 669
1
#14
BEB-21629-00-00
GUARD, MUD
$80.36¢40 181
1
#15
90387-06372-00
COLLAR
$6.45¢3 225
1
#16
90111-06089-00
BOLT,HEX. SOCKET BUTTON
$7.46¢3 731
1
#17
BEB-2164F-00-00
STAY 1
$25.36¢12 681
1
#18
BEB-2164G-00-00
STAY 2
$23.20¢11 600
1
#19
BAT-21682-00-00
STAY, PLATE
$14.68¢7 338
1
#20
BAT-2161G-00-00
BRACKET 6
$10.63¢5 313
1
#21
90105-06226-00
Bolt, Flange
$1.07¢538
1
#22
2RC-84751-00-00
BRACKET, LICENSE
$35.44¢17 719
1
#23
92902-06600-00
WASHER, plate
$3.40¢1 700
1
#24
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#25
1RC-2153E-30-00
EMBLEM, YAMAHA | UR FOR DPBMC
$7.08¢3 538
1
#26
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#27
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#28
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#29
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
