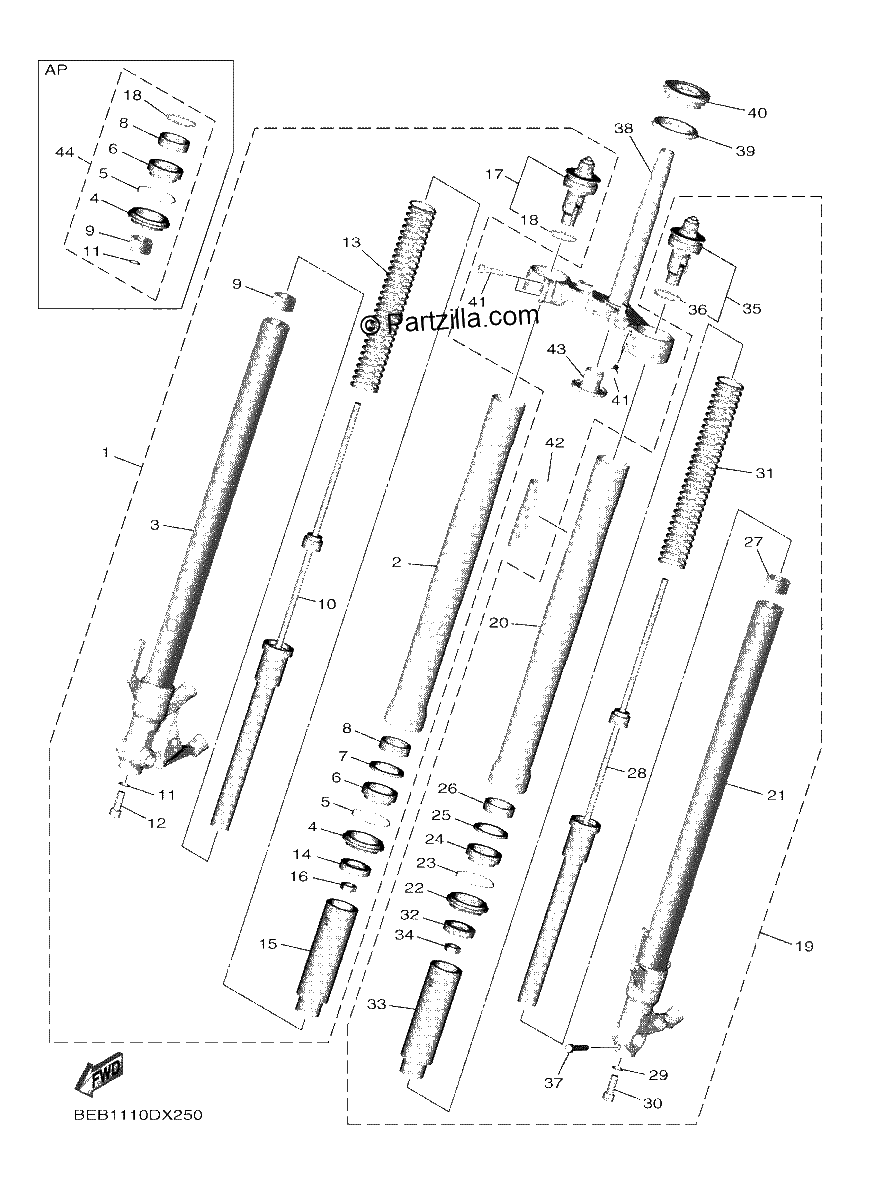

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H) *{UR FOR DPBMC}*
$1054.54¢527 269
#2
TUBE, OUTER (LH) *{UR FOR DPBMC}*
$441.77¢220 886
#3
INNER TUBE COMP2
$424.29¢212 146
#4
SEAL, DUST
$21.36¢10 678
#5
RING, SNAP
$7.24¢3 622
#6
OIL SEAL
$26.59¢13 294
#7
WASHER, OIL SEAL
$24.18¢12 092
#8
METAL, SLIDE 1
$13.57¢6 785
#9
METAL, SLIDE
$22.33¢11 167
#10
CYLINDER COMP, FRONT FORK
$386.24¢193 120
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$82.13¢41 067
#14
WASHER
$11.73¢5 865
#15
SPACER
$59.66¢29 831
#16
NUT
$7.28¢3 640
#17
BOLT, CAP
$356.81¢178 405
#18
. . ..O-RING
$4.13¢2 064
#19
FRONT FORK ASSY (L.H) *{UR FOR DPBMC}*
$790.90¢395 451
#20
TUBE, OUTER (LH) *{UR FOR DPBMC}*
$441.77¢220 886
#21
INNER TUBE COMP1
$424.29¢212 146
#22
SEAL, DUST
$21.36¢10 678
#23
RING, SNAP
$7.24¢3 622
#24
OIL SEAL
$26.59¢13 294
#25
WASHER, OIL SEAL
$24.18¢12 092
#26
METAL, SLIDE 1
$13.57¢6 785
#27
METAL, SLIDE
$22.33¢11 167
#28
CYLINDER COMP, FRONT FORK
$386.24¢193 120
#29
GASKET | (KYB)
$15.72¢7 860
#30
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#31
SPRING, FRONT FORK
$82.13¢41 067
#32
WASHER
$11.73¢5 865
#33
SPACER
$59.66¢29 831
#34
NUT
$7.28¢3 640
#35
BOLT, CAP
$356.81¢178 405
#36
. . ..O-RING
$4.13¢2 064
#37
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#38
UNDER BRACKET COMP.
$417.63¢208 817
#39
SEAL, STEERING
$23.48¢11 742
#40
BEARING
$60.89¢30 446
#41
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#42
PROTECTOR
$14.04¢7 021
#43
COVER, UNDER 1
$13.48¢6 739
#44
FORK SEALS KIT *{AP}*
$55.11¢27 554
