COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

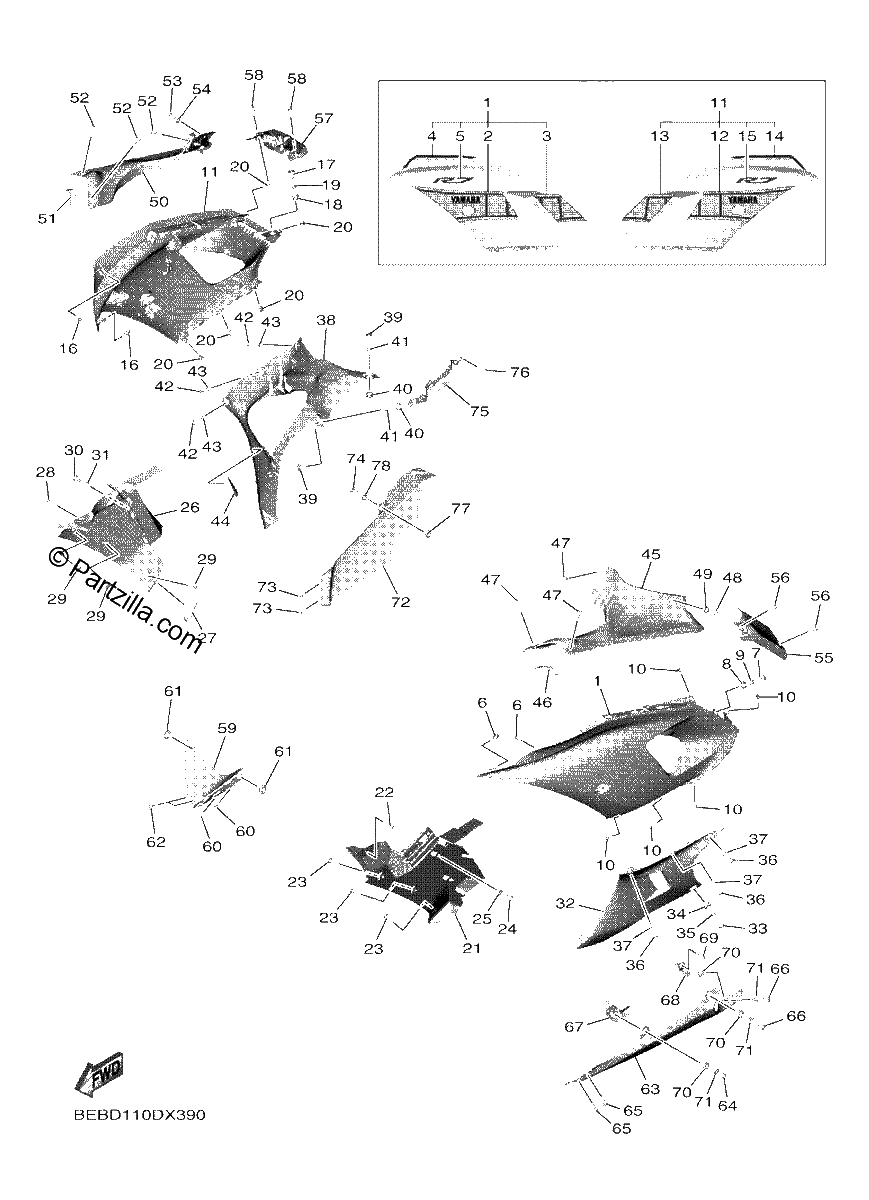

Diagrama de COWLING 2

Repuestos

#1
BEB-W283U-20-GE
PANEL ASSY 1 (SILKY WHITE)
$247.20¢123 600
1
#2
BEB-28391-00-00
. GRAPHIC 1
$63.75¢31 875
1
#3
BEB-28393-00-00
. GRAPHIC 3
$41.11¢20 556
1
#4
BEB-28398-00-00
. GRAPHIC 5
$34.04¢17 019
1
#5
BEB-28328-00-00
. EMBLEM
$17.49¢8 744
1
#6
90464-07018-00
Clamp
$0.72¢363
1
#7
90111-06040-00
bolt
$4.00¢2 000
1
#8
90480-14003-00
GROMMET
$7.43¢3 713
1
#9
90387-06260-00
COLLAR
$7.43¢3 713
1
#10
90183-05042-00
NUT, SPRING
$1.25¢625
1
#11
BEB-W283V-20-GE
PANEL ASSY 2 (SILKY WHITE)
$247.20¢123 600
1
#12
BEB-28392-00-00
. GRAPHIC 2
$75.38¢37 688
1
#13
BEB-28394-00-00
. GRAPHIC 4
$41.11¢20 556
1
#14
BEB-28399-00-00
. GRAPHIC 6
$31.20¢15 600
1
#15
BEB-28328-00-00
. EMBLEM
$17.49¢8 744
1
#16
90464-07018-00
Clamp
$0.72¢363
1
#17
90111-06040-00
bolt
$4.00¢2 000
1
#18
90480-14003-00
GROMMET
$7.43¢3 713
1
#19
90387-06260-00
COLLAR
$7.43¢3 713
1
#20
90183-05042-00
NUT, SPRING
$1.25¢625
1
#21
BEB-2836K-00-00
PANEL, INNER 1
$37.55¢18 775
1
#22
90269-06008-00
RIVET
$8.80¢4 400
1
#23
90269-06021-00
RIVET
$2.31¢1 156
1
#24
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
1
#25
90387-06130-00
Collar
$8.63¢4 313
1
#26
BEB-2836L-00-00
PANEL, INNER 2
$27.39¢13 694
1
#27
BEB-28227-00-00
DAMPER 2
$4.54¢2 269
1
#28
90269-06008-00
RIVET
$8.80¢4 400
1
#29
90269-06021-00
RIVET
$2.31¢1 156
1
#30
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
1
#31
90387-06130-00
Collar
$8.63¢4 313
1
#32
BEB-2172G-00-GE
PANEL 3 (SILKY WHITE)
$259.63¢129 813
1
#33
90111-06040-00
bolt
$4.00¢2 000
1
#34
90480-14003-00
GROMMET
$7.43¢3 713
1
#35
90387-06260-00
COLLAR
$7.43¢3 713
1
#36
90167-05076-00
SCREW, TAPPING
$2.11¢1 056
1
#37
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#38
BEB-2172H-00-GE
PANEL 4 (SILKY WHITE)
$242.29¢121 144
1
#39
90111-06040-00
bolt
$4.00¢2 000
1
#40
90480-14003-00
GROMMET
$7.43¢3 713
1
#41
90387-06260-00
COLLAR
$7.43¢3 713
1
#42
90167-05076-00
SCREW, TAPPING
$2.11¢1 056
1
#43
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#44
BEB-2838G-00-00
SEAT 1
$4.75¢2 375
1
#45
BEB-2837L-00-P2
PANEL, CONSOLE 1 (MAT BLACK 2)
$151.95¢75 975
1
#46
7NJ-14757-00-00
DAMPER, MUFFLER 2
$3.50¢1 750
1
#47
90269-06001-00
RIVET
$6.45¢3 225
1
#48
90167-05076-00
SCREW, TAPPING
$2.11¢1 056
1
#49
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#50
BEB-2837M-00-P2
PANEL, CONSOLE 2 (MAT BLACK 2)
$151.95¢75 975
1
#51
7NJ-14757-00-00
DAMPER, MUFFLER 2
$3.50¢1 750
1
#52
90269-06001-00
RIVET
$6.45¢3 225
1
#53
90167-05076-00
SCREW, TAPPING
$2.11¢1 056
1
#54
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#55
BEB-28219-00-00
COVER 1
$9.64¢4 819
1
#56
90167-05080-00
SCREW, TAPPING
$2.26¢1 131
1
#57
BEB-28229-00-00
COVER 2
$9.64¢4 819
1
#58
90167-05080-00
SCREW, TAPPING
$2.26¢1 131
1
#59
BEB-2836M-00-00
PANEL, INNER 3
$24.16¢12 081
1
#60
90183-05042-00
NUT, SPRING
$1.25¢625
1
#61
90480-01559-00
Grommet
$5.72¢2 863
1
#62
90269-06021-00
RIVET
$2.31¢1 156
1
#63
BEB-2834V-00-0X
PROTECTOR 1
$326.15¢163 075
1
#64
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#65
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#66
90111-06040-00
bolt
$4.00¢2 000
1
#67
BEB-2836A-00-00
BRACKET 1
$20.29¢10 144
1
#68
BEB-2836E-00-00
BRACKET 2
$9.04¢4 519
1
#69
95027-06016-00
Bolt, Flange
$7.48¢3 738
1
#70
90480-14477-00
GROMMET
$3.84¢1 919
1
#71
90387-06323-00
Collar
$5.61¢2 806
1
#72
BEB-2834W-00-0X
PROTECTOR 2
$393.22¢196 612
1
#73
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#74
90111-06040-00
bolt
$4.00¢2 000
1
#75
BEB-2836F-00-00
BRACKET 3
$63.81¢31 906
1
#76
90464-36005-00
CLAMP
$1.20¢600
1
#77
90480-14477-00
GROMMET
$3.84¢1 919
1
#78
90387-06323-00
Collar
$5.61¢2 806
1
