CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

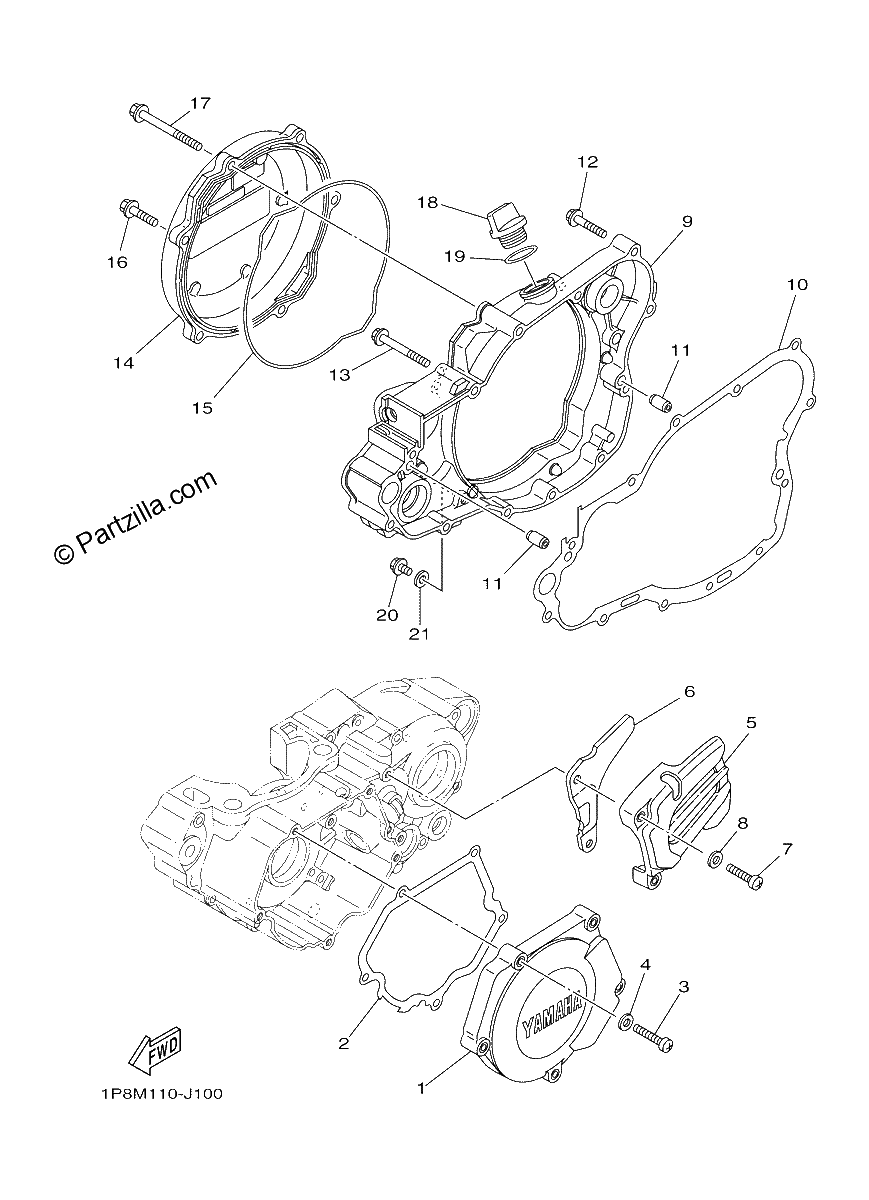

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5CU-15411-10-00
COVER, CRANKCASE 1
$103.90¢51 951
1
#2
5CU-15451-00-00
Gasket, Crankcase
$19.79¢9 896
1
#3
92502-06030-00
SCREW, PAN HEAD
$5.08¢2 541
1
#4
92902-06600-00
WASHER, plate
$3.13¢1 564
1
#5
1P8-15421-10-00
COVER, CRANKCASE 2
$68.60¢34 299
1
#6
5HC-17466-00-00
Guide, Chain
$33.55¢16 773
1
#7
92502-06030-00
SCREW, PAN HEAD
$5.08¢2 541
1
#8
92902-06600-00
WASHER, plate
$3.13¢1 564
1
#9
5NX-15431-01-00
COVER, CRANKCASE 3
$287.27¢143 635
1
#10
5CU-15462-00-00
Gasket, Crankcase
$17.39¢8 694
1
#11
99530-08016-00
PIN, DOWEL
$6.18¢3 088
1
#12
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#13
95022-06050-00
BOLT, FLANGE
$1.56¢782
1
#14
5MW-15415-20-00
COVER, GENERATOR
$179.94¢89 970
1
#15
5CU-15463-01-00
GASKET (replaces 5CU-15463-00-00)
$11.76¢5 882
1
#16
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#17
95022-06065-00
BOLT, FLANGE
$1.94¢972
1
#18
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#19
93210-19123-00
O-Ring
$7.58¢3 789
1
#20
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#21
90430-06014-00
GASKET
$7.59¢3 795
1
