ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

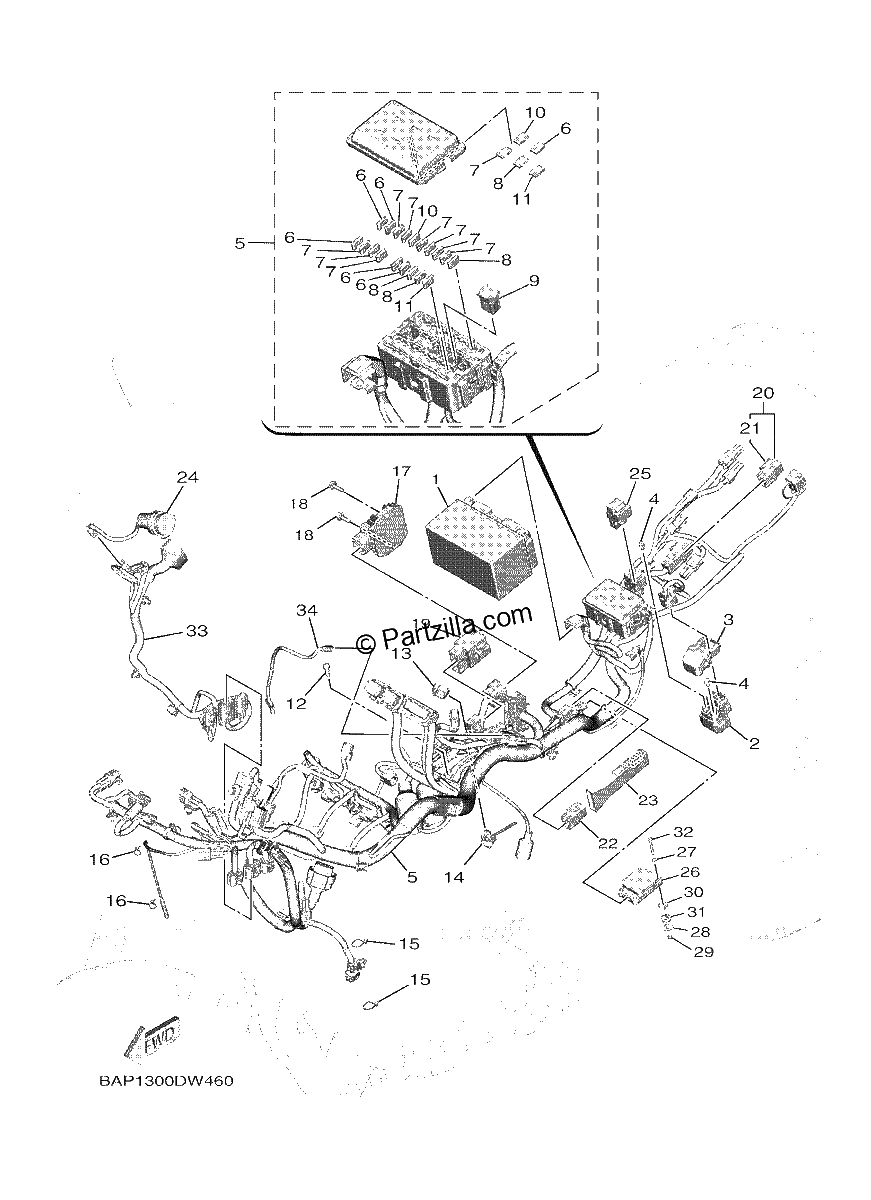

Diagrama de ELECTRICAL 1

Repuestos

#1
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#2
B7N-81940-00-00
STARTER RELAY ASSY
$57.19¢28 595
1
#3
5SL-82119-30-00
COVER, LEAD WIRE
$4.66¢2 329
1
#4
90105-06230-00
BOLT, FLANGE
$0.41¢207
1
#5
BAP-82590-10-00
WIRE HARNESS ASSY
$1872.19¢936 094
1
#6
B7N-82151-80-00
. FUSE (2A)
$12.67¢6 336
1
#7
B7N-82151-00-00
. FUSE (75A)
$12.67¢6 336
1
#8
B7N-82151-10-00
. FUSE (15A)
$12.67¢6 336
1
#9
B7N-82151-B0-00
. FUSE (50A)
$16.16¢8 079
1
#10
B7N-82151-30-00
. FUSE (10A)
$12.67¢6 336
1
#11
B7N-82151-60-00
. FUSE (30A)
$12.67¢6 336
1
#12
91312-06016-00
BOLT
$5.37¢2 685
1
#13
90464-16003-00
CLAMP
$6.87¢3 433
1
#14
90464-25009-00
CLAMP
$6.96¢3 479
1
#15
90465-10098-00
CLAMP
$2.55¢1 277
1
#16
90465-10098-00
CLAMP
$2.55¢1 277
1
#17
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$164.19¢82 093
1
#18
95D37-06020-00
BOLT, FLANGE DEEP RECESS
$0.44¢218
1
#19
5VK-81950-41-00
RELAY ASSY (replaces 5VK-81950-40-00)
$65.04¢32 522
1
#20
1ST-81950-00-00
RELAY ASSY (1ST-00)
$16.38¢8 188
1
#21
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#22
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$20.00¢9 999
1
#23
B5U-82599-00-00
COVER, CONNECTOR
$9.80¢4 899
1
#24
B5U-8254B-00-00
TERMINAL COMP.
$41.87¢20 936
1
#25
5DM-81950-01-00
RELAY ASSY (replaces 5DM-81950-00-00)
$27.11¢13 553
1
#26
B7N-8593A-00-00
INERTIAL MEASURE, UNIT ASSY
$487.43¢243 714
1
#27
92902-04600-00
WASHER, PLATE
$1.10¢552
1
#28
90201-04034-00
WASHER, PLATE
$1.28¢638
1
#29
95607-04100-00
.. NUT, U
$7.84¢3 922
1
#30
B7N-83522-00-00
COLLAR
$2.60¢1 299
1
#31
B7N-8A8D0-00-00
GROMMET
$3.55¢1 777
1
#32
91317-04030-00
BOLT,HEX.SOCKET HEAD
$4.00¢2 001
1
#33
B5U-82509-20-00
WIRE, SUB LEAD
$128.96¢64 480
1
#34
BAP-82509-30-00
WIRE, SUB LEAD
$17.58¢8 792
1
