REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

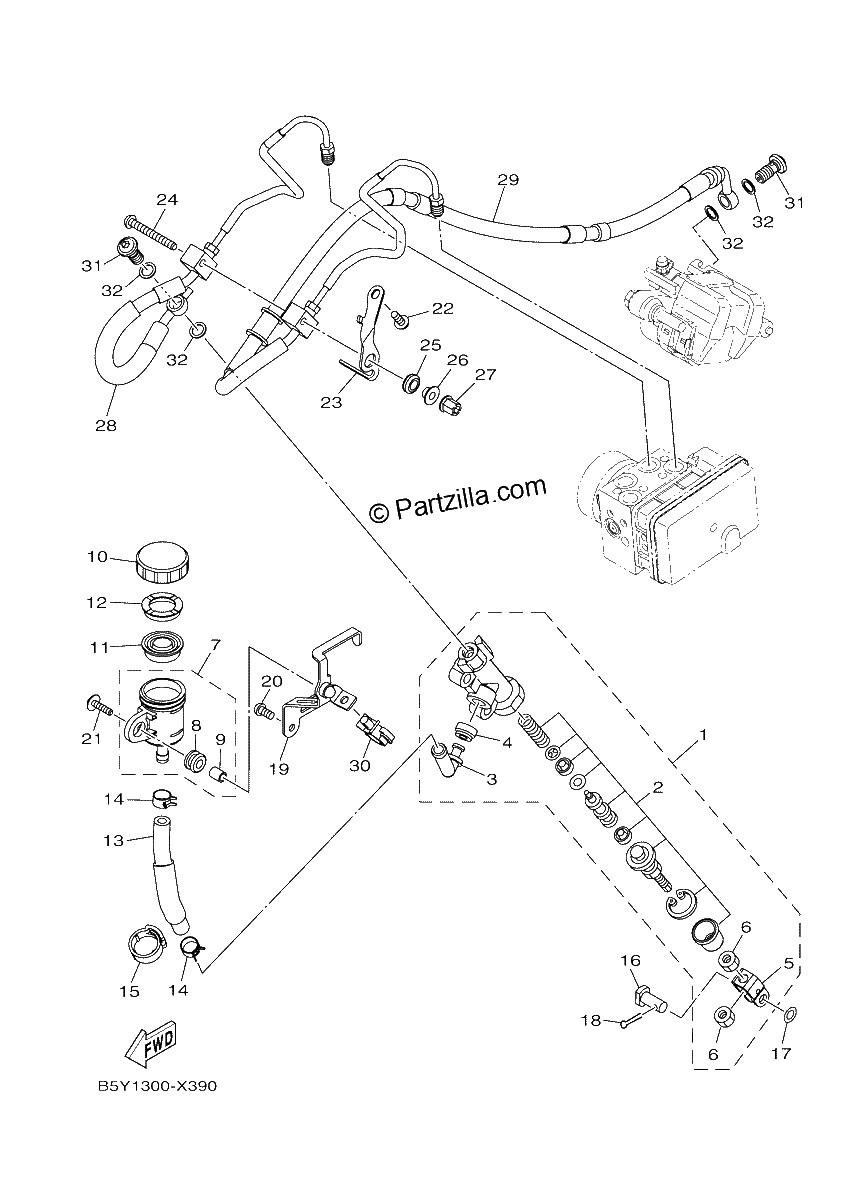

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
56P-2583V-00-00
REAR MASTER CYLINDER ASSY.
$160.45¢80 225
1
#2
56P-25808-50-00
CYLINDER KIT, MASTER
$100.86¢50 431
1
#3
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
B5Y-25894-00-00
TANK, RESERVOIR
$61.33¢30 663
1
#8
5SL-26326-00-00
. .GROMMET This item has been discontinued and may not be available. Contact us for more information.
$4.86¢2 431
1
#9
5SL-26277-00-00
. .COLLAR This item has been discontinued and may not be available. Contact us for more information.
$4.28¢2 138
1
#10
B5Y-25852-00-00
CAP, RESERVOIR
$9.89¢4 944
1
#11
B5Y-25854-00-00
DIAPHRAGM, RESERVOIR
$17.60¢8 800
1
#12
B5Y-25855-00-00
BUSH,DIAPHRAGM
$29.77¢14 888
1
#13
B67-25895-00-00
HOSE, RESERVOIR
$12.54¢6 269
1
#14
90467-120A3-00
CLIP
$6.99¢3 494
1
#15
90464-16001-00
CLAMP
$2.04¢1 019
1
#16
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#17
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#18
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#19
B5Y-21228-00-00
BRACKET, RESERVE TANK
$26.48¢13 238
1
#20
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#21
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#22
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#23
B5Y-2122A-00-00
STAY 1
$15.66¢7 831
1
#24
90109-06N29-00
BOLT
$4.70¢2 350
1
#25
90480-12024-00
GROMMET
$1.59¢794
1
#26
90387-06142-00
COLLAR
$4.59¢2 294
1
#27
90179-06033-00
NUT
$4.76¢2 381
1
#28
B5Y-2581J-00-00
HOSE, BRAKE 4
$111.66¢55 831
1
#29
B5Y-2581K-00-00
HOSE, BRAKE 5
$176.63¢88 313
1
#30
90464-14013-00
CLAMP
$3.50¢1 750
1
#31
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#32
90430-10005-00
GASKET
$8.39¢4 194
1
