ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

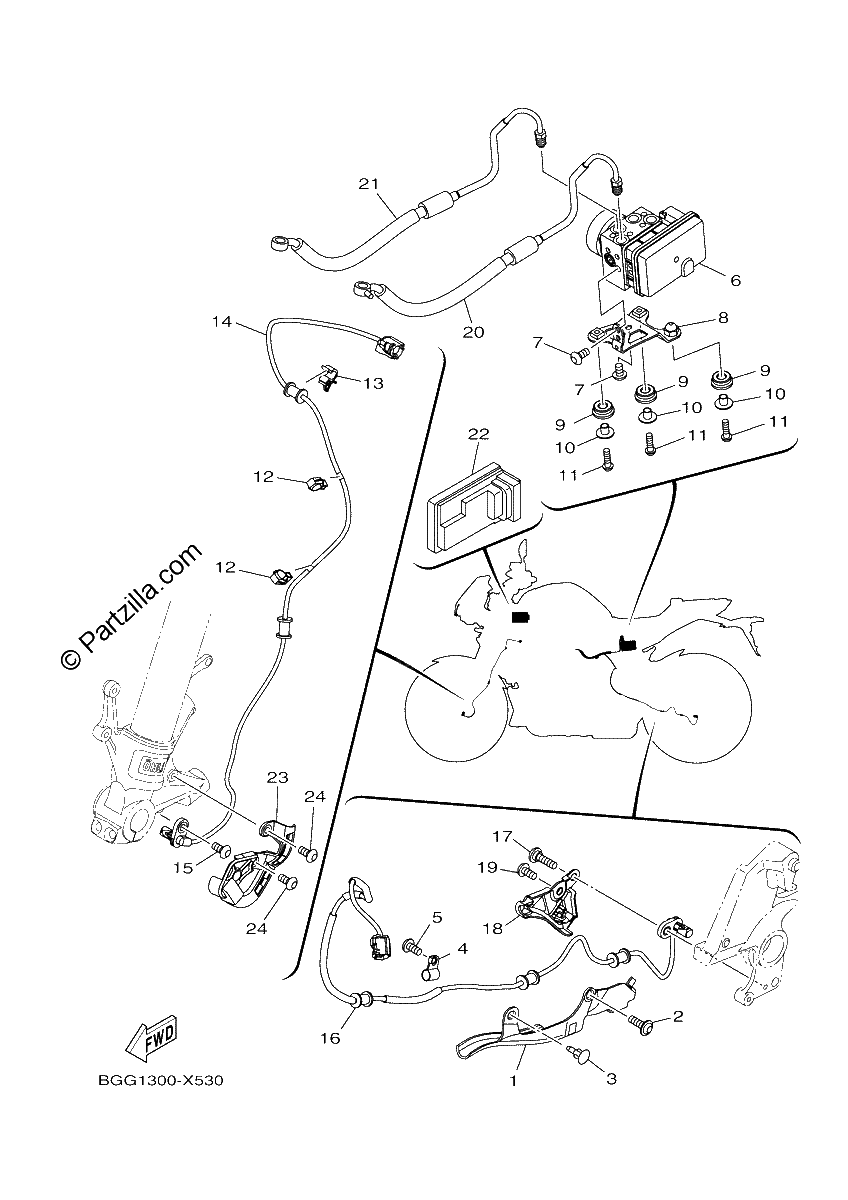

Diagrama de ELECTRICAL 3

Repuestos

#1
2CR-2219X-00-00
COVER
$17.36¢8 681
1
#2
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#3
90269-07007-00
RIVET
$4.00¢2 000
1
#4
B67-2216F-00-00
HOOK
$10.00¢5 000
1
#5
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#6
B5Y-85930-09-00
HYDRAULIC UNIT ASSY
$1381.24¢690 619
1
#7
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#8
B5Y-85991-00-00
BRACKET, UNIT
$25.74¢12 869
1
#9
90480-13567-00
GROMMET
$4.63¢2 313
1
#10
90387-067N5-00
COLLAR
$6.15¢3 075
1
#11
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#12
90464-12013-00
Clamp
$7.84¢3 919
1
#13
90464-09129-00
CLAMP
$2.20¢1 100
1
#14
2KS-85970-01-00
WHEEL SENSOR ASSY, FRONT
$194.19¢97 094
1
#15
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#16
2CR-85980-01-00
WHEEL SENSOR ASSY, REAR
$174.59¢87 294
1
#17
90109-06234-00
BOLT
$7.24¢3 619
1
#18
2CR-27491-01-00
PROTECTOR
$16.25¢8 125
1
#19
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#20
B5Y-25871-00-00
PIPE, BRAKE
$71.10¢35 550
1
#21
B5Y-25882-00-00
PIPE, BRAKE 2
$66.91¢33 456
1
#22
BGG-85902-00-00
SUSPENSION CONTROL UNIT ASSY
$1152.49¢576 244
1
#23
2KS-2315H-01-00
PROTECTOR 1
$34.16¢17 081
1
#24
92012-06014-00
BOLT, BUTTON HEAD
$7.35¢3 675
1
