SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

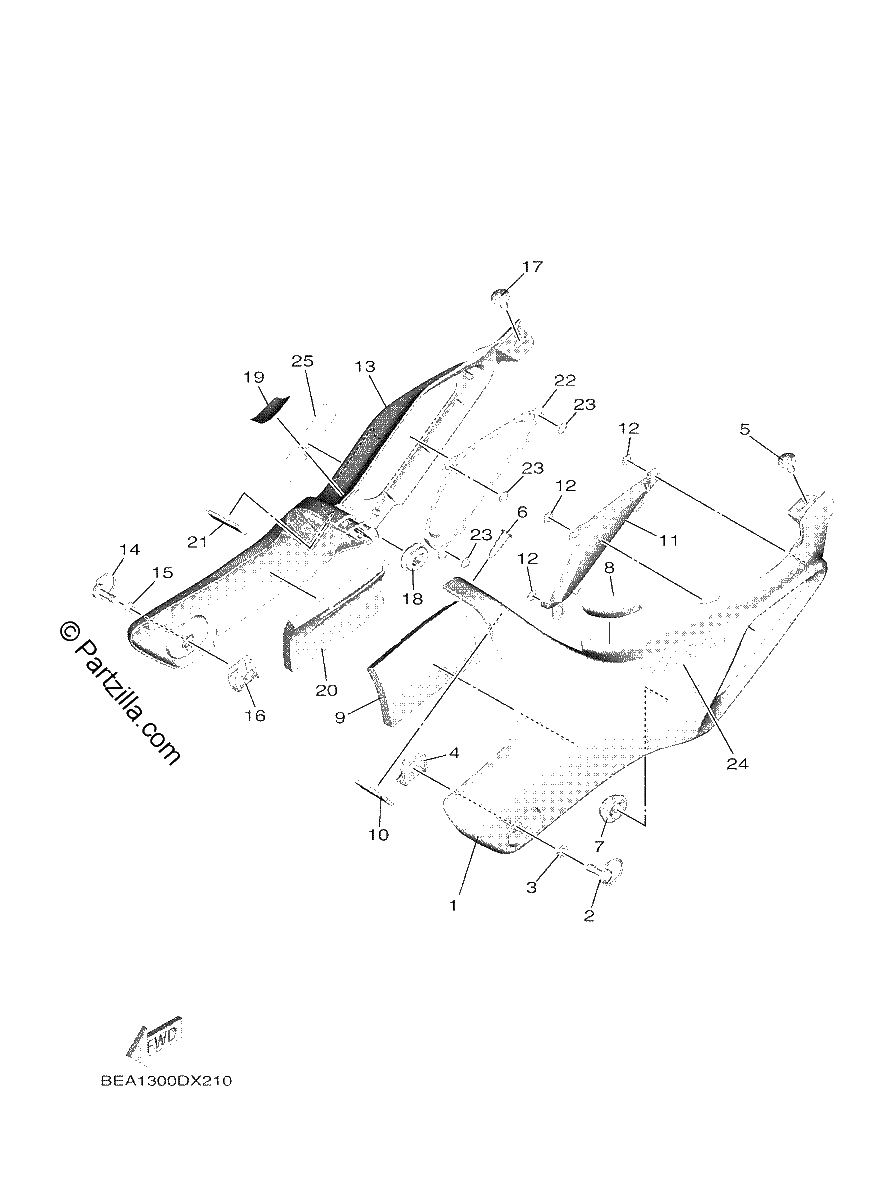

Diagrama de SIDE COVER

Repuestos

#1
BEA-21711-00-P0
COVER, SIDE 1 (BLUE METALLIC C) *{BMC}*
$141.15¢70 575
1
#2
8HG-28386-00-00
HEAD
$30.27¢15 134
1
#3
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#4
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#5
90269-06046-00
RIVET
$5.93¢2 967
1
#6
90269-07001-00
RIVET
$1.68¢839
1
#7
90480-01558-00
Grommet
$4.31¢2 156
1
#8
BEA-21732-00-00
SEAL 1
$14.81¢7 406
1
#9
90520-08010-00
DAMPER, PLATE
$3.66¢1 829
1
#10
2JX-24141-00-00
PROTECTOR, FUEL TANK
$6.99¢3 496
1
#11
BEA-2837V-00-00
GRILL, AIR OUTLET 1
$33.49¢16 744
1
#12
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#13
BEA-21721-00-P0
COVER, SIDE 2 (BLUE METALLIC C) *{BMC}*
$141.15¢70 575
1
#14
8HG-28386-00-00
HEAD
$30.27¢15 134
1
#15
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#16
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#17
90269-06046-00
RIVET
$5.93¢2 967
1
#18
90480-01558-00
Grommet
$4.31¢2 156
1
#19
BEA-21732-00-00
SEAL 1
$14.81¢7 406
1
#20
90520-08010-00
DAMPER, PLATE
$3.66¢1 829
1
#21
2JX-24141-00-00
PROTECTOR, FUEL TANK
$6.99¢3 496
1
#22
BEA-2837W-00-00
GRILL, AIR OUTLET 2
$33.49¢16 744
1
#23
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#24
BEA-21737-00-00
EMBLEM
$7.18¢3 588
1
#25
BEA-21737-00-00
EMBLEM
$7.18¢3 588
1
