FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

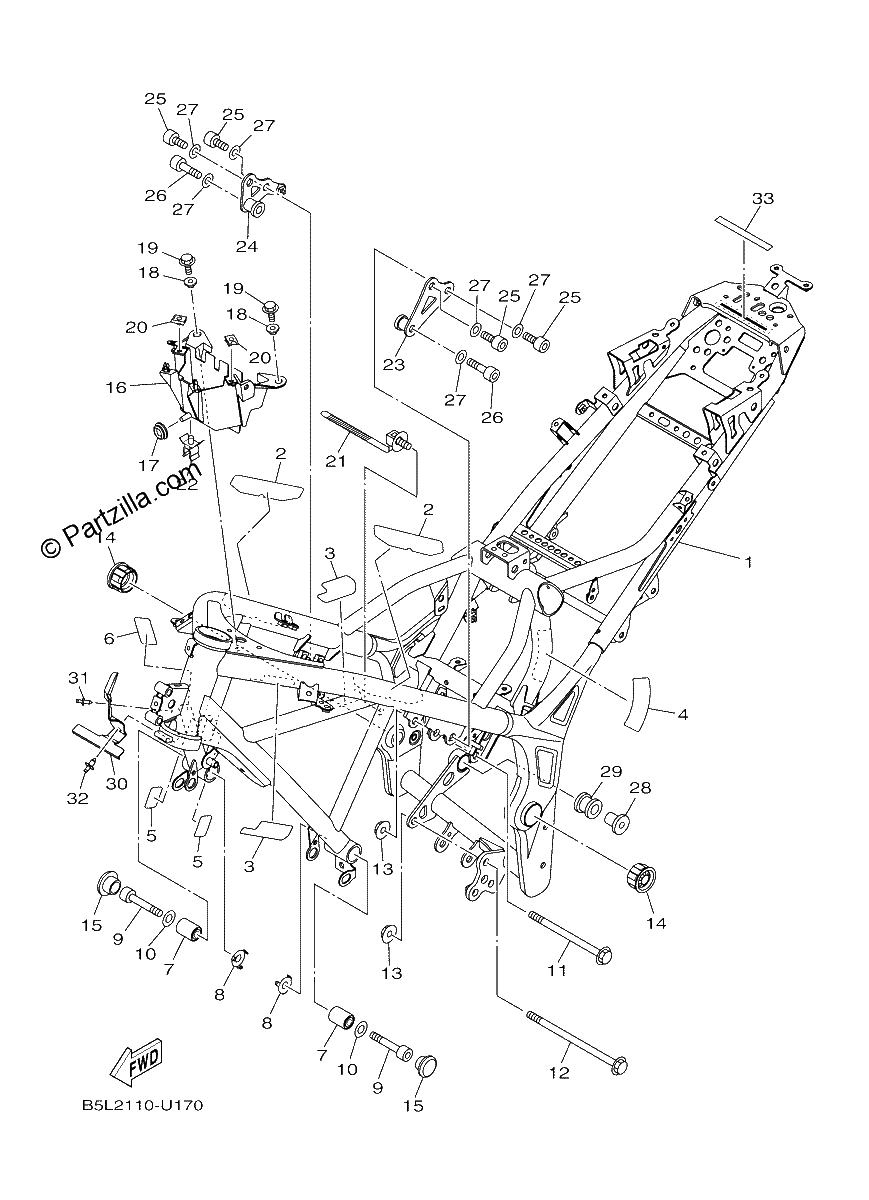

Diagrama de FRAME

Repuestos

#1
1WD-F1110-13-00
FRAME COMP. *{MBL2}*
$624.24¢312 122
1
#2
1WD-F112C-00-00
DAMPER 2
$3.83¢1 915
1
#3
1WD-F117G-00-00
PROTECTOR
$4.67¢2 335
1
#4
1WD-F1652-00-00
PROTECTOR
$4.05¢2 024
1
#5
1WD-F193A-00-00
PROTECTOR
$2.44¢1 219
1
#6
5D9-F414G-00-00
SEAL
$1.95¢977
1
#7
90388-10816-00
DAMPER (replaces 1WD-F2123-00-00)
$25.15¢12 575
1
#8
1WD-F191B-00-00
PLATE 1
$7.28¢3 640
1
#9
91317-10060-00
BOLT
$7.19¢3 594
1
#10
90201-10854-00
WASHER, PLATE
$0.94¢471
1
#11
90105-10889-00
BOLT, FLANGE
$5.30¢2 651
1
#12
90105-10891-00
BOLT, FLANGE
$6.13¢3 065
1
#13
90179-10805-00
NUT
$1.60¢799
1
#14
1WD-F135F-00-00
COVER
$2.71¢1 357
1
#15
90338-23801-00
PLUG
$1.22¢609
1
#16
1WD-F1171-00-00
BOX
$7.45¢3 726
1
#17
90480-13398-00
GROMMET
$7.51¢3 755
1
#18
90387-07819-00
COLLAR
$2.97¢1 483
1
#19
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#20
90183-06818-00
NUT, SPRING
$0.85¢426
1
#21
90464-30009-00
CLAMP
$3.58¢1 788
1
#22
90464-12015-00
CLAMP
$1.13¢564
1
#23
1WD-F122A-00-00
STAY 1
No Disponible
1
#24
1WD-F122B-00-00
STAY 2
$8.25¢4 123
1
#25
91317-10020-00
BOLT
$7.57¢3 783
1
#26
91317-10045-00
BOLT
$6.14¢3 070
1
#27
92907-10600-00
WASHER (6TA)
$6.76¢3 381
1
#28
90387-08813-00
COLLAR
$6.06¢3 030
1
#29
5TP-E4747-00-00
DAMPER, MUFFLER
$13.94¢6 969
1
#30
BS7-F612N-00-00
BRACKET 5
$12.55¢6 273
1
#31
90269-05008-00
RIVET
$2.78¢1 392
1
#32
90269-07007-00
RIVET
$3.68¢1 840
1
#33
2DS-F414E-00-00
SEAL 2
$5.58¢2 789
1
