SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

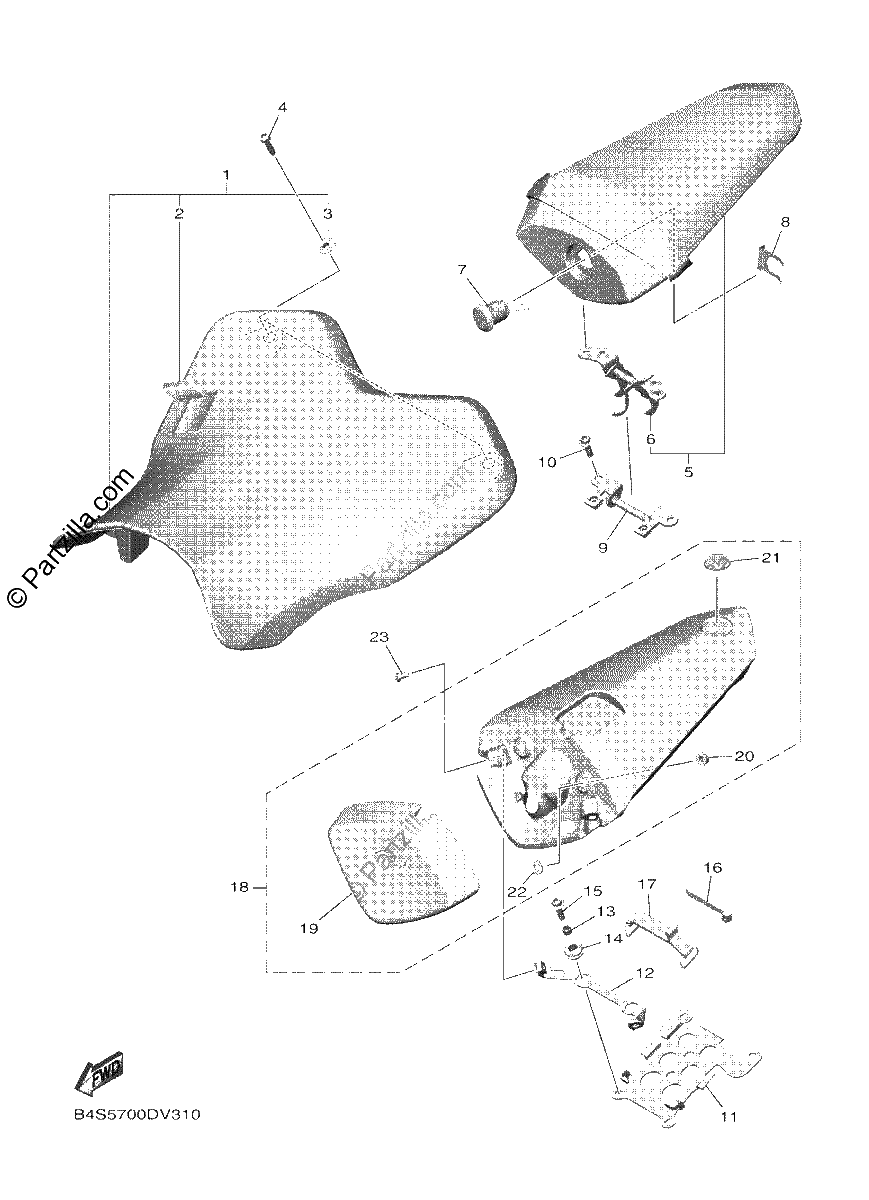

Diagrama de SEAT

Repuestos

#1
2CR-24710-01-00
SINGLE SEAT ASSY (replaces 2CR-24710-00-00)
$106.18¢53 090
1
#2
2CR-24711-01-00
. COVER, SINGLE SEAT
$61.77¢30 883
1
#3
90387-06066-00
Collar
$5.86¢2 932
1
#4
90110-06258-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 496
1
#5
2CR-24750-01-00
TANDEM SEAT ASSY (replaces 2CR-24750-00-00)
$124.92¢62 462
1
#6
2CR-2478R-00-00
SEAT LOCK COMP.
$38.43¢19 217
1
#7
2CR-W2470-00-00
ROTOR SET
$65.25¢32 625
1
#8
5VY-2176V-00-00
SPRING, LOCK 2
$9.82¢4 910
1
#9
2CR-2478X-00-00
BRACKET, SEAT LOCK
$19.14¢9 568
1
#10
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#11
2KS-2475U-00-00
BRACKET, TAIL COVER
$25.14¢12 569
1
#12
2KS-2475V-00-00
BRACKET, TAIL COVER 2
$20.00¢9 999
1
#13
90387-06023-00
COLLAR
$8.39¢4 198
1
#14
90480-12237-00
GROMMET
$2.14¢1 070
1
#15
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#16
1UA-82591-00-00
BAND
$4.52¢2 260
1
#17
55K-2811G-00-00
BAND
$16.07¢8 033
1
#18
2KS-2477A-00-00
SEAT COVER ASSY
$2141.29¢1 070 644
1
#19
2KS-24753-00-00
CUSHION
$222.43¢111 216
1
#20
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#21
8GC-2836B-02-00
TUNING FORK MARK
$39.61¢19 803
1
#22
90201-063A5-00
WASHER, PLATE
$7.79¢3 893
1
#23
90149-06250-00
SCREW
$6.21¢3 105
1
