FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

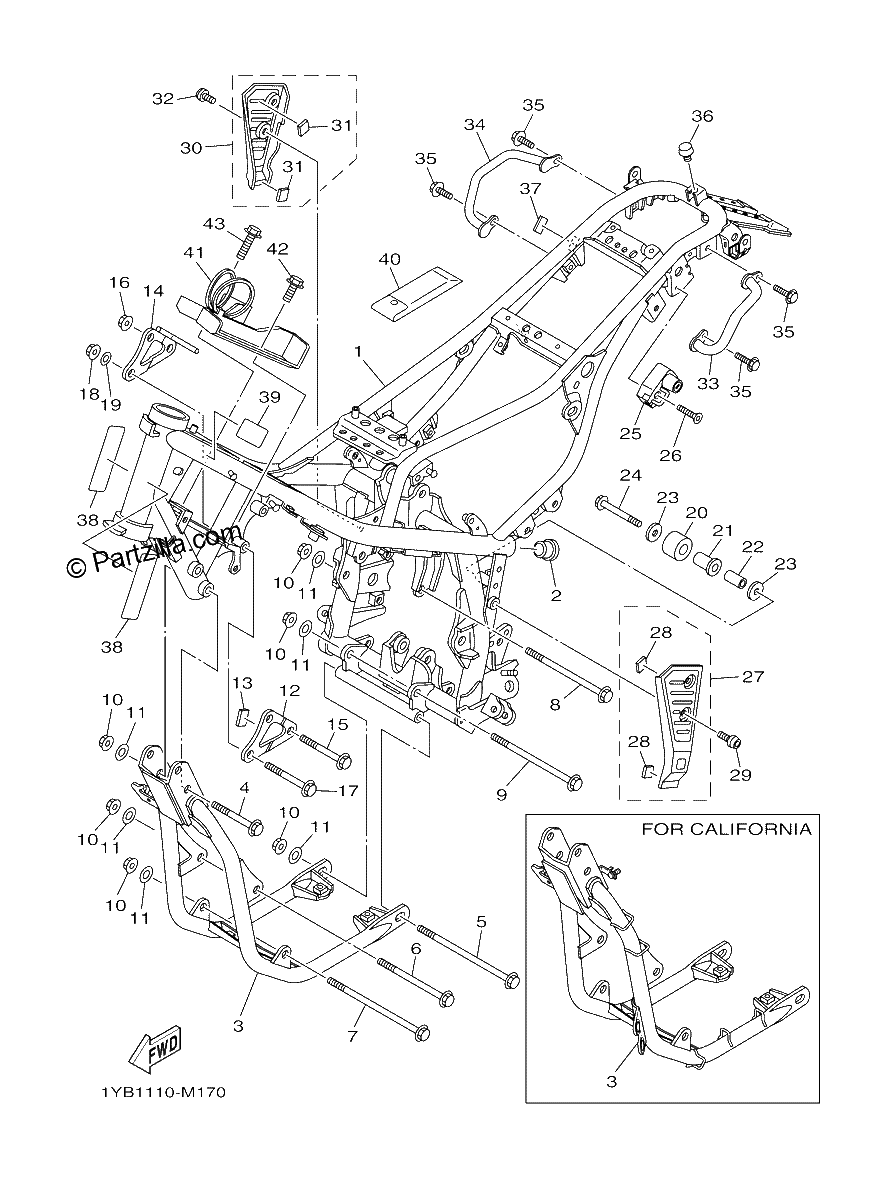

Diagrama de FRAME

Repuestos

#1
1YB-21110-00-00
FRAME COMP.
$1556.28¢778 142
1
#2
90338-26004-00
PLUG
$6.96¢3 479
1
#3
3C5-21140-10-00
DOWN TUBE COMP.
$369.56¢184 782
1
#4
90105-10788-00
BOLT,WASHER BASED
$8.28¢4 140
1
#5
90105-10300-00
BOLT,WASHER BASED
$10.55¢5 273
1
#6
90105-10220-00
Bolt, Flange
$9.98¢4 991
1
#7
90105-10403-00
Bolt, Flange
$9.17¢4 583
1
#8
90105-10219-00
Bolt, Flange
$6.29¢3 145
1
#9
90105-10214-00
Bolt, Flange
$9.95¢4 974
1
#10
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#11
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#12
3C5-21315-20-00
STAY, ENGINE 2
$13.67¢6 837
1
#13
51Y-21639-00-00
DAMPER 2
$5.93¢2 967
1
#14
3C5-21316-20-00
STAY, ENGINE 3
$20.32¢10 160
1
#15
90105-10281-00
Bolt, Flange
$14.85¢7 423
1
#16
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#17
90105-08102-00
Bolt, Flange
$5.07¢2 536
1
#18
90179-08674-00
NUT(4KM)
$6.23¢3 117
1
#19
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#20
10V-22178-00-00
TENSIONER
$7.23¢3 617
1
#21
10V-22184-00-00
Bush
$7.38¢3 691
1
#22
90387-08024-00
Collar
$6.92¢3 461
1
#23
90201-08753-00
WASHER, PLATE
$6.92¢3 461
1
#24
95022-08045-00
Bolt, Flange
$6.69¢3 347
1
#25
4R8-21308-01-00
HELMET HANGER ASSY
$80.04¢40 020
1
#26
90151-06018-00
SCREW, COUNTERSUNK
$7.58¢3 789
1
#27
3C5-2110M-01-00
COVER ASSY 1
$68.40¢34 201
1
#28
5XT-2139X-01-00
Damper
$3.82¢1 909
1
#29
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#30
3C5-2110N-01-00
COVER ASSY 2
$93.12¢46 558
1
#31
5XT-2139X-01-00
Damper
$3.82¢1 909
1
#32
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#33
3C5-21165-00-00
HANDLE, STANDING
$56.04¢28 020
1
#34
3C5-21275-00-00
STAY, REAR
$51.32¢25 662
1
#35
95802-08016-00
BOLT, FLANGE
$7.30¢3 651
1
#36
5RU-24768-00-00
Stopper
$7.54¢3 772
1
#37
22F-21746-01-00
DAMPER
No Disponible
1
#38
5XT-21268-00-00
SEAL
$6.67¢3 335
1
#39
32C-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$8.35¢4 174
1
#40
3C5-28100-00-00
Tool Kit
$56.07¢28 037
1
#41
5XT-21107-01-00
TOOL BOX COMP.
$24.56¢12 282
1
#42
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#43
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
