FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

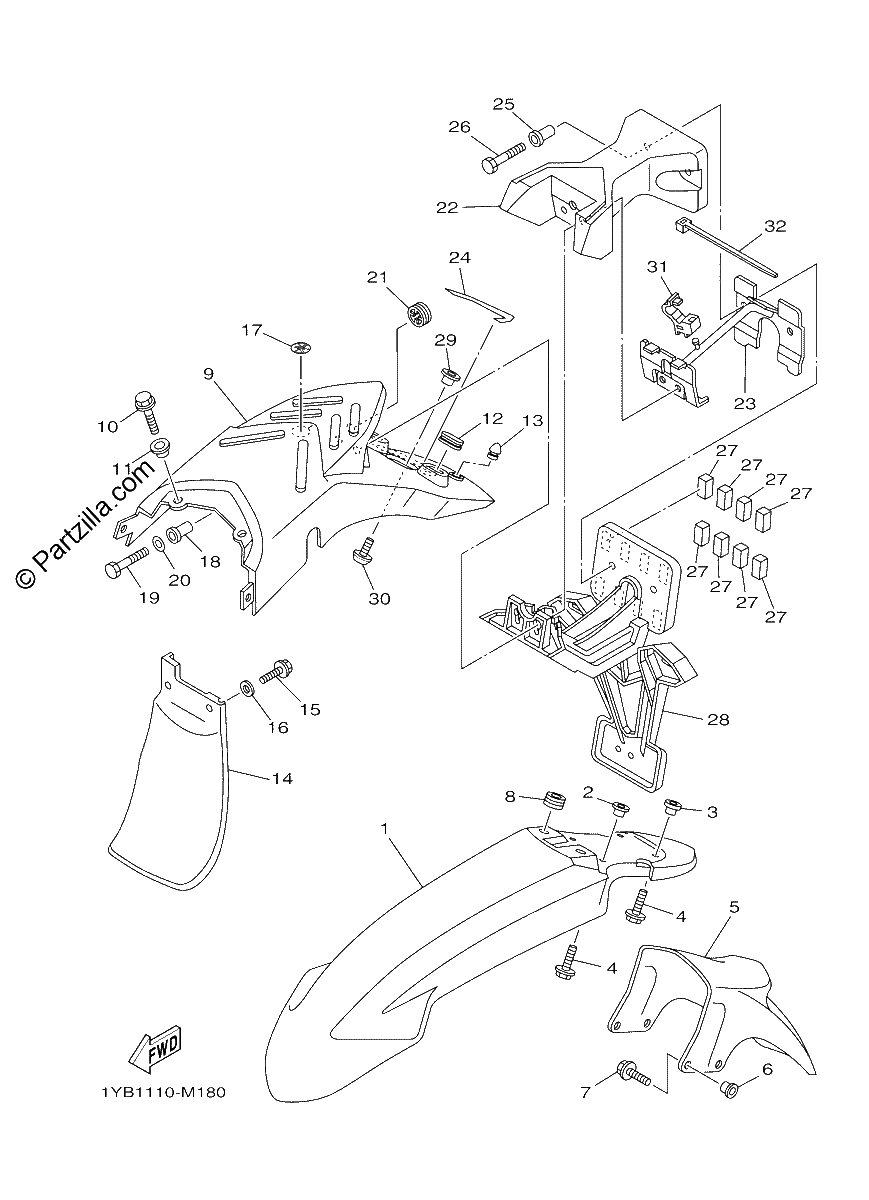

Diagrama de FENDER

Repuestos

#1
3C5-21511-70-00
FENDER, FRONT
$33.09¢16 544
1
#2
90387-06681-00
COLLAR
$7.88¢3 938
1
#3
90387-06117-00
COLLAR
$8.79¢4 394
1
#4
90119-06147-00
BOLT, WITH WASHER
$0.85¢425
1
#5
3C5-21556-00-00
FENDER, FRONT 2
$22.69¢11 344
1
#6
90387-06681-00
COLLAR
$7.88¢3 938
1
#7
90119-06147-00
BOLT, WITH WASHER
$0.85¢425
1
#8
90480-13398-00
GROMMET
$8.16¢4 081
1
#9
3C5-21611-00-00
Fender, rear
$54.49¢27 244
1
#10
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#11
90387-06107-00
COLLAR
$8.39¢4 194
1
#12
3C5-2163A-00-00
COVER, REAR FENDER 1
$8.22¢4 113
1
#13
90338-07018-00
PLUG
$6.91¢3 456
1
#14
5XT-21642-02-00
GUARD, FLAP
$44.97¢22 487
1
#15
95802-06016-00
Bolt, Flange
$1.79¢894
1
#16
90201-06055-00
WASHER, PLATE
$3.50¢1 750
1
#17
3C5-2411B-00-00
EMBLEM
$7.08¢3 538
1
#18
90387-0602Y-00
COLLAR
$9.15¢4 575
1
#19
97002-06030-00
BOLT
$3.57¢1 787
1
#20
92902-06600-00
WASHER, plate
$3.40¢1 700
1
#21
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#22
3C5-84527-10-00
DAMPER
$98.10¢49 050
1
#23
3C5-2161A-00-00
BRACKET 3
$160.25¢80 125
1
#24
3C5-21652-00-00
PROTECTOR
$14.70¢7 350
1
#25
90387-06M21-00
COLLAR
$9.28¢4 638
1
#26
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#27
4D9-28415-00-00
DAMPER 1
$5.66¢2 831
1
#28
3C5-84551-00-00
BRACKET, LICENCE
$158.57¢79 288
1
#29
3C5-21634-00-00
COLLAR 2
$8.24¢4 119
1
#30
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
#31
90464-05188-00
CLAMP
$3.65¢1 825
1
#32
5Y9-12491-00-00
CLAMP 1
$7.86¢3 931
1
