ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

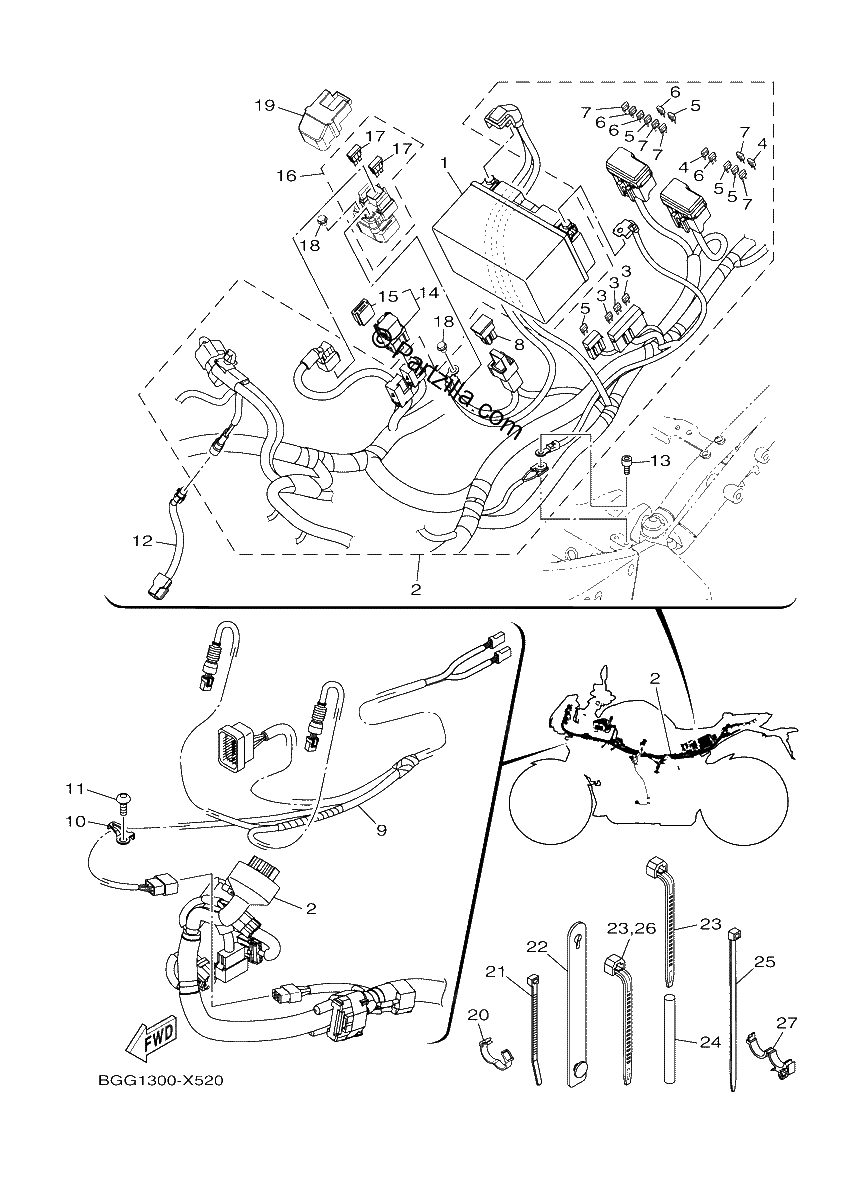

Diagrama de ELECTRICAL 2

Repuestos

#1
5VY-82100-01-00
BATTERY ASSY (YUASA YTZ10S)
$323.56¢161 781
1
#2
BGG-82590-10-00
WIRE HARNESS ASSY
$1794.99¢897 494
1
#3
5JJ-82151-A0-00
FUSE (1A-BL)
$3.89¢1 944
1
#4
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#5
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#6
5JJ-82151-30-00
. FUSE (10A-BL)
$8.24¢4 119
1
#7
5JJ-82151-10-00
. FUSE (15A-BL)
$4.44¢2 219
1
#8
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#9
BGG-82509-00-00
WIRE, SUB LEAD
$211.21¢105 606
1
#10
2CR-2627E-00-00
CLAMP, WIRE
$6.66¢3 331
1
#11
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#12
B67-82309-00-00
WIRE, SUB LEAD
$18.10¢9 050
1
#13
91312-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#14
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#15
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#16
2CR-81940-00-00
STARTER RELAY ASSY
$63.35¢31 675
1
#17
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#18
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#19
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#20
90464-16003-00
CLAMP
$7.46¢3 731
1
#21
90465-10098-00
CLAMP
$2.78¢1 388
1
#22
B5U-82591-00-00
BAND
$4.94¢2 469
1
#23
90464-13073-00
Clamp
$3.30¢1 650
1
#24
90445-09132-00
HOSE
$4.94¢2 469
1
#25
90464-16061-00
BAND
$8.35¢4 175
1
#26
90464-13077-00
CLAMP
$7.94¢3 969
1
#27
90464-16006-00
CLAMP
$9.91¢4 956
1
