FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

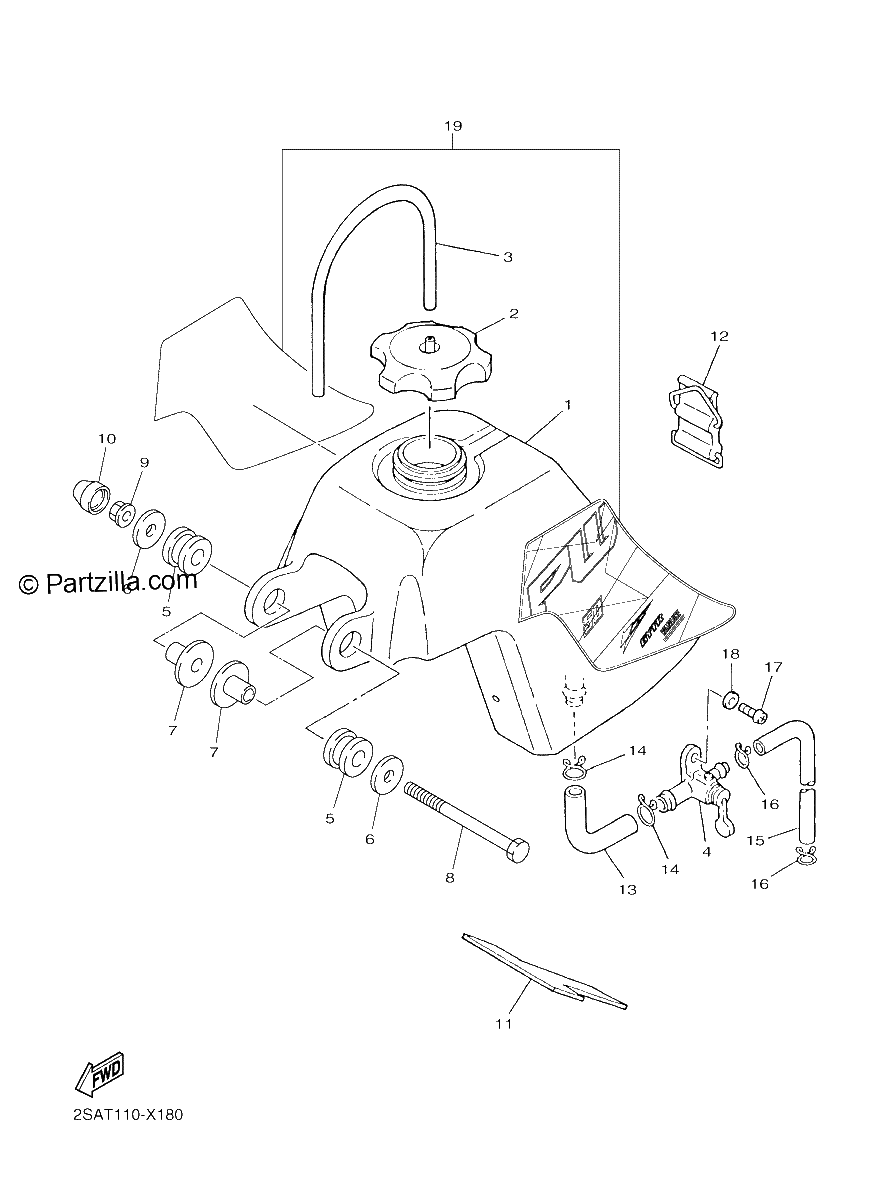

Diagrama de FUEL TANK

Repuestos

#1
5PG-24110-00-00
FUEL TANK COMP.
$269.24¢134 619
1
#2
2FG-24610-10-00
CAP ASSY
$62.89¢31 447
1
#3
90445-09005-00
HOSE
$12.04¢6 020
1
#4
4X4-24500-11-00
FUEL COCK ASSY 1
$28.70¢14 352
1
#5
90480-18290-00
Grommet
$7.67¢3 835
1
#6
90201-06747-00
WASHER, PLATE
$6.75¢3 375
1
#7
90387-077F4-00
COLLAR
$8.69¢4 347
1
#8
97007-06090-00
BOLT
$2.51¢1 254
1
#9
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#10
5PG-2467E-00-00
CAP
$7.54¢3 772
1
#11
3R0-24181-00-00
DAMPER, LOCATING 1
$7.30¢3 651
1
#12
59V-24173-00-00
BAND, TANK FITTING 1
$17.39¢8 694
1
#13
5PG-24311-00-00
PIPE, FUEL 1
$24.48¢12 242
1
#14
90467-12052-00
CLIP
$7.19¢3 594
1
#15
90445-09028-00
HOSE
$23.63¢11 816
1
#16
90467-08003-00
CLIP
$6.90¢3 450
1
#17
98507-06010-00
SCREW, PAN HEAD
$2.96¢1 478
1
#18
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#19
2SA-24240-80-00
GRAPHIC SET
$104.58¢52 290
1
