HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

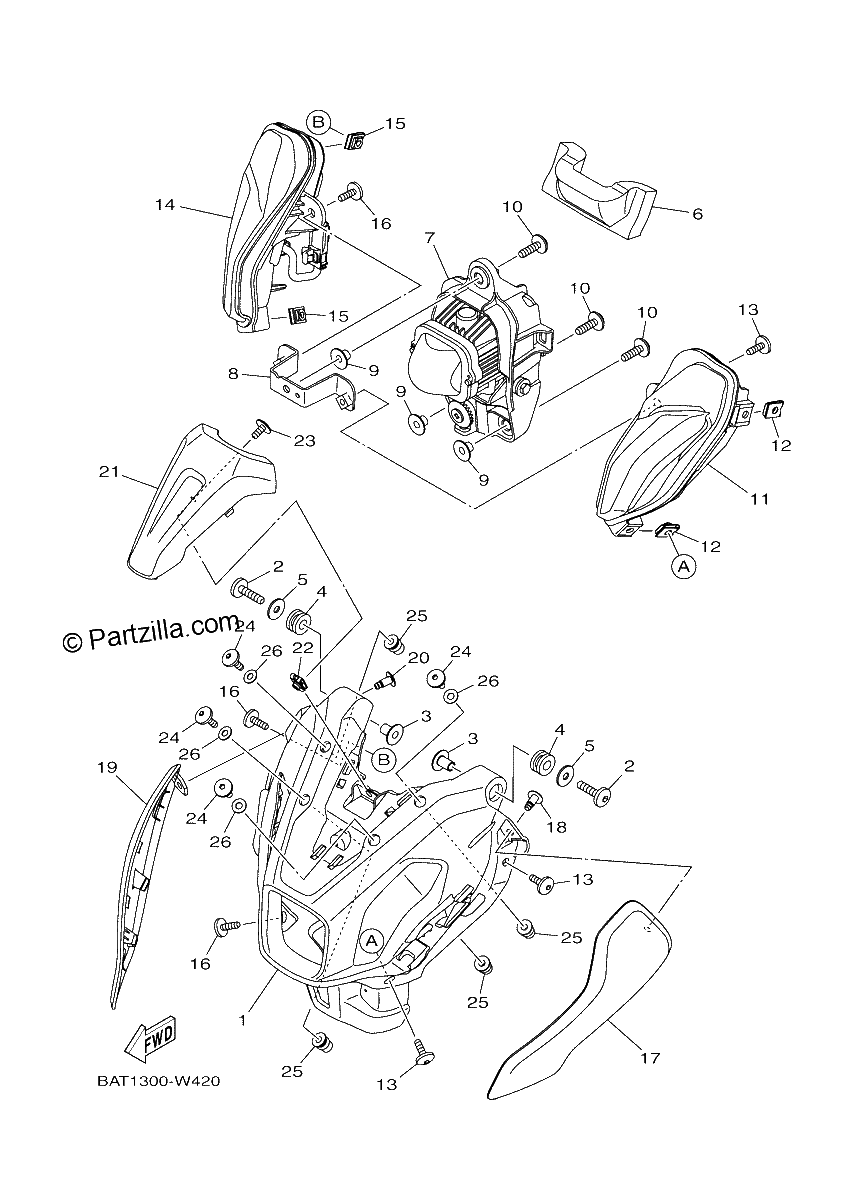

Diagrama de HEADLIGHT

Repuestos

#1
BAT-2838E-00-00
COVER, HEADLIGHT
$44.37¢22 184
1
#2
90111-06172-00
BOLT, HEX. SOCKET BUTTON
$2.74¢1 368
1
#3
90387-06301-00
COLLAR
$4.09¢2 047
1
#4
90480-12015-00
GROMMET
$1.74¢868
1
#5
90201-06029-00
WASHER, PLATE
$5.09¢2 547
1
#6
90520-20017-00
DAMPER, PLATE
$6.96¢3 479
1
#7
BAT-84300-00-00
HEADLIGHT ASSY
$609.15¢304 578
1
#8
BAT-84703-00-00
BRACKET
$9.12¢4 560
1
#9
90387-06354-00
COLLAR
$4.51¢2 254
1
#10
90119-06193-00
BOLT, WITH WASHER
$6.75¢3 375
1
#11
BAT-84301-00-00
PILOT LIGHT ASSY 1
$227.08¢113 539
1
#12
90183-051A4-00
NUT, SPRING
$9.99¢4 997
1
#13
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$2.93¢1 466
1
#14
BAT-84302-00-00
PILOT LIGHT ASSY 2
$187.06¢93 529
1
#15
90183-051A4-00
NUT, SPRING
$9.99¢4 997
1
#16
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$2.93¢1 466
1
#17
BAT-2838D-00-P1
COVER, HEADLIGHT 1
$44.37¢22 184
1
#18
90269-06019-00
RIVET
$3.19¢1 593
1
#19
BAT-2838S-00-P1
COVER, HEADLIGHT 2
$45.23¢22 615
1
#20
90269-06019-00
RIVET
$3.19¢1 593
1
#21
BAT-84369-00-00
COVER 1
$8.03¢4 013
1
#22
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#23
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#24
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$2.93¢1 466
1
#25
90179-05523-00
NUT
$6.23¢3 117
1
#26
92907-05200-00
WASHER
$4.48¢2 242
1
