WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

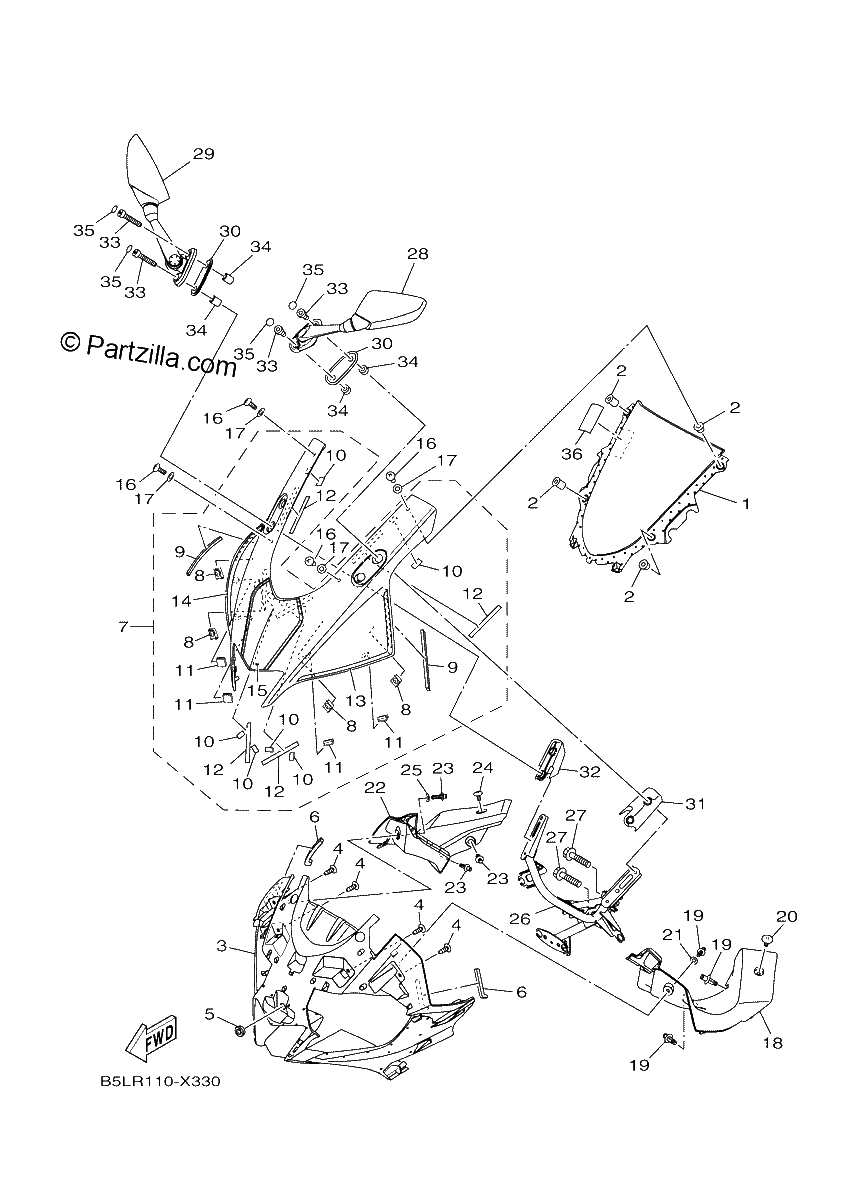

Diagrama de WINDSHIELD

Repuestos

#1
BS7-F8381-00-00
Windshield
$47.27¢23 638
1
#2
90179-05849-00
NUT
$6.78¢3 388
1
#3
BS7-F835G-00-00
BODY, FRONT UPPER 1
$87.00¢43 500
1
#4
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#5
90480-13398-00
GROMMET
$8.16¢4 081
1
#6
90520-07808-00
DAMPER, PLATE
$0.43¢213
1
#7
BS7-XF83F-00-GE
BODY COWLING SUB ASSY
$109.92¢54 963
1
#8
90183-05807-00
NUT, SPRING
$1.25¢625
1
#9
90520-07808-00
DAMPER, PLATE
$0.43¢213
1
#10
31B-F8307-00-00
SEAL
$2.65¢1 325
1
#11
1WD-F8376-00-00
TRIM
$2.95¢1 475
1
#12
1WD-F414E-00-00
SEAL 2
$2.95¢1 475
1
#13
B5P-F8391-10-00
. GRAPHIC 1
$9.74¢4 869
1
#14
B5P-F8392-10-00
. GRAPHIC 2
$9.74¢4 869
1
#15
B5P-F8393-20-00
. GRAPHIC 3
$13.46¢6 731
1
#16
90150-05023-00
SCREW,ROUND HEAD
$3.33¢1 663
1
#17
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#18
BS7-F836N-00-00
PANEL, INNER 4
$11.81¢5 906
1
#19
90269-06816-00
RIVET
$1.71¢856
1
#20
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#21
BS7-F8327-00-00
DAMPER, LEG SHIELD
$0.30¢150
1
#22
BS7-F836R-00-00
PANEL, INNER 5
$9.91¢4 956
1
#23
90269-06816-00
RIVET
$1.71¢856
1
#24
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#25
BS7-F8327-00-00
DAMPER, LEG SHIELD
$0.30¢150
1
#26
BS7-F8356-00-00
STAY 1
$50.11¢25 056
1
#27
95812-08035-00
Bolt, Flange
$7.94¢3 969
1
#28
BS7-F6280-00-00
REAR VIEW MIRROR ASSY (LEFT)
$64.30¢32 150
1
#29
BS7-F6290-00-00
REAR VIEW MIRROR ASSY (RIGHT)
$117.49¢58 744
1
#30
BK6-F8483-00-00
PLATE, RUBBER 1 (BK61)
$1.31¢656
1
#31
BS7-F8484-00-00
PLATE, RUBBER 2
$17.27¢8 638
1
#32
BS7-F8485-00-00
PLATE, RUBBER 3
$6.66¢3 331
1
#33
91317-06030-00
BOLT,HEX.SOCKET HEAD
$3.94¢1 969
1
#34
90387-06131-00
COLLAR
$7.43¢3 713
1
#35
20P-F3469-00-00
CAP, BOLT
$3.11¢1 556
1
#36
1WD-F815K-10-00
LABEL, NOTICE WINDSHIELD 1
$1.29¢644
1
