INTAKE 1 FOR U49

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

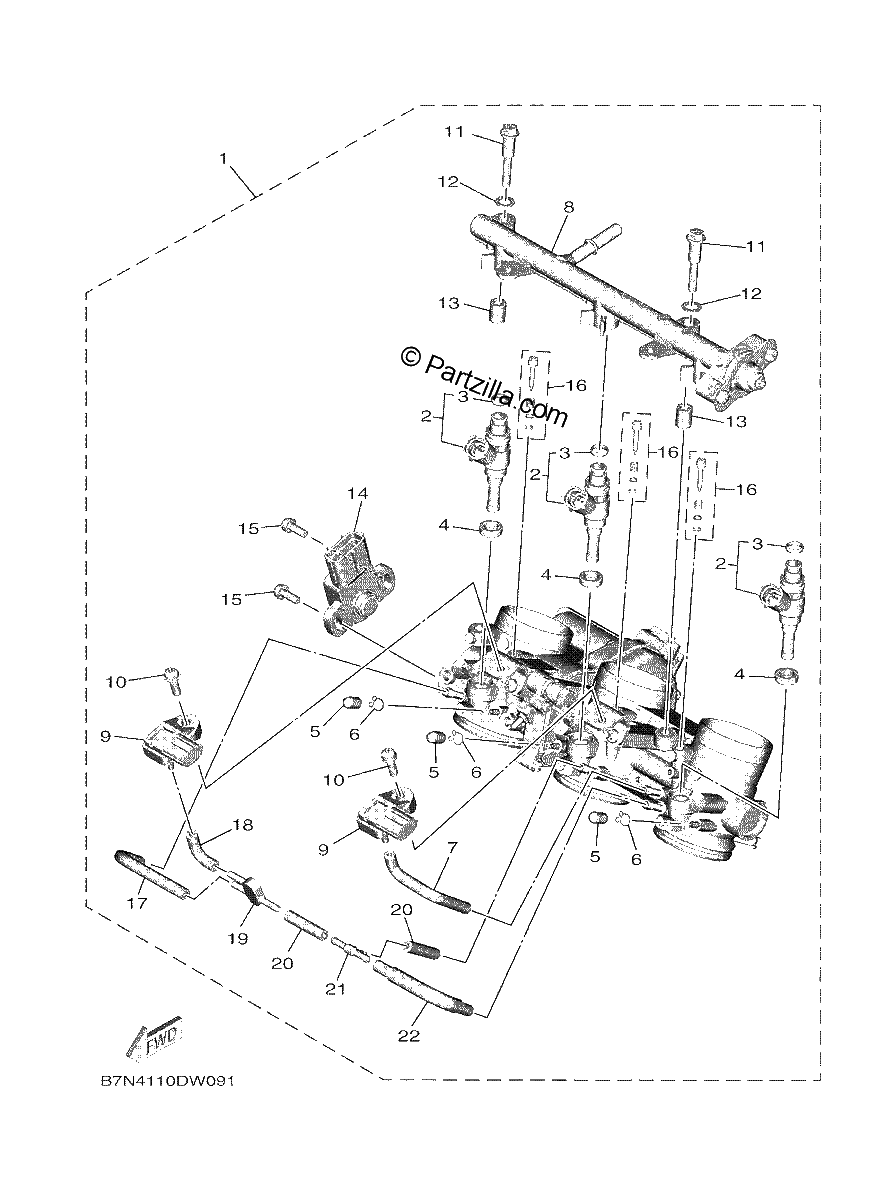

Diagrama de INTAKE 1 FOR U49

Repuestos

#1
B7N-13750-11-00
THROTTLE BODY ASSY
$1459.34¢729 669
1
#2
B7N-13761-00-00
. INJECTOR
$97.62¢48 812
1
#3
5PS-14147-00-00
O-RING
$10.20¢5 100
1
#4
8FP-13556-00-00
RUBBER, INJECTOR
$13.48¢6 739
1
#5
895-14169-00-00
CAP
$4.38¢2 191
1
#6
8A7-14139-00-00
CLIP, PIPE
$7.44¢3 720
1
#7
68V-13533-00-00
HOSE, VACUUM SENSING 4
$12.37¢6 187
1
#8
B7N-13930-00-00
. PIPE INLET ASSEMBLY
$237.96¢118 979
1
#9
1WS-82380-00-00
Sensor, Pressure
$187.39¢93 696
1
#10
2C0-14216-00-00
SCREW
$3.43¢1 713
1
#11
8HG-13573-00-00
BOLT 1
$11.09¢5 543
1
#12
8GL-13571-00-00
WASHER
$3.68¢1 840
1
#13
8HG-14534-00-00
Collar
$30.60¢15 301
1
#14
B3L-85885-01-00
THROTTLE SENSOR ASSY
$103.53¢51 767
1
#15
8CC-14216-10-00
SCREW
$7.82¢3 910
1
#16
2C0-14105-00-00
PILOT SCREW SET
$34.60¢17 302
1
#17
5FL-14348-00-00
. PIPE 1
$18.62¢9 309
1
#18
8FP-14349-00-00
PIPE
$11.10¢5 549
1
#19
3XV-14251-00-00
NIPPLE
$27.53¢13 766
1
#20
5FL-14348-10-00
PIPE 1
$4.53¢2 266
1
#21
68V-24376-00-00
PIPE, JOINT 1
$15.96¢7 981
1
#22
B7N-13542-00-00
. HOSE, VACUUM SENSING 1
$16.71¢8 355
1
